Manual Rotation Stage, Steel, 46 mm Diameter, 23 mm Height, 4° Fine, M4 & M6

  • Coarse Travel
    360°
  • Fine Travel
  • Diameter
    46 mm
  • Height
    23 mm
  • Load Capacity
    30 N
  • Sensitivity
    6 arc sec
  • Thread Type
    M4 and M6
  • Material
    Steel
  • Graduations
  • Vernier
    30 arc min
  • Maximum Drive Torque
    0.65 Nm
  • Maximum Reverse Drive Torque
    0.2 Nm
  • Resolution
    0.5°
  • Transverse Stiffness
    130 µrad/Nm
  • Wobble
    ±100 µrad
  • Weight
    0.3 kg
  • Included Actuators
    Adjustment Screw

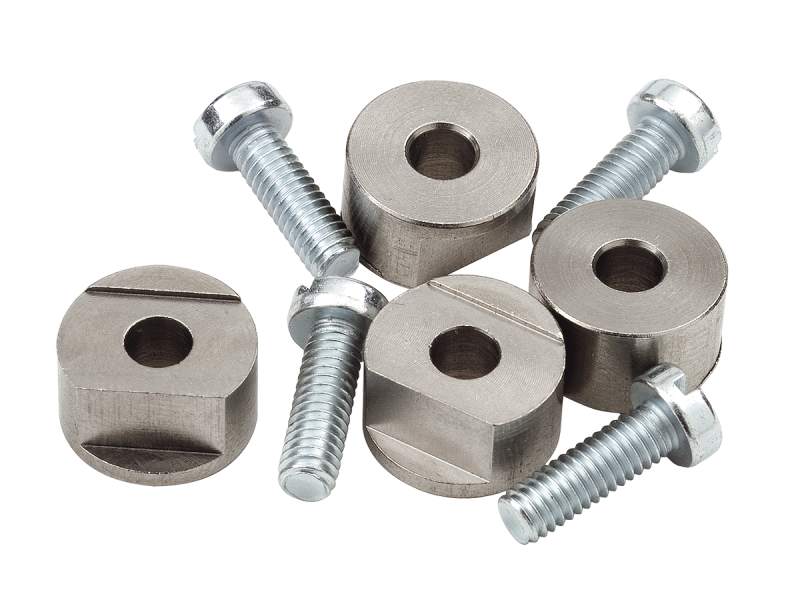

  • Included Bridles
    M-BR32
