Overview

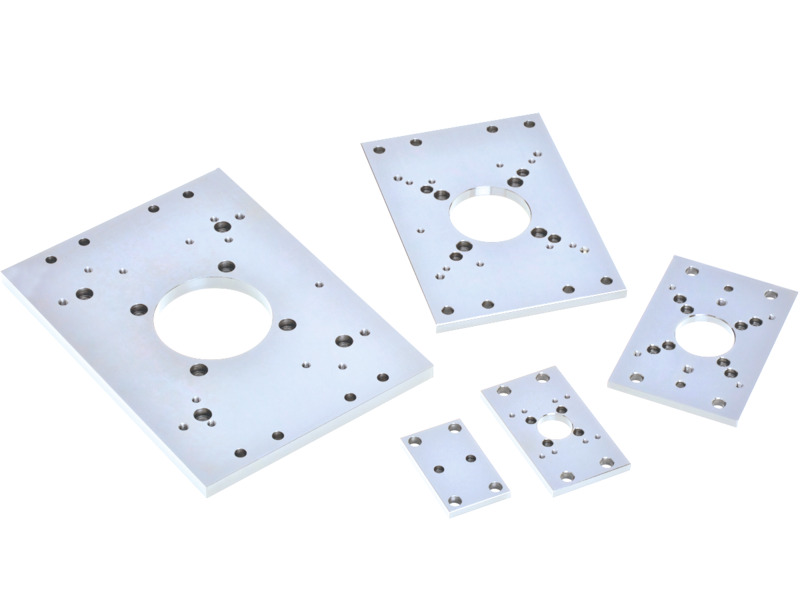

PBN Series steel base plates are used to connect stages with bottom-surface mounting holes to support structures that are inaccessible from below, such as breadboards and optical tables. An array of tapped and countersunk clearance holes is designed to for compatibility of this baseplate family with a number of different stages, including UMR linear stages, UTR rotation stages, and MVN vertical stages.

Adapts translation stages with bottom-surface mounting holes for optical tables
Compatible with UMR, MVN, and UTR stages
Solid steel construction

See All Features

Products

Compare	Model	Compatibility	rankScore		Type	Availability	Price	Brand
M-PBN3 Base Plate, Used with UMR3.5 Linear Stage $74 In Stock	M-PBN3 Base Plate, Used with UMR3.5 Linear Stage	UNIVERSAL	1.0	1.0	Base Plate	In Stock	$74	Newport
M-PBN5 Base Plate, Used with UMR5 Series, MVN50 & UTR46 Series $90 In Stock	M-PBN5 Base Plate, Used with UMR5 Series, MVN50 & UTR46 Series	UNIVERSAL	1.0	2.0	Base Plate	In Stock	$90	Newport
M-PBN8 Base Plate, Used with UMR8 Series, MVN80 & UTR80 Series $118 In Stock	M-PBN8 Base Plate, Used with UMR8 Series, MVN80 & UTR80 Series	UNIVERSAL	1.0	3.0	Base Plate	In Stock	$118	Newport
M-PBN12 Base Plate, Used with UMR12 Series, MVN120 & UTR120 Series $147 In Stock	M-PBN12 Base Plate, Used with UMR12 Series, MVN120 & UTR120 Series	UNIVERSAL	1.0	4.0	Base Plate	In Stock	$147	Newport
M-PBN16 Base Plate, PBN Series, Use with UTR160 Series Rotation Stages $216 Contact Us	M-PBN16 Base Plate, PBN Series, Use with UTR160 Series Rotation Stages	UNIVERSAL	1.0	5.0	Base Plate	Contact Us	$216	Newport

Show All

Features

Solid Steel for Robust Translation Stage Mounting

Base plates in this series are single pieces of solid steel, from which arrays of tapped and countersunk clearance holes are machined to provide their specific compatibility with the intended positioners.

UMR Series Linear Stages

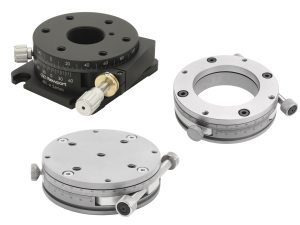

UTR Series Rotation Stages

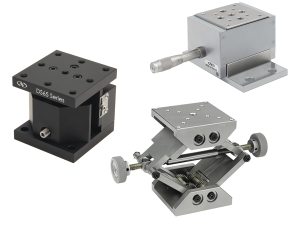

MVN Series Vertical Stages

UMR8.25 assembly shown with M-PBN base plate

Wide Variety of Base Plates

In general, the final number in the base plate product names indicate the size of the compatible stages or components. For example, M-PBN5 mounts to UMR5, MVN50, and UTR46 Series stages. These base plates are offered in metric versions only, but are compatible with both English and metric models. Model M-PBN12 is compatible with UMR12, MVN120, and UTR120 Series stages and Model M-PBN16 mounts to UTR160 Series Stages. Model M-PBN3 base plates mount to UMR3.5 stages. M-PBN5 is compatible with UMR5, MVN50, and UTR46 stages, and M-PBN8 with UMR8, MVN80 & UTR80 Series stages.
