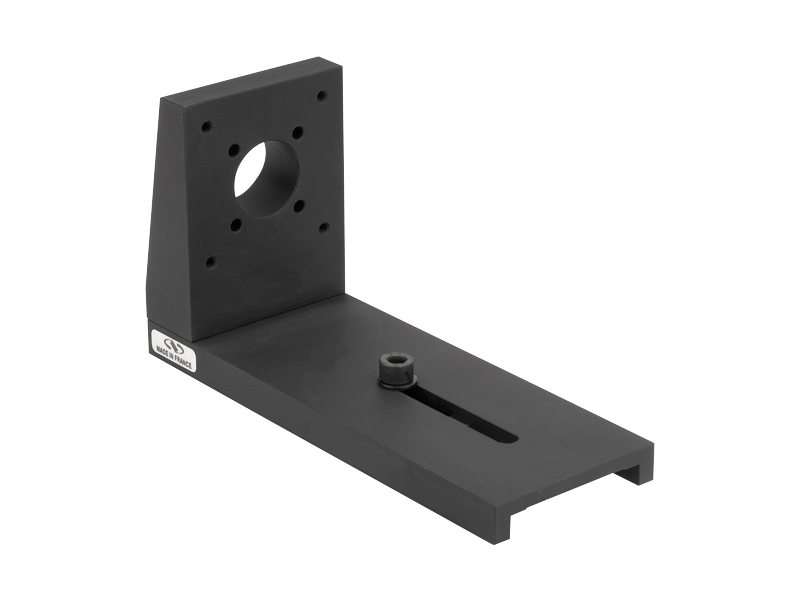

90 degree Angle Bracket, Adjustable, EQ5.03

Model: 338233

$366

In Stock

Compare

Add to List

Product Series Overview

Adjustable 90 Degree Angle Brackets, EQ Series

The 338233 EQ5 Series Adjustable Bracket allows one arm of an angle bracket to vary in length. This can be useful to adjust the center of rotation of a UMR linear or UTR rotation stage mounted orthogonal to a UTR stage. It is also beneficial to simply adjust the length of one arm of a UMR or UTR stage mounted orthogonal to a UMR stage. Made of aluminum, this metric bracket is compatible with UMR5 and UTR50 Series stages and has a 0.7 lb. (0.3 kg) load capacity.

Specifications

Technical Specs

Type

90° Adjustable Angle Bracket
Material

Anodized Aluminum
Use

UMR5 and UTR50 Stages

Weight

0.3 kg

Type

90° Adjustable Angle Bracket
Material

Anodized Aluminum
Use

UMR5 and UTR50 Stages

Weight

0.3 kg

Resources & Downloads

Other

338233 RoHS Certificate (279.7 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

338233.pdf (68.3 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	In Stock	$37
AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	In Stock	$18.90
SK-25A Black Oxide Screw Kit, 1/4-20, Assortment, Qty 261	UNIVERSAL	In Stock	$70

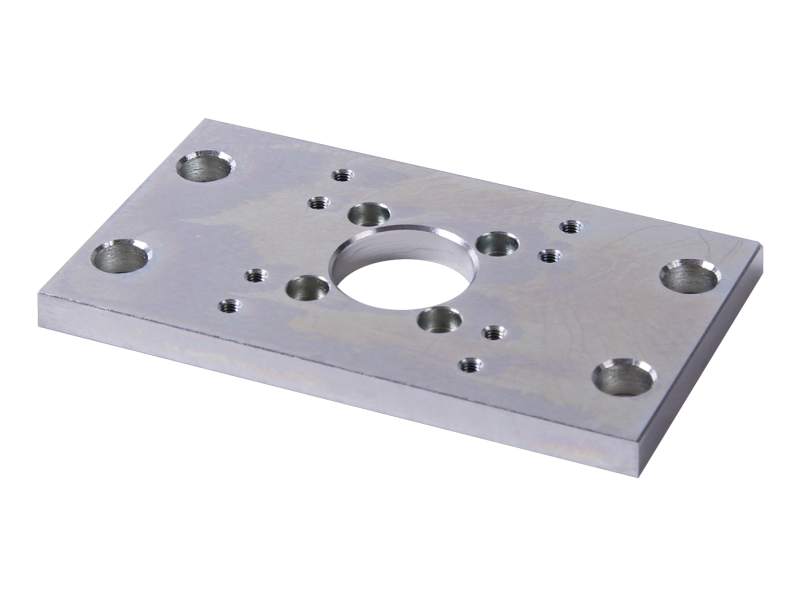

M-PBN5 Base Plate, Used with UMR5 Series, MVN50 & UTR46 Series	UNIVERSAL	In Stock	$87

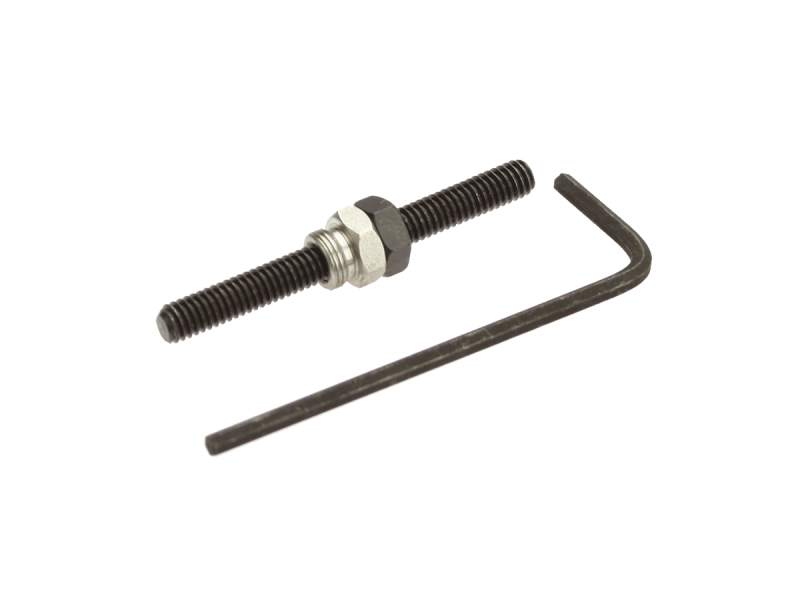

CL6-25 Carriage Lock, UMR5.25	UNIVERSAL	In Stock	$42

Similar

Description	Compatibility	Avail.	Price
X48-1 Optical Rail, Aluminum, 1000 mm Length, M4 Threads, X48 Series	UNIVERSAL	In Stock	$345
338235 90 degree Angle Bracket, Adjustable, EQ120.03	UNIVERSAL	Contact Us	$517
338233 90 degree Angle Bracket, Adjustable, EQ5.03	UNIVERSAL	In Stock	$366

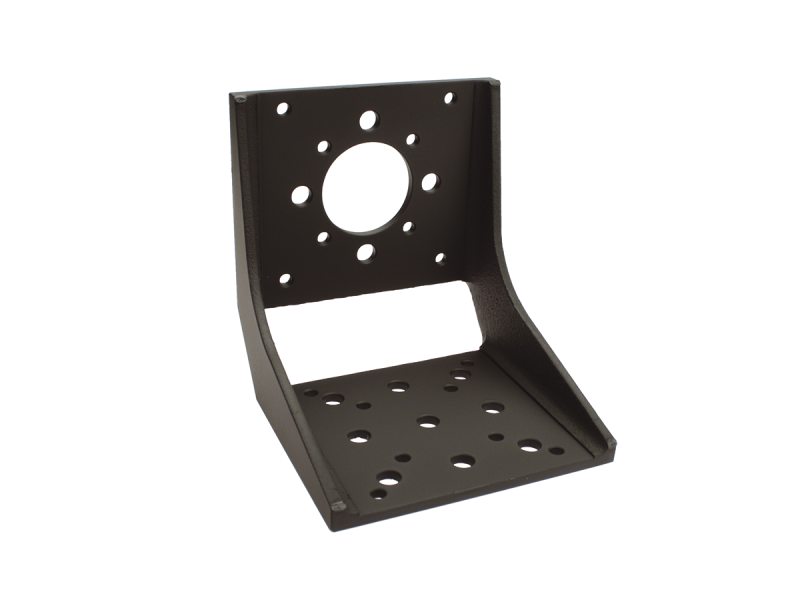

EQ80-E Outer Bracket, Compatible with 80 mm Stages	UNIVERSAL	In Stock	$156
338234 90 degree Angle Bracket, Adjustable, EQ8.03	UNIVERSAL	In Stock	$444

Compatible

Description	Compatibility	Avail.	Price

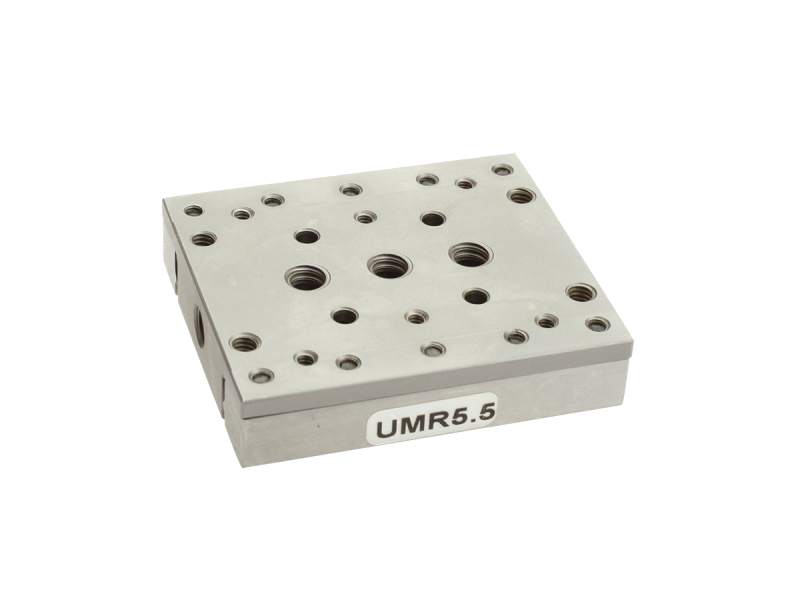

UMR5.16 Linear Stage, Double-Row Ball Bearings, 0.63 in., 4-40, 8-32 and 1/4-20	IMPERIAL	In Stock	$327
UMR5.25 Linear Stage, Double-Row Ball Bearings, 0.98 in., 4-40, 8-32 and 1/4-20	IMPERIAL	In Stock	$447
UMR5.5 Linear Stage, Double-Row Ball Bearings, 0.20 in., 4-40, 8-32 and 1/4-20	IMPERIAL	In Stock	$447

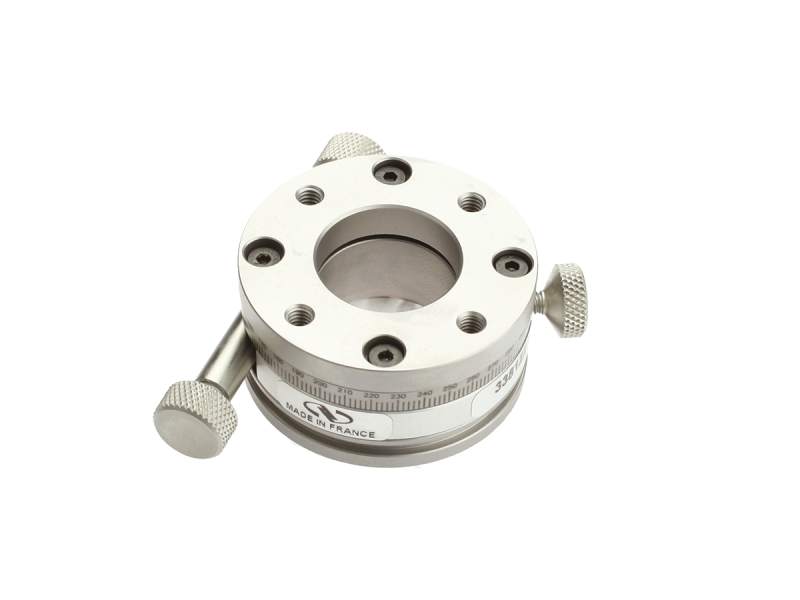

UTR46SA Manual Rotation Stage, Low-Profile, 0.87 in. Aperture, 1.81 in. Diameter, 4° Fine, 8-32	IMPERIAL	In Stock	$876
