Overview

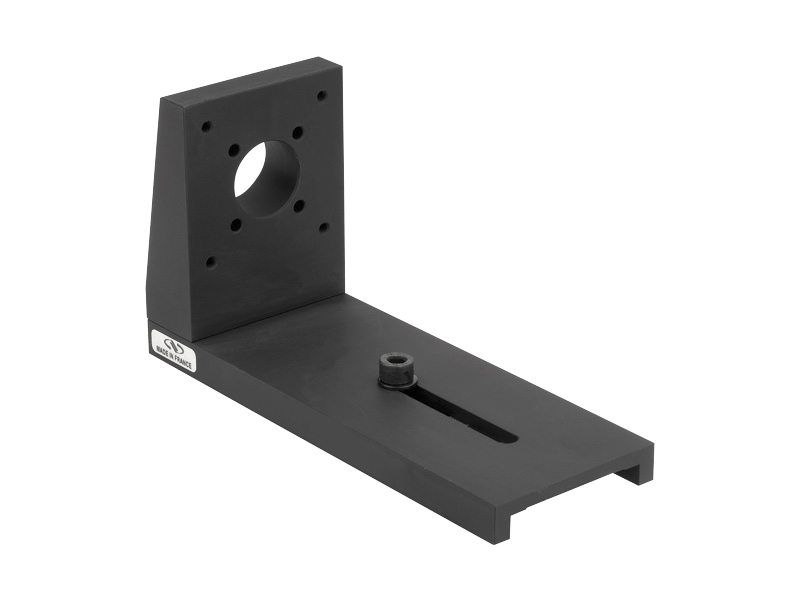

EQ Series Adjustable Brackets allow one arm of an angle bracket to vary in length. This can be useful to adjust the center of rotation of a UMR linear or UTR rotation stage mounted orthogonal to a UTR stage. It is also beneficial to simply adjust the length of one arm of a UMR or UTR stage mounted orthogonal to a UMR stage.

Adjustable angle bracket length for orthogonal UMR/UTR stages
Adjustable center of rotation point for orthogonal UMR/UTR stages
Aluminum construction

See All Features

Products

Compare	Model	Compatibility	rankScore	Use	Availability	Price	Brand
338233 90 degree Angle Bracket, Adjustable, EQ5.03 $366 In Stock	338233 90 degree Angle Bracket, Adjustable, EQ5.03	UNIVERSAL	1.0	UMR5 and UTR50 Stages	In Stock	$366	Newport
338234 90 degree Angle Bracket, Adjustable, EQ8.03 $444 In Stock	338234 90 degree Angle Bracket, Adjustable, EQ8.03	UNIVERSAL	1.0	UMR8 and UTR80 Stages	In Stock	$444	Newport
338235 90 degree Angle Bracket, Adjustable, EQ120.03 $517 Contact Us	338235 90 degree Angle Bracket, Adjustable, EQ120.03	UNIVERSAL	1.0	MR12 and UTR120 Stages	Contact Us	$517	Newport

Show All

Features

Compatible With UMR or UTR stages

Made of aluminum, these brackets are available in three sizes. The number after "EQ" in the description represents the series of UMR or UTR stages that the bracket is compatible with. For example, EQ8.03 is compatible with UMR8 and UTR80 Series stages. These brackets are available in metric only.
