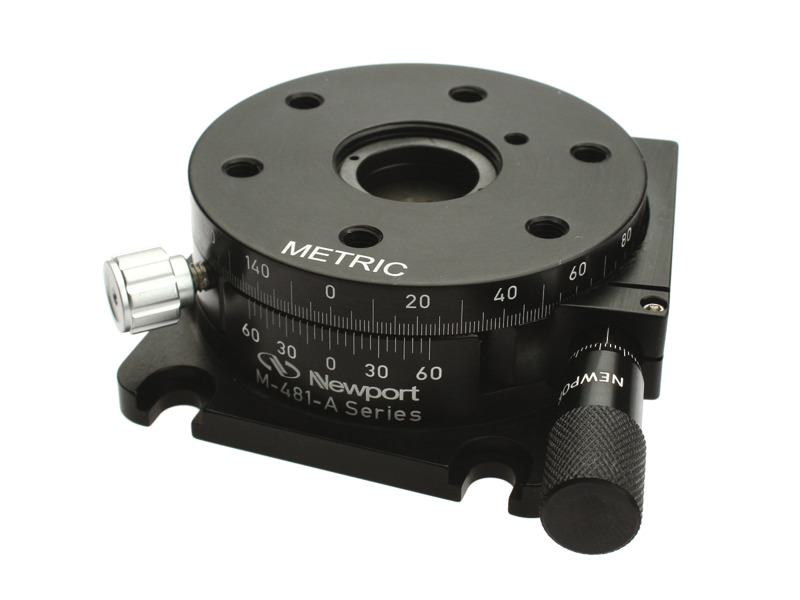

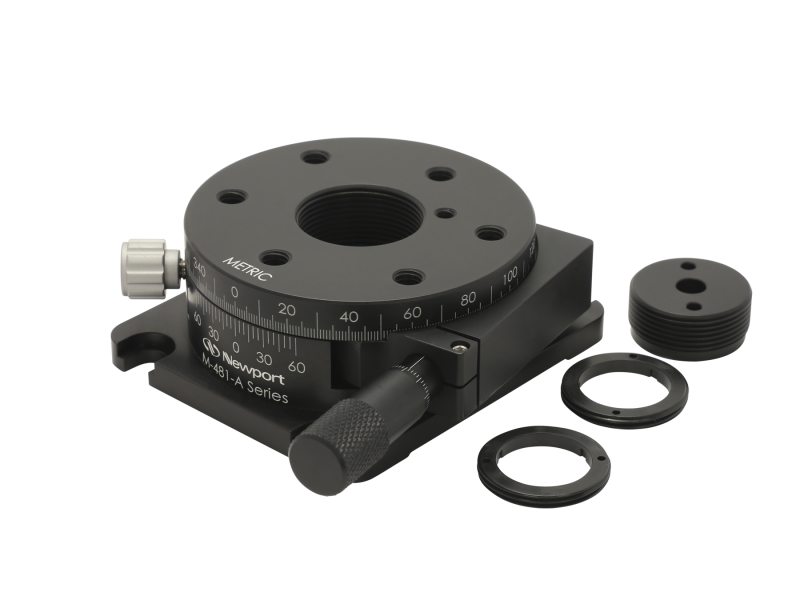

Rotation Stage, 360° Coarse, 5° Fine, Micrometer, Metric

Model: M-481-A

Rotation Stage, 360° Coarse, 5° Fine, Micrometer, Metric

Model: M-481-A

Technical Specs

  • Coarse Travel
    360°
  • Fine Travel
  • Diameter
    73.2 mm
  • Load Capacity
    178 N
  • Sensitivity
    30 arc sec
  • Graduations
  • Vernier
    5 arc min
  • Thread Type
    M4 and M6
  • Optic Diameter
    25.4 mm
  • Optic Thickness
    9 mm
  • Clear Aperture
    19.1 mm
  • Backlash
    Negligible
  • Maximum Drive Torque
    0.9 Nm
  • Weight
    0.36 kg

Resources & Downloads

2D / 3D CAD Software
Drawings And Cad

Rotation Stage, 360° Coarse, 5° Fine, Micrometer, Metric

Model: M-481-A

$337
In Stock
