Kinematic Flip Base, Threaded M4 Mounting

Kin-a-Flip Optical Mount Base

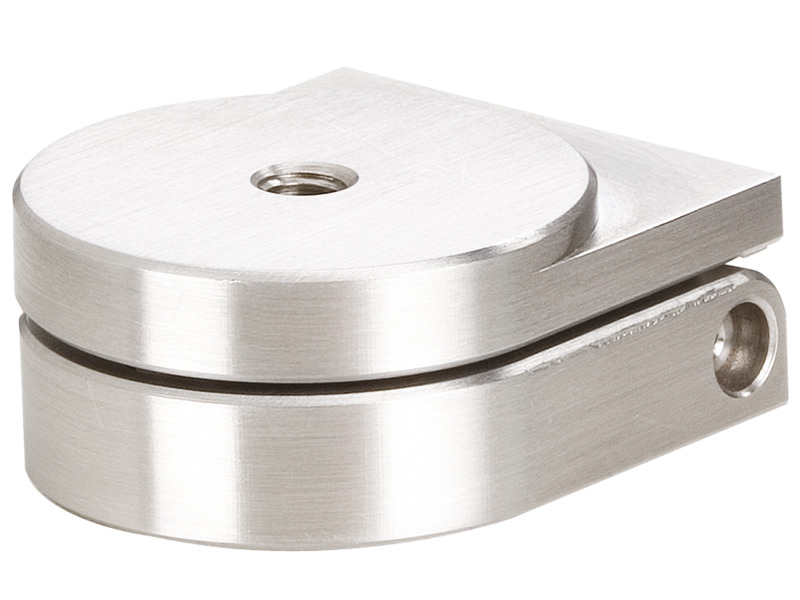

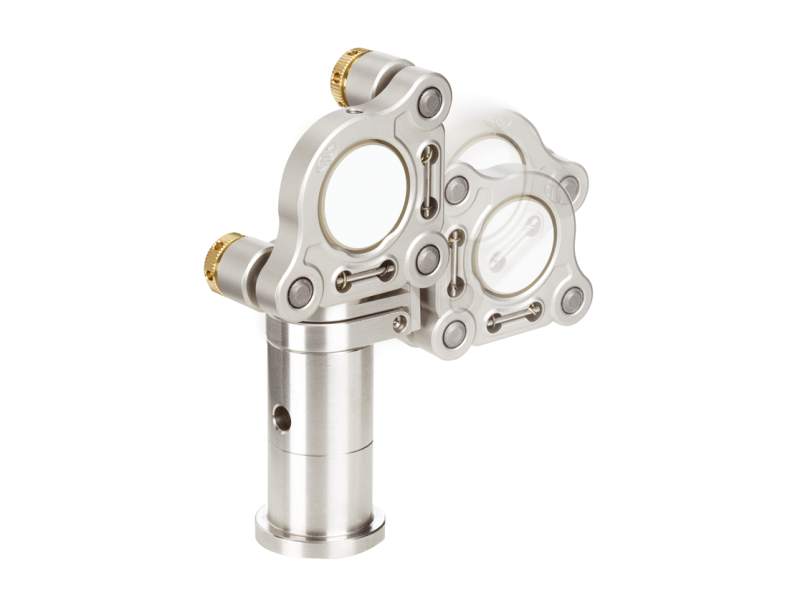

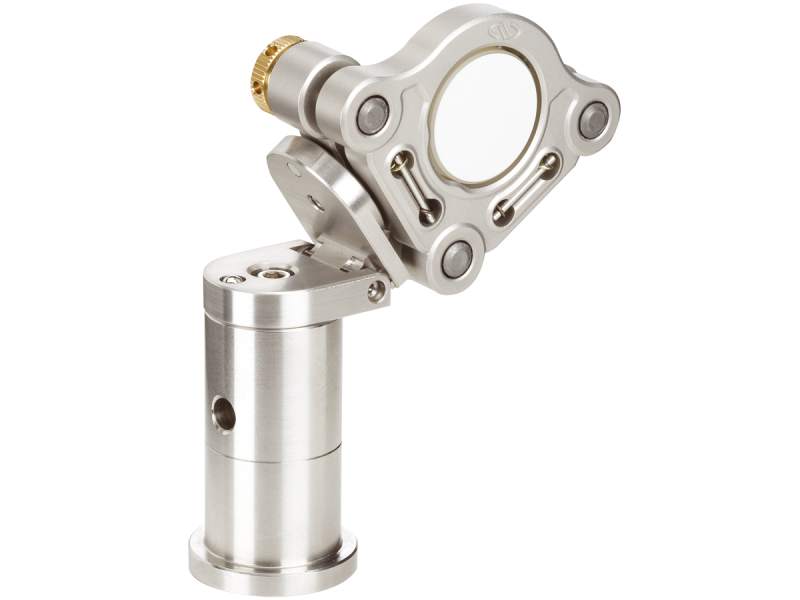

The M-PS-KF Kin-a-Flip Kinematic Flip Base is ideal for quickly moving optical mounts in and out of beam paths with maximum repeatability. To optimize thermal expansion properties, they are constructed from 300 Series Stainless Steel. The M-PS-KF base is compact in size, extending overall height by only 12.7 mm and has a counterbored M4 thru-hole.

Specifications

Technical Specs

Type
Kin-a-Flip Base
Thread Type
M4
Weight
55 g

Type
Kin-a-Flip Base
Thread Type
M4
Weight
55 g

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

CATALOG DWG-PS-KF(106.7 kB, PDF)

Other

M-PS-KF RoHS Certificate(281.6 kB, PDF)
