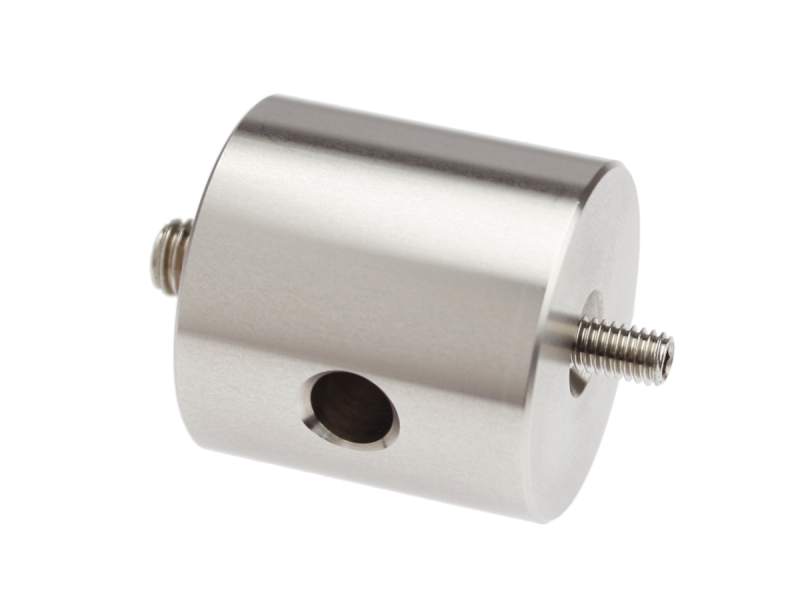

Table Mount Adaptor, 25.4 mm Diameter Pedestals, M4 to M6

Model: M-PS-1T

$22

In Stock

Compare

Add to List

Product Series Overview

1.0 in. Post Spacers & Thread Adapters

The M-PS-1T Table Mount Adaptor allows mounting of PS-series Pedestal Extensions directly to an optical table without a clamp fork. This adaptor is a 25.4 mm high Pedestal Extension Post with an M6 thread on one end and M4 thread on the other. Threaded studs are included. The M-PS-1T is necessary when several pedestal posts need to be mounted as close as possible (25 mm apart) on an optical table. Note that the fork-clamp pedestal posts, because of their 31.75 mm diameter base, cannot be mounted this close together.

Specifications

Technical Specs

Type

Thread Adapter
Height

25.4 mm
Thread Type

M4 and M6

Material

Stainless Steel
Diameter

25.4 mm

Type

Thread Adapter
Height

25.4 mm
Thread Type

M4 and M6

Material

Stainless Steel
Diameter

25.4 mm

Resources & Downloads

Other

M-PS-1T RoHS Certificate (279.2 kB, PDF)
M-PS-1T_RoHS2021.pdf (682.9 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

PS-1T (133.6 kB, PDF)
