Optical Filter Mount, Edge Grip, 50.8 mm Optics, M4
Optical Filter Mount, Edge Grip, 50.8 mm Optics, M4
Model: M-HM-2
Product Series Overview

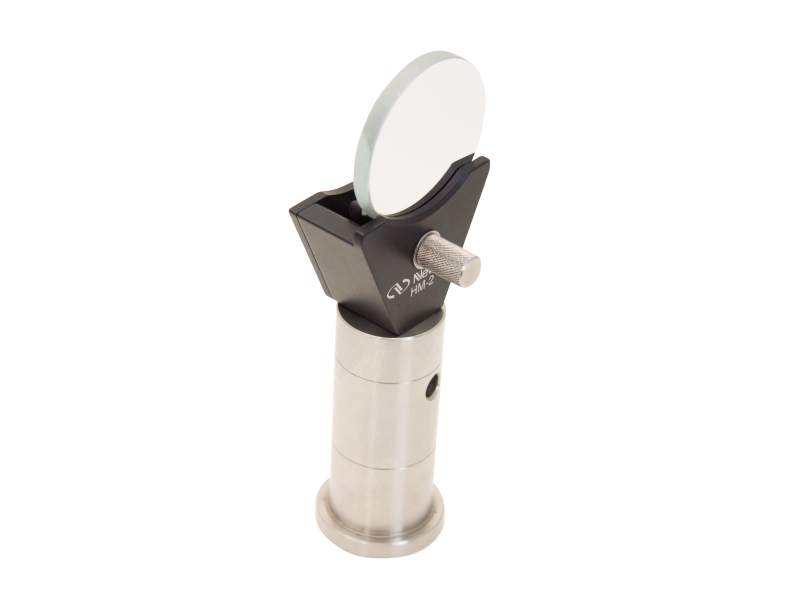

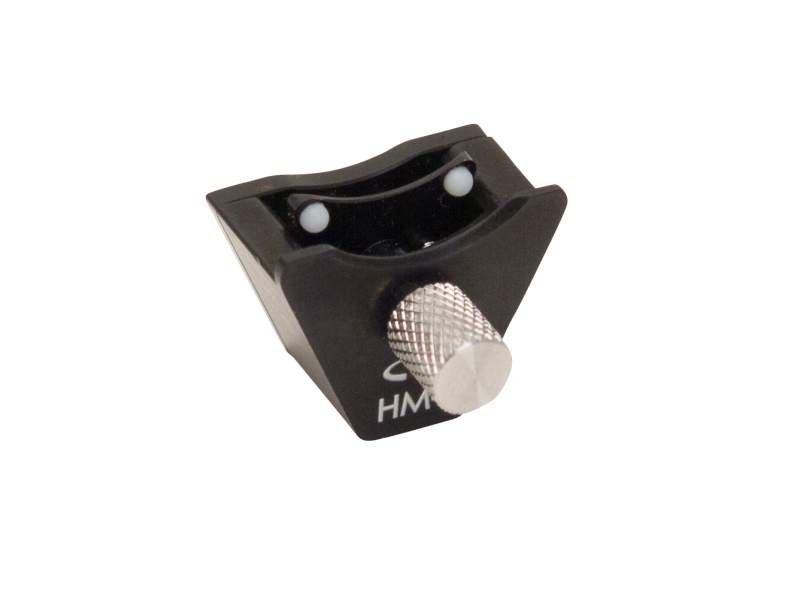

Edge Grip Thumbscrew Clamp Filter MountsThe M-HM-2 Optic Mount offers a convenient, economical system for mounting 2.0 in. (50.8 mm) round or square filters, beam splitters or mirrors. The mount uses the Edge Grip™ mounting mechanism to hold the optic near its edge. This holding technique allows for easy installation / removal of the optic and makes the mount noticeably smaller in size. The holder incorporates an M4 threaded mounting hole for post mounting on Metric SP and MSP Series Posts, as well as PS Series Pedestal Posts.
Resources & Downloads
2D Product Drawings
HM-2-DWG.pdf(1.2 MB, PDF)
Other
M-HM-2 RoHS Certificate(281.6 kB, PDF)
