Lens Mount, Insertable, 12.7 mm Diameter, A-LINE
Lens Mount, Insertable, 12.7 mm Diameter, A-LINE
Model: LH-05N
Product Series Overview

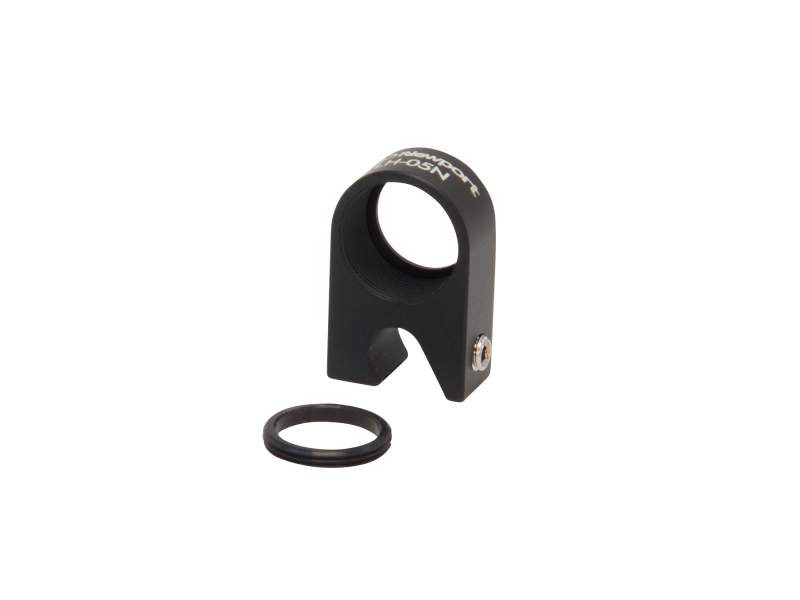

A-Line™ Insertable Fixed Lens MountsThe A-LINE™ LH-05N Lens Mount is an insertable holder for mounting Ø0.5 in. (12.7 mm) lenses and beamsplitters. The lens mount has a unique angled slot to allow it to be inserted amongst a row of rod-mounted A-Line lens holders. This feature allows the user to easily add and remove lens from the middle of a beam path with out disassembly.
Resources & Downloads
2D Product Drawings
LH-05N-359(344.2 kB, PDF)
Other
LH-05N RoHS Certificate(278.8 kB, PDF) LH-05N_RoHS2021.pdf(682.2 kB, PDF)
