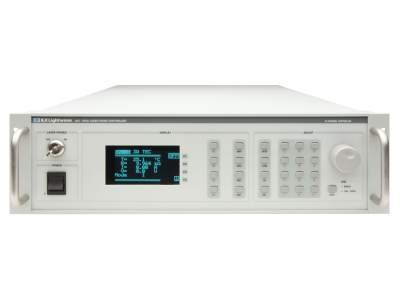

Modular High Power Laser Diode Controller, 16-Channel, GPIB, Universal [Discontinued]

The LDC-3926 Modular Mainframe offers sixteen channels of high power laser diode current source and temperature control in a space saving rack mountable instrument. ILX Lightwave^® designed the LDC-3926 to meet the increasing pump laser control demands of high power optical amplifiers. With up to 6 A available per channel, the LDC-3926 offers the only 16-channel modular instrument for development and production testing of high power optical amplifiers and pump lasers.

Two high current output modules were specifically developed for the LDC3926. A 42W, 6A laser current control module offers 4-wire forward voltage measurement, independent modulation, and enhanced laser diode protection with adjustable forward voltage. A 48W, 6A TEC control module offers precise temperature control with high stability and TE voltage measurement. For even more flexibility, the LDC-3926 accepts all ILX LDC-3916 control modules.

For automated control of all sixteen channels, the LDC-3926 Laser Diode Controller comes with a GPIB/IEEE-488 compliant remote control interface and an RS-232 serial interface. LabVIEW^® drivers are also available for any combination of mainframe and module. LabVIEW instrument drivers are available free of charge.
