Laser Diode Driver Module, 1000 mA, 6 V, Dual Channel, LDC-3908/3916

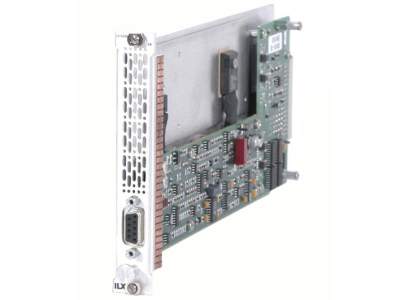

The LDC-3916334 Dual Laser Diode Driver Module offers two independent 1000 mA laser diode drivers.

The module provides two high stability, low noise outputs with multiple hardware current limits and laser protection features such as intermittent contact protection, adjustable compliance voltage limit, slow turn-on, shorting circuits and 4-wire voltage measurement for precise laser diode forward voltage measurement.

This LDC3916334 module is compatible with the or modular laser diode controllers.

For applications requiring individual modulation, please contact an ILX Sales Engineer.

Specifications

Technical Specs

Type
LDC-3908/3916 Driver Card
Laser Current
1 A
Laser Drive Requirement
1 to 10 A
Laser Compliance Voltage
6 V
Temperature Coefficient
50 ppm/ °C
Laser Current Resolution
0.02 mA
Laser Current Accuracy
±0.1% of FS
Current Output 24 h Stability
50 ppm FS
Current Output 1 h Stability
20 ppm FS
External Modulation High Bandwidth
1 MHz
External Modulation Low Bandwidth
30 kHz

Laser Output Noise/Ripple Low Bandwidth
8 µA
Laser Output Noise/Ripple High Bandwidth
<12 µA
Forward Voltage Accuracy
±7mV
Forward Voltage Resolution
10 mV
Photodiode Current Accuracy
±2 µA
Photodiode Current Range
0-5000 µA
Photodiode Current Resolution
0.1 µA
Photodiode Reverse Bias
0-5 V

Type
LDC-3908/3916 Driver Card
Laser Current
1 A
Laser Drive Requirement
1 to 10 A
Laser Compliance Voltage
6 V
Temperature Coefficient
50 ppm/ °C
Laser Current Resolution
0.02 mA
Laser Current Accuracy
±0.1% of FS
Current Output 24 h Stability
50 ppm FS
Current Output 1 h Stability
20 ppm FS
External Modulation High Bandwidth
1 MHz
External Modulation Low Bandwidth
30 kHz

Laser Output Noise/Ripple Low Bandwidth
8 µA
Laser Output Noise/Ripple High Bandwidth
<12 µA
Forward Voltage Accuracy
±7mV
Forward Voltage Resolution
10 mV
Photodiode Current Accuracy
±2 µA
Photodiode Current Range
0-5000 µA
Photodiode Current Resolution
0.1 µA
Photodiode Reverse Bias
0-5 V
