Combination Driver & TEC Module, 1000mA, 6V, 9W TEC, LDC-3908/3916

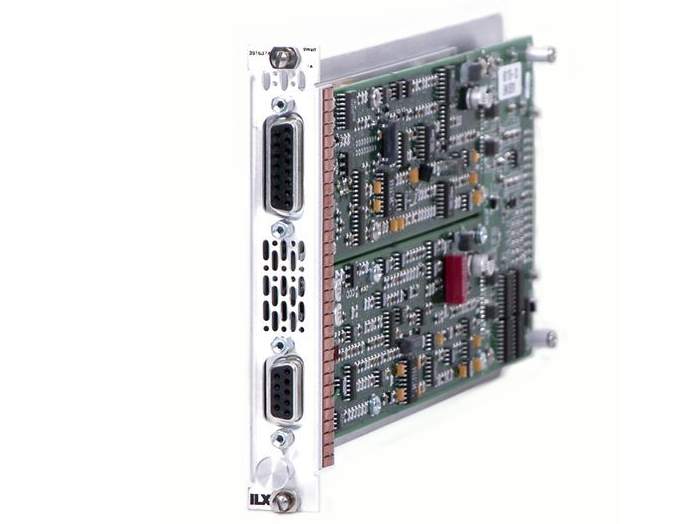

The LDC-3916374 Combination Laser Diode Controller Module offers both a 1000 mA laser diode driver, and a 9 W TEC controller in the same module.
The module provides high stability, low noise output with multiple hardware current limits and laser protection features such as intermittent contact protection, adjustable compliance voltage limit, slow turn-on, shorting circuits and 4-wire voltage measurement for precise laser diode forward voltage measurement. The built-in bi-polar temperature controller works with thermistor type temperature sensors for precise temperature control over a wid range of temperatures.
This LDC3916374 module is compatible with the
For applications requiring individual modulation, please contact an ILX Sales Engineer.
Specifications
- TypeLDC-3908/3916 Controller Card
- Laser Current1 A
- Laser Compliance Voltage6 V
- TE Current Range-1.50 to +1.50 A
- TE Voltage Range-7.00 to +7.00 V
- TE Output Power9 W
- Temperature Range–99.9 to 199.9°C
- Laser Current Resolution0.02 mA
- Laser Current Accuracy±0.1% of FS
- Current Output 24 h Stability50 ppm FS
- Current Output 1 h Stability20 ppm FS
- External Modulation High Bandwidth1 MHz
- External Modulation Low Bandwidth30 kHz
- Laser Output Noise/Ripple Low Bandwidth5 µA
- Laser Output Noise/Ripple High Bandwidth10 µA
- Forward Voltage Accuracy±7mV
- Forward Voltage Resolution10 mV
- TEC Current 24h Stability<±0.01°C
- TEC Current 1h Stability<±0.007°C
- TEC Ripple/Noise (rms)<1 mA
- Photodiode Current Range0 - 5000 µA
- Photodiode Current Resolution0.1 µA
Resources & Downloads
Application Notes
Controlling Temperatures of Laser Diodes Thermoelectrically(487.7 kB, PDF) Optimizing TE Drive Current(315.9 kB, PDF) Protecting Your Laser Diode(2.3 MB, PDF) Laser Diode Characteristics Overview(392.5 kB, PDF)
Manuals
LDC-3916 Controller User's Manual(2 MB, PDF) LDC-3908 Controller User's Manual(2.1 MB, PDF) LDC-3916370 Controller Modules User's Manual(2.5 MB, PDF)
Literature
LDC-3908 8-Channel Laser Diode Controller Brochure(653 kB, PDF) LDC-3916 16-Channel Laser Diode Controller Brochure(655.6 kB, PDF) Pinout Diagrams for CC-305S and CC-505S Cables(88.5 kB, PDF)
Technical Notes
Voltage Limit Protection of the LDC-3916 Laser Diode Controller(96.8 kB, PDF) Measurement of 4-Wire Voltage Sense on the LDC-3916 Laser Diode Controller(37.7 kB, PDF)
Software
LDC-391637X LabVIEW Driver Version 0.9(211.5 kB, ZIP)
