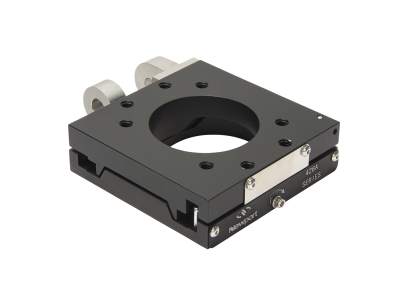

Manual Linear Stage, Crossed-Roller Bearings, Aperture, 1.0 in. Travel, 1/4-20

  • Axes of Travel
    X
  • Maximum Stage Travel
    25 mm
  • Centered Normal Load Capacity
    325 N
  • Vertical Axial Load Capacity
    67 N
  • Angular Deviation
    <150 µrad
  • Material
    Aluminum
  • Bearings
    Crossed-Roller Bearings
  • Drive Location
    Side drive
  • Platform Size
    3.5 x 3.5 in.
  • Aperture Diameter
    2.0 in.
  • Height
    1.0 in.
  • Weight
    1.400 lbs
  • Thread Type
    1/4-20
  • Recommended Adjustment Screw
  • Recommended Vernier Micrometer
  • Recommended Digital Micrometer
  • Recommended Lockable Micrometer
  • Recommended TRA Motorized Actuator
  • Recommended TRB Motorized Actuator
  • Recommended LTA Motorized Actuator
