Compare Model Drawings, CAD & Specs Availability Price
461-X-M
Manual Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20
$734
In Stock
 461-X-M Manual Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20
In Stock
 $734
461-Z-M
Vertical Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20
$734
3 Weeks
 461-Z-M Vertical Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20
3 Weeks
 $734
461-XY-M
XY Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20
$1,245
In Stock
 461-XY-M XY Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20
In Stock
 $1,245
461-XZ-M
XZ Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20
$1,170
In Stock
 461-XZ-M XZ Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20
In Stock
 $1,170

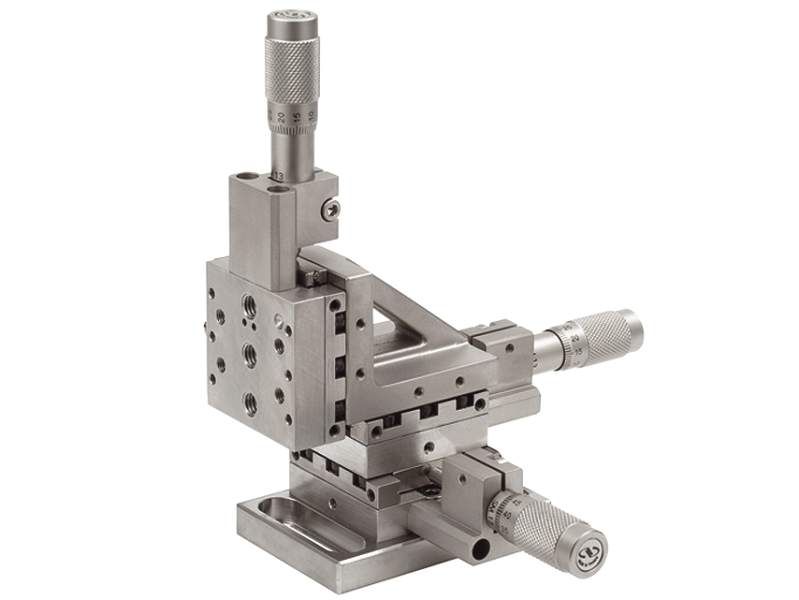

461-XYZ-M
XYZ Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20
$2,017
In Stock
 461-XYZ-M XYZ Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20
In Stock
 $2,017
461-XYZ-LH-M
XYZ Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20, Left-handed
$2,017
461-XYZ-LH-M XYZ Linear Stage, ULTRAlign, 13 mm, Crossed-Roller, 8-32 & 1/4-20, Left-handed $2,017
M-461-X-M
Manual Linear Stage, ULTRAlign, 13 mm Travel, Crossed-Roller, M4, M6
$734
5 Weeks
 M-461-X-M Manual Linear Stage, ULTRAlign, 13 mm Travel, Crossed-Roller, M4, M6
5 Weeks
 $734
M-461-Z-M
Vertical Linear Stage, ULTRAlign, 13 mm Travel, Crossed-Roller, M4, M6
$734
In Stock
 M-461-Z-M Vertical Linear Stage, ULTRAlign, 13 mm Travel, Crossed-Roller, M4, M6
In Stock
 $734
M-461-XY-M
XY Linear Stage, ULTRAlign, 13 mm Travel, Crossed-Roller, M4, M6
$1,245
In Stock
 M-461-XY-M XY Linear Stage, ULTRAlign, 13 mm Travel, Crossed-Roller, M4, M6
In Stock
 $1,245
M-461-XZ-M
XZ Linear Stage, ULTRAlign, 13 mm Travel, Crossed-Roller, M4, M6
$1,170
In Stock
 M-461-XZ-M XZ Linear Stage, ULTRAlign, 13 mm Travel, Crossed-Roller, M4, M6
In Stock
 $1,170
M-461-XYZ-M
XYZ Linear Stage, ULTRAlign, 13 mm Travel, Crossed-Roller, M4, M6
$2,017
In Stock
 M-461-XYZ-M XYZ Linear Stage, ULTRAlign, 13 mm Travel, Crossed-Roller, M4, M6
In Stock
 $2,017
M-461-XYZ-LH-M
XYZ Linear Stage, ULTRAlign, 13 mm Travel, Crossed-Roller, M4, M6, Left-handed
$2,017
In Stock
 M-461-XYZ-LH-M XYZ Linear Stage, ULTRAlign, 13 mm Travel, Crossed-Roller, M4, M6, Left-handed
In Stock
 $2,017

Specifications

  • Maximum Stage Travel
    13 mm
  • Centered Normal Load Capacity
    89 N
  • Vertical Axial Load Capacity
    36 N
  • Angular Deviation
    <100 µrad
  • Material
    Stainless Steel
  • Bearings
    Crossed-Roller Bearings
  • Drive Location
    Center drive

Features

Precision Control and Extra Stiffness

ULTRAlign Stainless Steel Crossed-Roller Translation Stages provide a low profile, yet solid and stable linear translation, that can be locked in place without disturbing translation or position. Perfect for many standard optical applications such as interferometry, linear translation by the crossed-roller bearings and the precision-manufactured bearing reference surfaces provide a maximum angular deviation of <100 µrad for any axis. Z-axis stages do not depend on springs for support, ensuring maximum vertical load capacity. The mounting surface of these stages has multiple threaded holes, available in either English or Metric units, to make mounting easy and versatile in most table-top optical systems.

Preloaded crossed-roller bearings provide repeatable, zero stick-slip linear motion with negligible side-play.

Versatile Stage Configurations

Multiple configurations for these stages are available to match your specific requirements: X, Z, XY, XZ and XYZ. XYZ stage is offered with a choice between left-handed and right-handed. In addition, the mounting base can be removed for an even lower profile. 1.0 in. (25.4 mm) travel version is also available.

Individually Tested to Guarantee <100 µrad Deviation

Each ULTRAlign Stainless Steel Crossed-Roller Translation Stage is tested individually to ensure it meets the <100 µrad angular deviation requirement. We don't just say it, we guarantee it. The actual test results are included with each stage.
