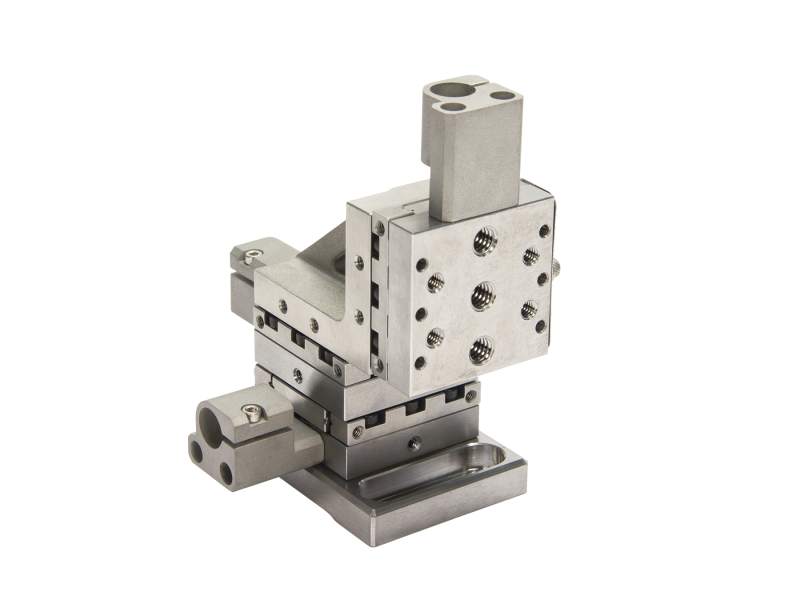

XYZ Linear Stage, ULTRAlign, Crossed-Roller Bearing, 0.5 in., Left-handed

Technical Specs

  • Axes of Travel
    X, Y, Z
  • Orientation
    Left-Handed
  • Maximum Stage Travel
    13 mm
  • Thread Type
    8-32 and 1/4-20
  • Load Capacity
    89 N
  • Maximum Centered Load
    89 N
  • Vertical Load Capacity
    36 N
  • Angular Deviation
    <100 µrad
  • Material
    Stainless Steel
  • Bearings
    Crossed-Roller Bearings
  • Drive Location
    Center Drive
  • Recommended Adjustment Screw
  • Recommended Vernier Micrometer
  • Recommended TRB Motorized Actuator
  • Travel Requirement
    12.7 to 25.4 mm
