| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|

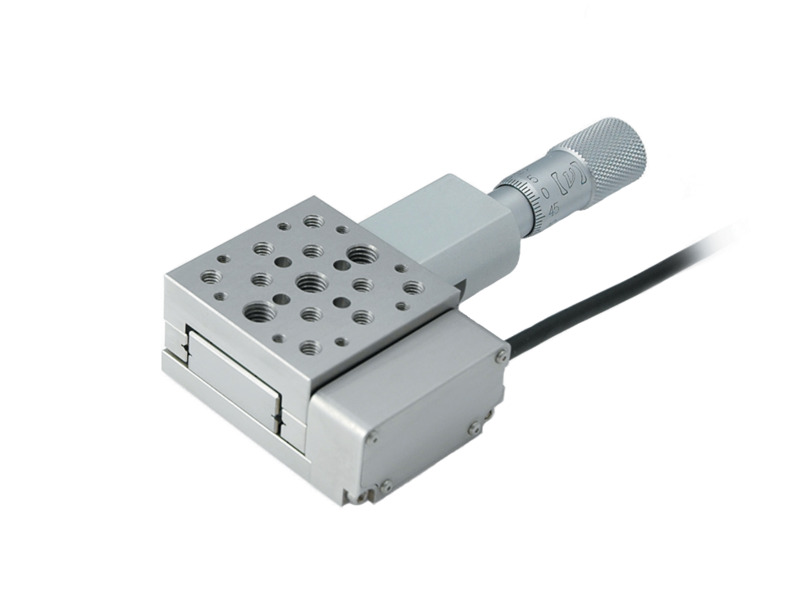

9066-COM-E Manual Linear Stage, Stainless Steel, Optical Encoder, 0.5 in., 8-32 |
5 Weeks
|
$2,862 |
|
|||
|
9067-COM-E Manual Linear Stage, Stainless Steel, Optical Encoder, 1.0 in., 1/4-20 |
In Stock
|
$3,239 |
|
|||
|
|
9066-COM-E-M Manual Linear Stage, Stainless Steel, Optical Encoder, 12.7 mm, M4 |
In Stock
|
$2,862 |
|
|||
|
|
9067-COM-E-M Manual Linear Stage, Stainless Steel, Optical Encoder, 25.4 mm, M6 |
In Stock
|
$3,239 |
|
| Models |
|
|
|
|
|
|---|---|---|---|---|---|
| Travel Range | 12.7 mm | 12.7 mm | 25.4 mm | 25.4 mm | |
| Platform Size | 36.8 x 36.8 mm | 36.8 x 26.8 mm | 63.5 x 63.5 mm | 63.5 x 63.5 mm | |
| Height | 22.1 mm | 22.1 mm | 22.1 mm | 22.1 mm | |
| Bearings | Crossed Roller Bearings | Crossed Roller Bearings | Crossed Roller Bearings | Crossed Roller Bearings | |
| Centered Load Capacity | 111 N | 111 N | 222 N | 222 N | |
| Vertical Load Capacity | 44.5 N | 44.5 N | 80 N | 80 N | |
| Material | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | |
| Thread Type | 8-32 and 1/4-20 | M4 and M6 | 8-32 and 1/4-20 | M4 and M6 | |
| Resolution | 80 nm | 80 nm | 80 nm | 80 nm | |
| On-Axis Accuracy | 3 µm | 3 µm | 3 µm | 3 µm | |
| Feedback | Closed Loop | Closed Loop | Closed Loop | Closed Loop |

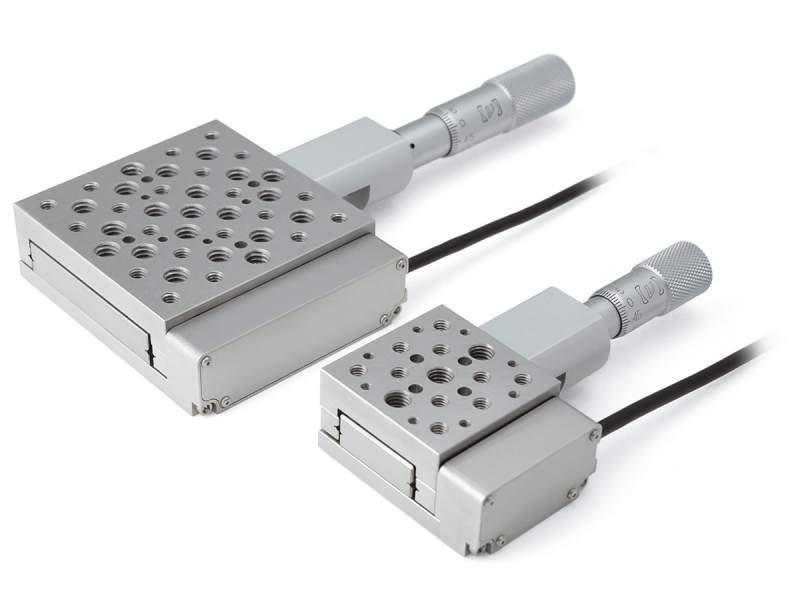

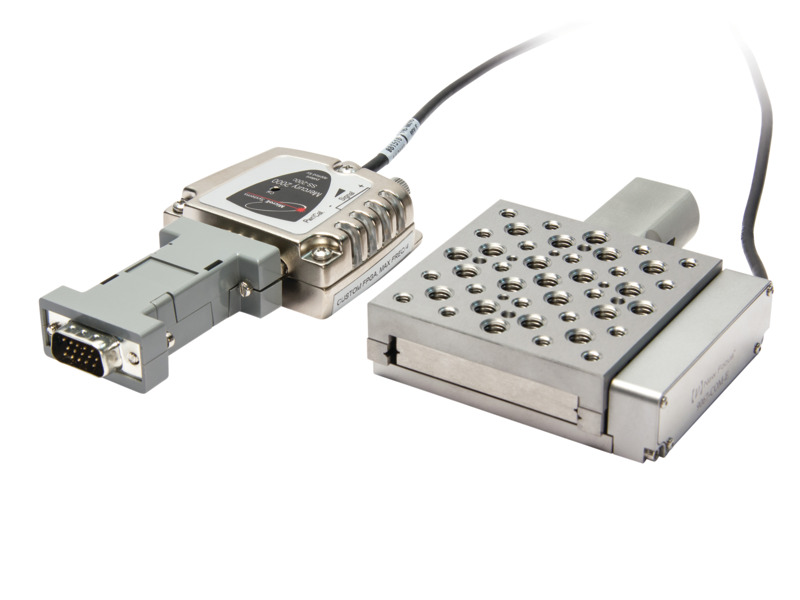

These stages feature an integrated linear encoder. Paired with our open-loop Picomotor actuators, you can build your own closed-loop Picomotor actuated stage with 80 nm resolution repeatable step sizes.

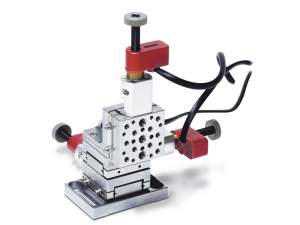

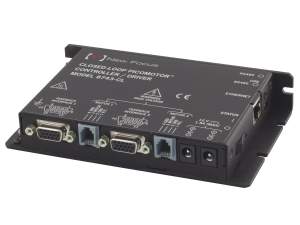

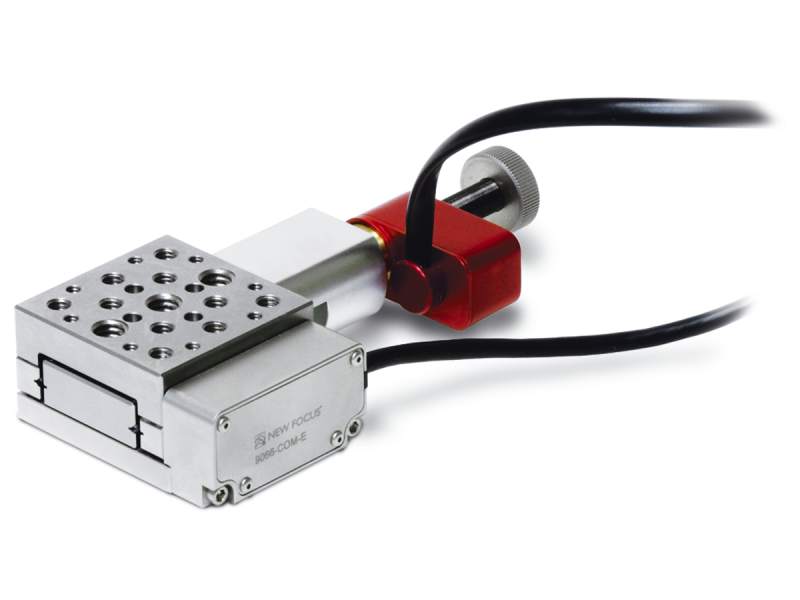

These linear stages have been designed to be fully compatible with our popular Picomotor actuators and the 8743-CL Closed-Loop Picomotor Controller/Driver. For example, combine the 9066-COM-E linear stage with a 8302 Picomotor actuator and 8743-CL Closed-Loop Picomotor controller/driver to create a ready to go closed-loop linear stage.
To ensure accurate linear travel, the stages use thermally matched, hardened-steel, crossed-roller bearings and high-precision reference surfaces. The result is a line of translation stages that offers an angular deviation of < 150 µrad in any axis and straight-line accuracy better than 3 microns as well as high load capacity and stiffness.
