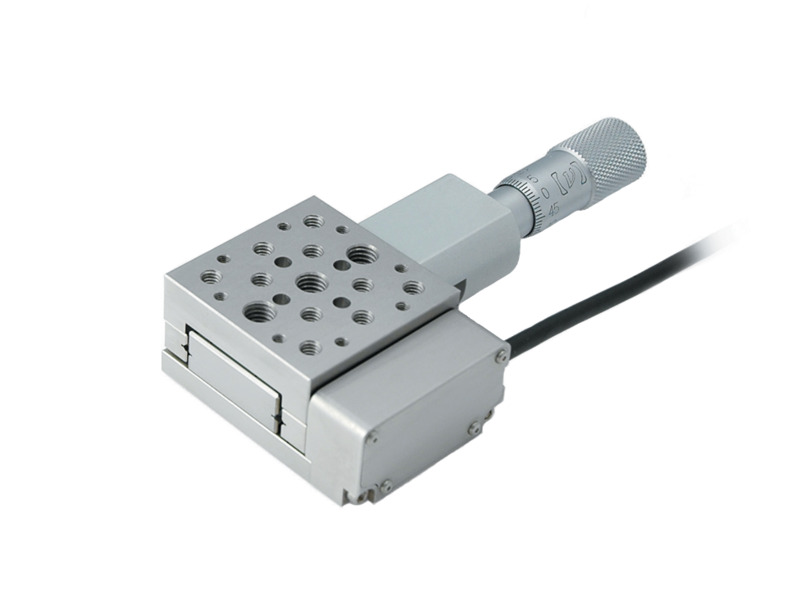

Manual Linear Stage, Stainless Steel, Optical Encoder, 0.5 in., 8-32

The 9066-COM-E Optically Encoded Stainless Steel Crossed-Roller-Bearing Translation Stage allows you to build your own closed-loop Picomotor-actuated stage. This 0.5 in. travel translation stage with integrated encoder can be used with your choice of our many Picomotor actuators, so you'll be able to accurately measure where you are and where you need to be. It is fully compatible with the Model 8743-CL closed-loop Picomotor controller/driver. 8-32 threaded holes.

Specifications

Technical Specs

Travel Range
12.7 mm
Axes of Travel
X
Resolution
80 nm
Centered Load Capacity
111 N
Vertical Load Capacity
44.5 N
Bearings
Crossed Roller Bearings
Material
Stainless Steel

On-Axis Accuracy
3 µm
Feedback
Closed Loop
Thread Type
8-32 and 1/4-20
Platform Size
36.8 x 36.8 mm
Height
22.1 mm

Travel Range
12.7 mm
Axes of Travel
X
Resolution
80 nm
Centered Load Capacity
111 N
Vertical Load Capacity
44.5 N
Bearings
Crossed Roller Bearings
Material
Stainless Steel

On-Axis Accuracy
3 µm
Feedback
Closed Loop
Thread Type
8-32 and 1/4-20
Platform Size
36.8 x 36.8 mm
Height
22.1 mm

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

9066-COM-E-370(256.4 kB, PDF)
9066COMEPinouts(311.8 kB, PDF)

Literature

Picomotor FAQ(3.1 MB, PDF)

Manuals

9066-9067-COM-E - Users Guide(1.5 MB, PDF)
