Manual Linear Stage, Stainless Steel, Optical Encoder, 25.4 mm, M6

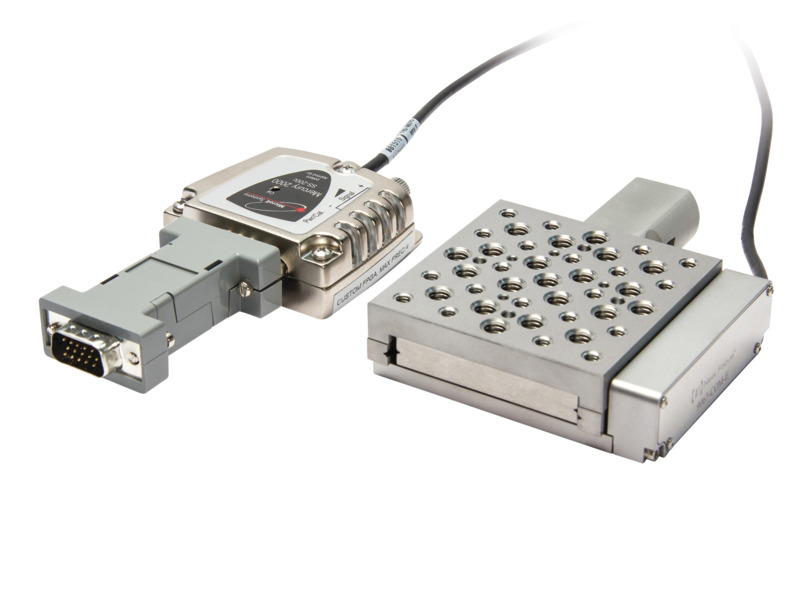

The 9067-COM-E-M Optically Encoded Stainless Steel Crossed-Roller-Bearing Translation Stage allows you to build your own closed-loop Picomotor-actuated stage. This 25.4 mm travel translation stage with integrated encoder can be used with your choice of our many Picomotor actuators, so you'll be able to accurately measure where you are and where you need to be. It is fully compatible with the Model 8743-CL closed-loop Picomotor controller/driver. M4 threaded holes.
Specifications
- Travel Range25.4 mm
- Axes of TravelX
- Resolution80 nm
- Centered Load Capacity222 N
- Vertical Load Capacity80 N
- BearingsCrossed Roller Bearings
- MaterialStainless Steel
- On-Axis Accuracy3 µm
- FeedbackClosed Loop
- Thread TypeM4 and M6
- Platform Size63.5 x 63.5 mm
- Height22.1 mm
Resources & Downloads
Manuals
9066-9067-COM-E - Users Guide(1.5 MB, PDF)
