Specifications

  • Transmission
    Excitation & Emission Filters: Tavg ≥ 96% over passband
  • Reflection
    Dichroic Beamsplitters: Ravg ≥ 98% over Excitation passband
  • Blocking
    ODavg ≥ 6 out of band, 300 – 900 nm ODavg ≥ 10 over corresponding EX/EM passband (verified to OD8 avg as a paired set) ODabs ≥ 4 EX/EM crossover ODavg ≥ 3 over 900 – 1100 nm
  • Angle of Incidence
    Excitation & Emission Filters: 0-5°
    Dichroic Beamsplitters: 45±1.5°
  • Parallelism
    Excitation & Emission Filters: ≤ 10 arcseconds
    Dichroic Beamsplitters: ≤ 5 arcsecond
  • Material
    Excitation & Emission Filters: BOROFLOAT® 33
    Dichroic Beamsplitters: Fused Silica
  • Dimensions
    Excitation & Emission Filters: 25 mm
    Dichroic Beamsplitters: 25.2 x 35.6 mm
  • Surface Quality
    60-40 over clear aperture

Features

ODiate Filter Manufacturing & Metrology

ODiate Fluorescence Filter Sets are manufactured using advanced thin-film deposition systems ensures optical filters achieve excellent transmission and reflection accuracy. ODiate filter specifications are verified utilizing commercial spectrophotometric tools in addition to Newport’s proprietary custom in-house tools to measure edge steepness resolution, and deep blocking to optical density 8 [-log10(T)].

Optimized Coatings and Engineering Expertise

Newport pushed the boundaries with the introduction of our ODiate Fluorescence Filter Sets, to allow customers to fully optimize their system performance.  Our expert engineering team has been involved from the first stage of design to ensure that we exceed your requirements and continues through the entire process of continual production deliveries.

Environmental Stability and Physical Durability

The coating systems used to produce ODiate filters use a dense sputtering process to provide robust environmental reliability to meet the highest demands for thin-film coatings. The resulting highly durable coatings meet or exceed testing procedures including humidity, thermal shock, adhesion, chemical resistance, and moderate abrasion per U.S. Military and international standards.

Set Components

Each ODiate® Fluorescence Filter Set contains one each of the filters shown in the table below. Please see the individual filter pages for complete specifications and a list of other Fluorophores covered by the filter set.

Set Primary Fluorophore Excitation Filter Dichroic Beamsplitter Emission Filter
OD8-FFS2005

Model: OD8-FFS2005

NEW Fluorescence Filter Set, ODiate®, DAPI Fluorophore

$885
In Stock
Product Series Overview
ODiate® Fluorescence Filter Sets
DAPI 379.5 nm

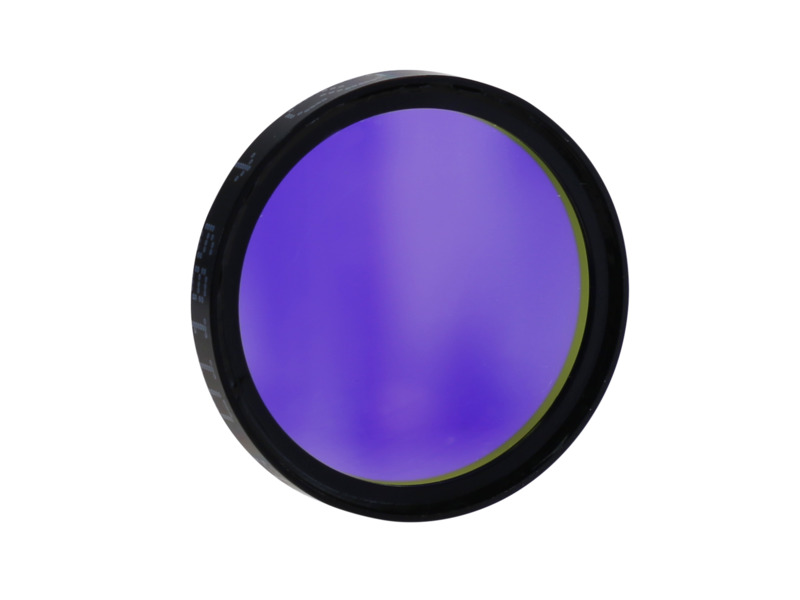

Model: OD8-EX380-59-B

NEW ODiate® Excitation Filter, 25.0 mm, 380 nm CWL, 59 nm FWHM

$295
In Stock
Product Series Overview
ODiate® Fluorescence Excitation Filters
 Center		 414 nm

Model: OD8-DCL414-D

NEW ODiate® Dichroic Beamsplitter, 25.2x35.6 mm, 414 nm, 50% Cut-on Edge Wavelength

$295
In Stock
Product Series Overview
ODiate® Fluorescence Dichroic Beamsplitters
Cut-on		 450 nm

Model: OD8-EM450-64-B

NEW ODiate® Emission Filter, 25.0 mm, 450 nm CWL, 64 nm FWHM

$295
In Stock
Product Series Overview
ODiate® Fluorescence Emission Filters
Center
OD8-FFS2010

Model: OD8-FFS2010

NEW Fluorescence Filter Set, ODiate®, GFP Fluorophore

$885
In Stock
Product Series Overview
ODiate® Fluorescence Filter Sets
GFP 474 nm

Model: OD8-EX474-37-B

NEW ODiate® Excitation Filter, 25.0 mm, 474 nm CWL, 37 nm FWHM

$295
In Stock
Product Series Overview
ODiate® Fluorescence Excitation Filters
 Center		 498 nm

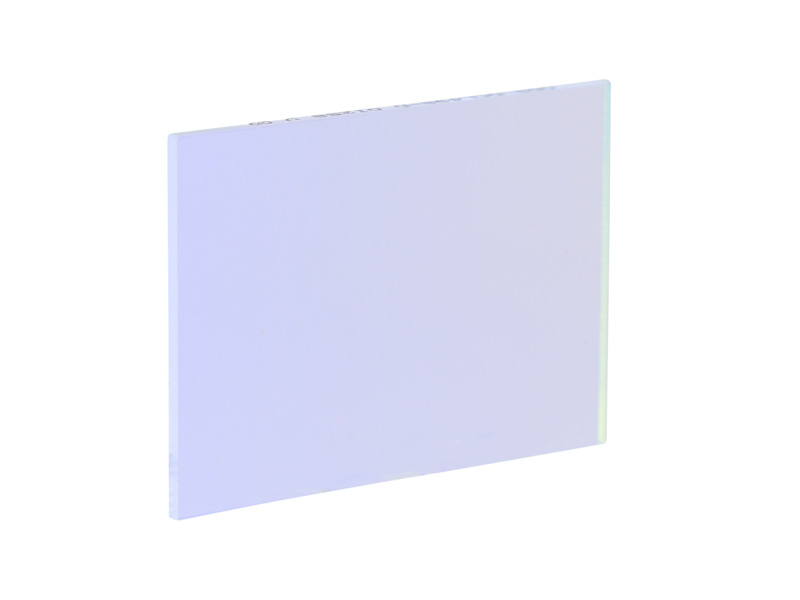

Model: OD8-DCL498-D

NEW ODiate® Dichroic Beamsplitter, 25.2 x 35.6 mm, 498 nm 50% Cut-on Edge Wavelength

$295
In Stock
Product Series Overview
ODiate® Fluorescence Dichroic Beamsplitters
Cut-on		 523 nm

Model: OD8-EM523-41-B

NEW ODiate® Emission Filter, 25.0 mm, 523 nm CWL, 41 nm FWHM

$295
In Stock
Product Series Overview
ODiate® Fluorescence Emission Filters
Center
OD8-FFS2015

Model: OD8-FFS2015

NEW Fluorescence Filter Set, ODiate®, FITC Fluorophore

$885
In Stock
Product Series Overview
ODiate® Fluorescence Filter Sets
FITC 482.5 nm

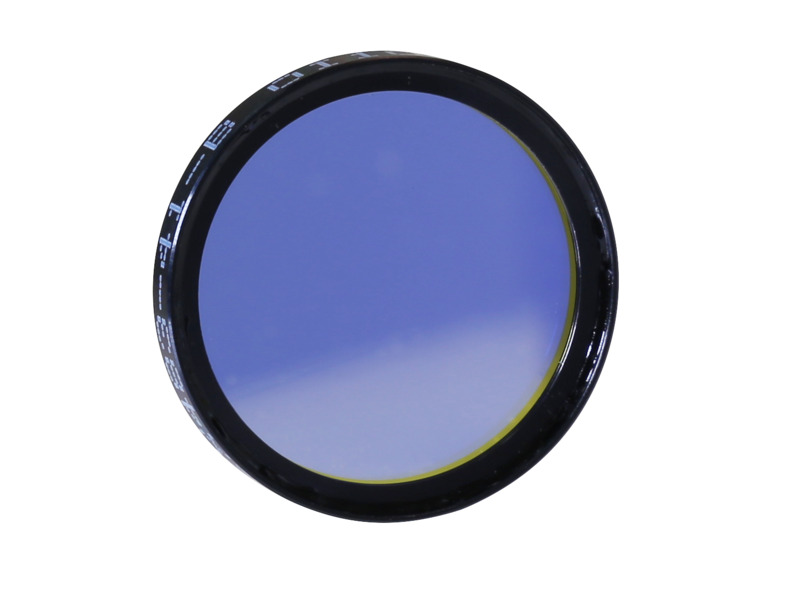

Model: OD8-EX483-41-B

NEW ODiate® Excitation Filter, 25.0 mm, 483 nm CWL, 41 nm FWHM

$295
In Stock
Product Series Overview
ODiate® Fluorescence Excitation Filters
 Center		 508.5 nm

Model: OD8-DCL509-D

NEW ODiate® Dichroic Beamsplitter, 25.2 x 35.6 mm, 509 nm 50% Cut-on Edge Wavelength

$295
In Stock
Product Series Overview
ODiate® Fluorescence Dichroic Beamsplitters
Cut-on		 537 nm

Model: OD8-EM537-46-B

NEW ODiate® Emission Filter, 25.0 mm, 537 nm CWL, 46 nm FWHM

$295
In Stock
Product Series Overview
ODiate® Fluorescence Emission Filters
Center
OD8-FFS2020

Model: OD8-FFS2020

NEW Fluorescence Filter Set, ODiate®, TRITC Fluorophore

$885
In Stock
Product Series Overview
ODiate® Fluorescence Filter Sets
TRITC 539 nm

Model: OD8-EX539-31-B

NEW ODiate® Excitation Filter, 25.0 mm, 539 nm CWL, 31 nm FWHM

$295
In Stock
Product Series Overview
ODiate® Fluorescence Excitation Filters
 Center		 560.5 nm

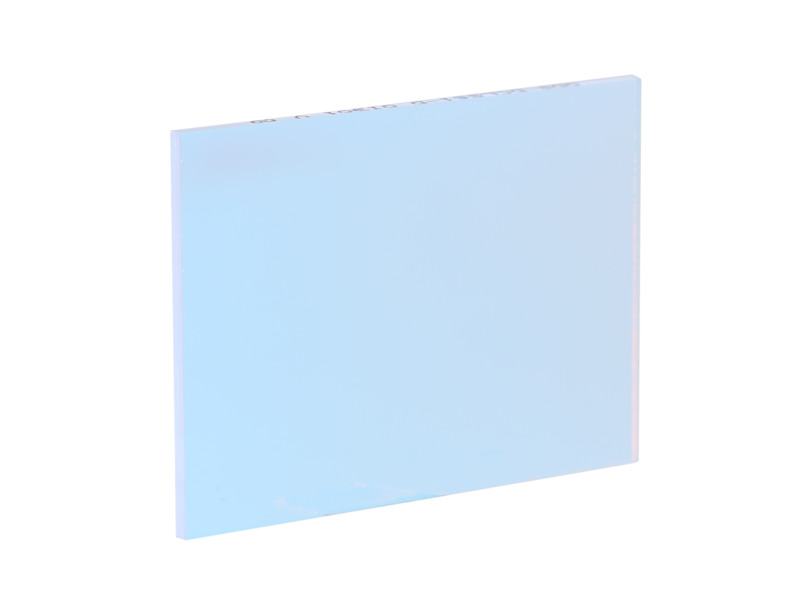

Model: OD8-DCL561-D

NEW ODiate® Dichroic Beamsplitter, 25.2x35.6 mm, 561 nm 50% Cut-on Edge Wavelength

$295
In Stock
Product Series Overview
ODiate® Fluorescence Dichroic Beamsplitters
Cut-on		 593 nm

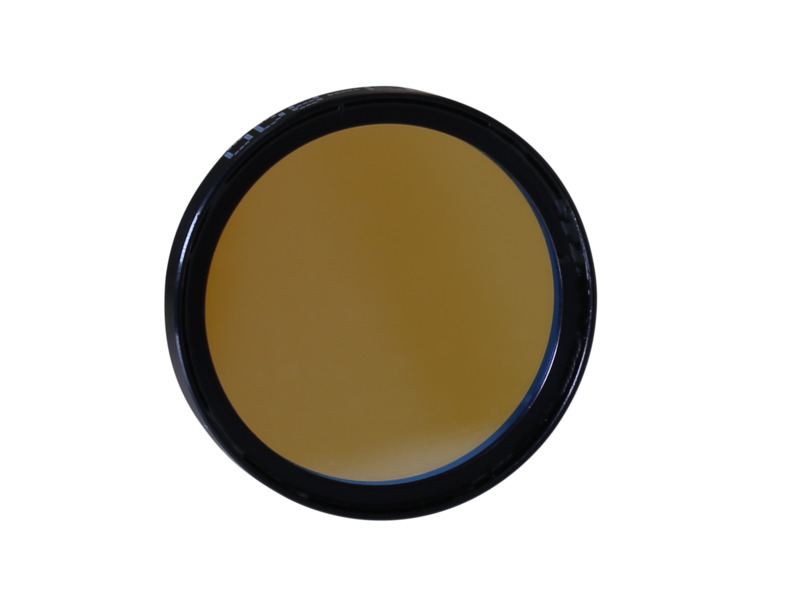

Model: OD8-EM593-54-B

NEW ODiate® Emission Filter, 25.0 mm, 593 nm CWL, 54 nm FWHM

$295
In Stock
Product Series Overview
ODiate® Fluorescence Emission Filters
Center
OD8-FFS2025

Model: OD8-FFS2025

NEW Fluorescence Filter Set, ODiate®, mCherry & TexasRed Fluorophores

$885
In Stock
Product Series Overview
ODiate® Fluorescence Filter Sets
mCherry & TexasRed 564.5 nm

Model: OD8-EX565-49-B

NEW ODiate® Excitation Filter, 25.0 mm, 564.5 nm CWL, 48.6 nm FWHM

$295
In Stock
Product Series Overview
ODiate® Fluorescence Excitation Filters
 Center		 596 nm

Model: OD8-DCL596-D

NEW ODiate® Dichroic Beamsplitter, 25.2x35.6 mm, 596 nm 50% Cut-on Edge Wavelength

$295
In Stock
Product Series Overview
ODiate® Fluorescence Dichroic Beamsplitters
Cut-on		 629 nm Center
OD8-FFS2030 Cy5™ 626 nm Center 658.5 nm Cut-on 692.5 nm Center
