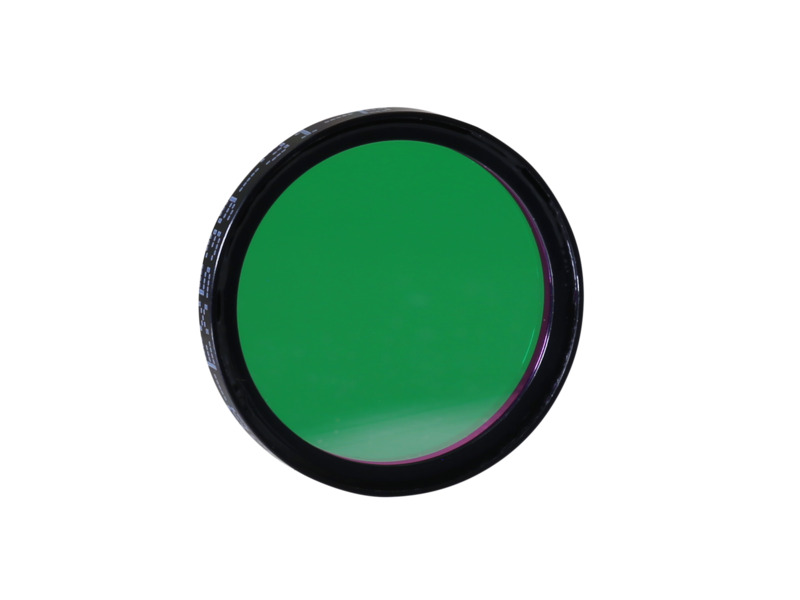

ODiate® Excitation Filter, 25.0 mm, 539 nm CWL, 31 nm FWHM
Model: OD8-EX539-31-B
Product Series Overview
ODiate® Fluorescence Excitation FiltersThe OD8-EX539-31-B Excitation Filter is specified for excitaiton of TRITC and supports similar alternative fluorophores, designed in conjunction with
Alternate Fluorophores
In addition to TRITC the following fluorophores are also compatible with this set:
5-TAMRA (MeOH), Abberior CAGE 552 (uncaged), Abberior FLIP 565 (on state), Alexa Fluor® 546, Alexa Fluor® 555, ATTO 550, BODIPY® TMR-X, C3-Thiacyanine (EtOH), C3-Thiacyanine (PrOH), Calcium Orange, CellMask Orange, CF 543, CF 555, CF 568, Cy®3, DiI, DiIC18 (3), DsRed, DsRed Express, DsRed Tandem-Dimer2, dTomato, DY-547, DY-554, DY-555, E2-Orange, FluoSpheres® Orange, HCS CellMask Orange, HiLyte Fluor 555, HiLyte Plus 555, Magnesium Orange, Merocyanine 540, MitoTracker® Orange, mOrange, mOrange2, OFP, PO-PRO-3, Pontamine Fast Scarlet 4B, POPO-3, Pro-Q® Diamond, PromoFluor-546, PromoFluor-555, Quasar® 570, R-phycoerythrin, Rhod-2, Rhodamine (phalloidin), Rhodamine B, Rose Bengal, Spectrum Orange, SYTOX® Orange, TagRFP, tdTomato, Tetramethylrhodamine (TAMRA, TRITC), TurboRFP.
Optimized Coatings and Engineering Expertise
Newport pushed the boundaries with the introduction of our ODiate Fluorescence Filter Sets, to allow customers to fully optimize their system performance. Our expert engineering team has been involved from the first stage of design to ensure that we exceed your requirements and continues through the entire process of continual production deliveries.
Environmental Stability and Physical Durability
The coating systems used to produce ODiate filters use a dense sputtering process to provide robust environmental reliability to meet the highest demands for thin-film coatings. The resulting highly durable coatings meet or exceed testing procedures including humidity, thermal shock, adhesion, chemical resistance, and moderate abrasion per U.S. Military and international standards.
Specifications
- TypeFluorescence Excitation Filter
- FluorophoresTRITC
- MaterialBOROFLOAT® 33
- Center Wavelength539 nm
- FWHM31 nm
- Angle of Incidence0°±5°
- Cone Half-angle<7°
- SizeØ25.0 mm
- Size Tolerance+0.0/-0.1 mm
- Thickness2.0 mm (substrate)
3.5 mm (housing) - Thickness Tolerance±0.1 mm
- Surface Quality60-40 scratch-dig

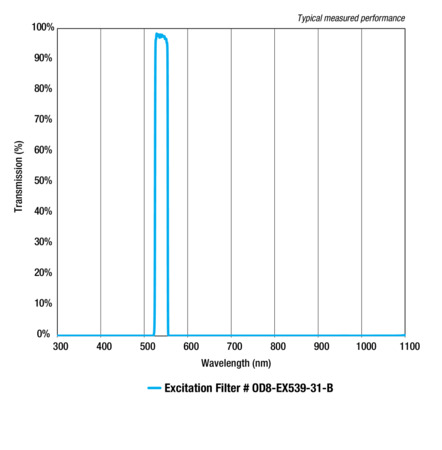

- Transmission≥ 96% avg, 526 - 552 nm
- Parallelism≤10 arc seconds
- Humidity ResistancePer MIL-STD-810E, method 507.3, procedure III, modified to 5 cycles
- Enhanced Emission Blocking Range≥ OD10 avg, 569 - 617 nm (verified as ≥ OD8 avg)
- Blocking Range #1≥ OD6 avg, 300 - 513 nm
- Blocking Range #2≥ OD4 @ 560.5 nm
- Blocking Range #3≥ OD6 avg, 563 - 900 nm
- Blocking Range #4≥ OD3 avg, 900 - 1100 nm
- Temperature Range-50 to 100°C
