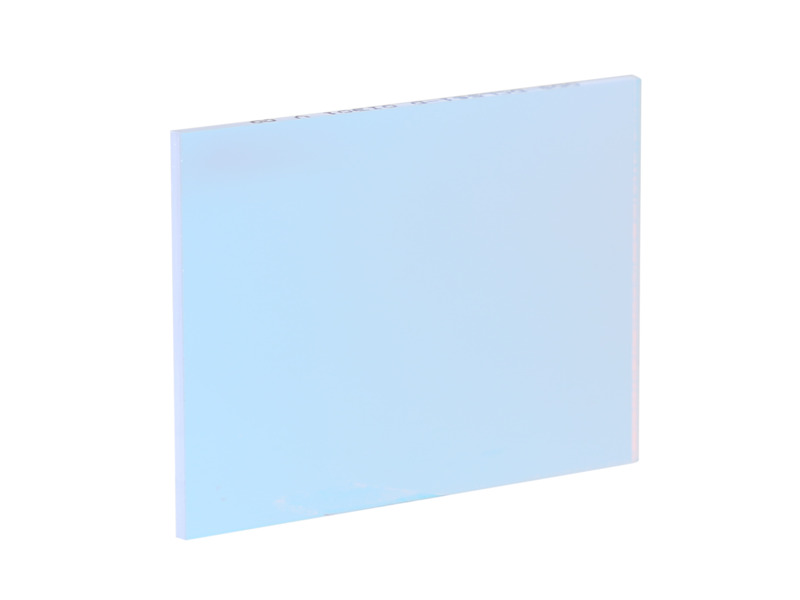

ODiate® Dichroic Beamsplitter, 25.2x35.6 mm, 561 nm 50% Cut-on Edge Wavelength
Model: OD8-DCL561-D
Product Series Overview
ODiate® Fluorescence Dichroic BeamsplittersThe OD8-DCL561-D Dichroic Beamsplitter is specified to reflect the excitation and transmit the emission of TRITC and supports similar alternative fluorophores, designed in conjunction with
Alternate Fluorophores
In addition to TRITC the following fluorophores are also compatible with this set:
5-TAMRA (MeOH), Abberior CAGE 552 (uncaged), Abberior FLIP 565 (on state), Alexa Fluor® 546, Alexa Fluor® 555, ATTO 550, BODIPY® TMR-X, C3-Thiacyanine (EtOH), C3-Thiacyanine (PrOH), Calcium Orange, CellMask Orange, CF 543, CF 555, CF 568, Cy®3, DiI, DiIC18 (3), DsRed, DsRed Express, DsRed Tandem-Dimer2, dTomato, DY-547, DY-554, DY-555, E2-Orange, FluoSpheres® Orange, HCS CellMask Orange, HiLyte Fluor 555, HiLyte Plus 555, Magnesium Orange, Merocyanine 540, MitoTracker® Orange, mOrange, mOrange2, OFP, PO-PRO-3, Pontamine Fast Scarlet 4B, POPO-3, Pro-Q® Diamond, PromoFluor-546, PromoFluor-555, Quasar® 570, R-phycoerythrin, Rhod-2, Rhodamine (phalloidin), Rhodamine B, Rose Bengal, Spectrum Orange, SYTOX® Orange, TagRFP, tdTomato, Tetramethylrhodamine (TAMRA, TRITC), TurboRFP.
Optimized Coatings and Engineering Expertise
Newport pushed the boundaries with the introduction of our ODiate Fluorescence Filter Sets, to allow customers to fully optimize their system performance. Our expert engineering team has been involved from the first stage of design to ensure that we exceed your requirements and continues through the entire process of continual production deliveries.
Environmental Stability and Physical Durability
The coating systems used to produce ODiate filters use a dense sputtering process to provide robust environmental reliability to meet the highest demands for thin-film coatings. The resulting highly durable coatings meet or exceed testing procedures including humidity, thermal shock, adhesion, chemical resistance, and moderate abrasion per U.S. Military and international standards.

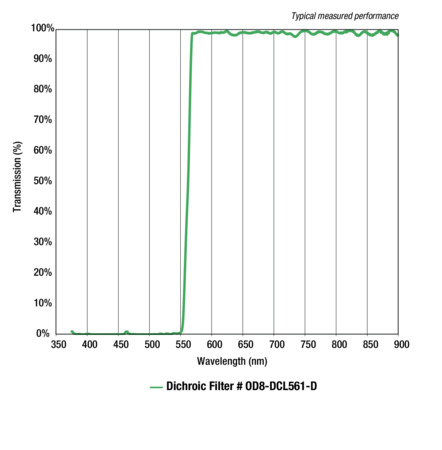

Specifications
- TypeFluorescence Dichroic Beamsplitter
- Cut-on/Cut-off Wavelength560.5 nm (50%)
- Reflectance Band≥98% avg, 526-553.5 nm
≥98% avg, 375-553.5 nm - Transmittance Band≥96% avg, 567.5-617 nm
≥95% avg, 567.5-900 nm - Transmitted Beam Deviation≤ 1 wave PV @ 632.8 nm
- Angle of Incidence45°±1.5°
- Cone Half-angle< 2°
- MaterialFused Silica
- Size25.2 x 35.6 mm
- Size Tolerance±0.1 mm
- Thickness1.0 mm
- Thickness Tolerance±0.1 mm
- Surface Quality60-40 scratch-dig
- Parallelism≤ 5 arcsecond
- FluorophoresTRITC
- Humidity ResistancePer MIL-STD-810E, method 507.3, procedure III, modified to 5 cycles
- Operating Temperature-50 to 100°C
- Cleaning
Resources & Downloads
Literature
ODiate Fluorescence Filter Sets Datasheet(1.7 MB, PDF)
Other
OD8-DCL561-D TRITC Plots(428.1 kB, XLSX)
