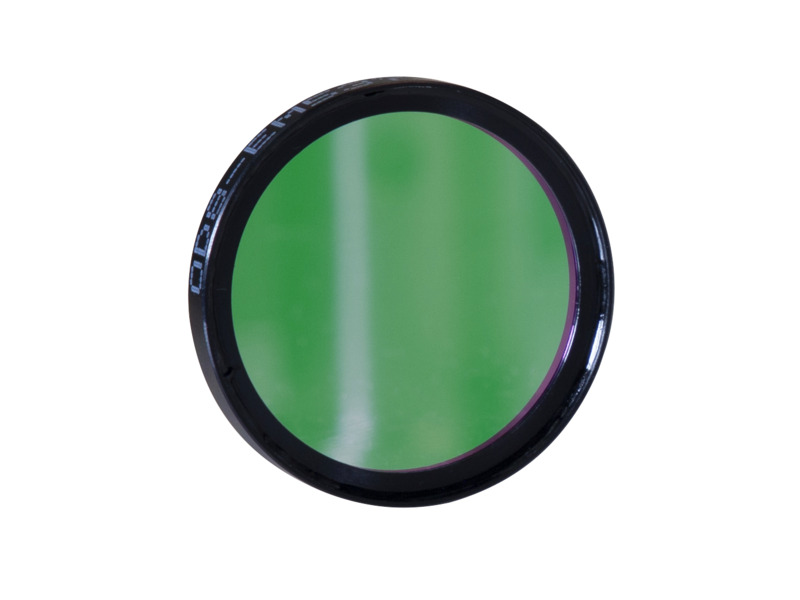

ODiate® Emission Filter, 25.0 mm, 537 nm CWL, 46 nm FWHM
The OD8-EM537-46-B Emission Filter is specified for emission of FITC and supports similar alternative fluorophores, designed in conjunction with and . The filter is manufactured to provide maximum signal and sensitivity delivering exceptionally high passband transmission ≥ 96% avg for 537 nm CWL and 46 nm FWHM and enhanced blocking ≥ OD10 avg over the corresponding excitation passband.
Specifications

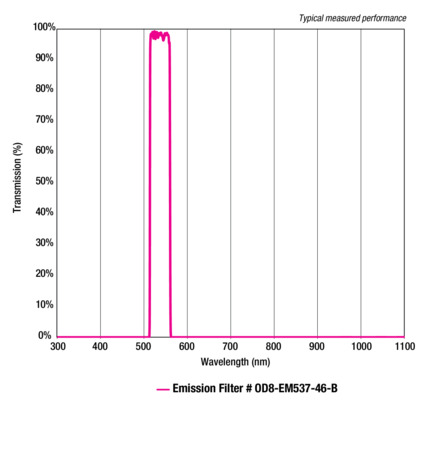

Transmission
≥ 96% avg, 515.5-557.5 nm
Parallelism
≤10 arc seconds
Humidity Resistance
Per MIL-STD-810E, method 507.3, procedure III, modified to 5 cycles
Enhanced Excitation Blocking Range
≥ OD10 avg, 464.5-500.5 nm (verified as ≥ OD8 avg)
Blocking Range #1
≥ OD6 avg, 300 – 506.2 nm
Blocking Range #2
≥ OD4 @ 508.5 nm
Blocking Range #3
≥ OD6 avg, 574.2 – 900 nm
Blocking Range #4
≥ OD3 avg, 900 – 1100 nm
Temperature Range
-50 to 100°C
