Driver Cables for ILX and Newport Laser Diode Instruments

These cables are used to connect to ILX Lightwave^® and Newport laser diode instruments to laser diode mounts, specifically for laser diode driving current. These cables are EMS shielded for maximum protection of the sensitive devices from environment, and include the proper connectors for use with ILX and Newport products.

ILX Lightwave Instruments and Newport Cables
Laser Diode Driver Cables
Terminated, Unterminated, Pulsed Compatible Cables

See All Features

Show Filters:

Showing 10 of 19 total products

Compatibility:

Description	Compatibility	Type	Maximum Current	Connector Type	Length	Quantity	Avail.	Price
500-02Cable, Laser Diode Driver, DB9 Male to Bare Wire	UNIVERSAL	Laser Driver Unterminated Cable	5A	DB9 Male to Bare Wire	6ft (1.8m)	1	In Stock	$60

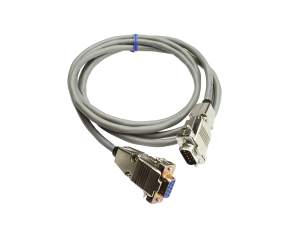

500-04Cable, Laser Diode Driver, DB9 Male to DB9 Female	UNIVERSAL	Laser Driver to Mount Cable	5A	DB9 Male to DB9 Female	6ft (1.8m)	1	In Stock	$95

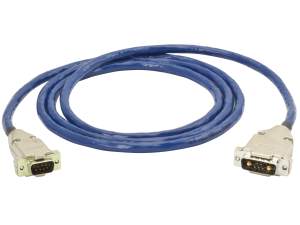

CC305HCable, Laser Driver to Mount, 6 Amp, 7W2 Male to DB9 Male	UNIVERSAL	Laser Driver to Mount Cable	6A	7W2 Male to DB9 Male	6ft (1.8m)	1	3 Weeks	$195

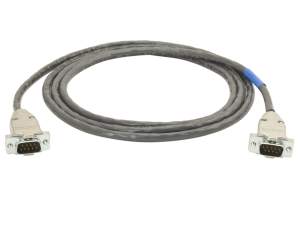

CC305SCable, Laser Driver to Mount, 5 Amp, DB9 Male to DB9 Male	UNIVERSAL	Laser Driver to Mount Cable	5A	DB9 Male to DB9 Male	6ft (1.8m)	1	In Stock	$125

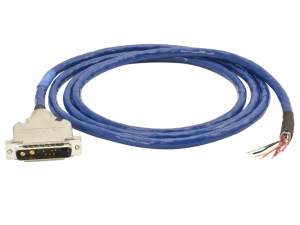

CC306HCable, Laser Diode Driver, 6 Amp, 13W3 Male to Bare Wire	UNIVERSAL	Laser Driver Unterminated Cable	6A	13W3 Male to Bare Wire	6ft (1.8m)	1	In Stock	$315

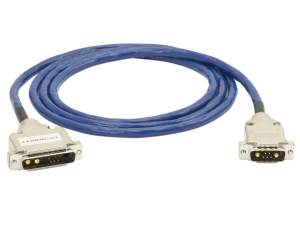

CC306HTCable, Laser Driver to Mount, 6 Amp, 13W3 Male to 7W2 Male	UNIVERSAL	Laser Driver to Mount Cable	6A	13W3 Male to 7W2 Male	6ft (1.8m)	1	In Stock	$230

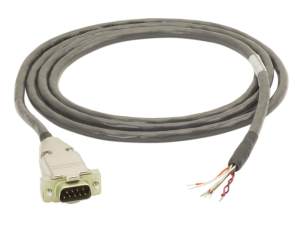

CC306SCable, Laser Diode Driver, 5 Amp, DB9 Male to Bare Wire	UNIVERSAL	Laser Driver Unterminated Cable	5A	DB9 Male to Bare Wire	6ft (1.8m)	1	In Stock	$100

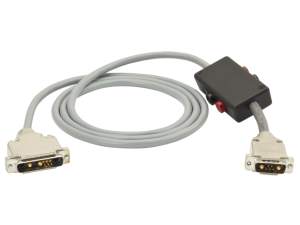

CC308HCable, Laser Driver to Mount, 20 Amp, 9W4 Male to 7W2 Male	UNIVERSAL	Laser Driver to Mount Cable	20A	9W4 Male to 7W2 Male	5ft (1.5m)	1	In Stock	$245
CC316MCable, Laser Driver to Mount, 5 Amp, DB9 Male to DB9 Male, 8-Pack	UNIVERSAL	Laser Driver to Mount Cable Bundle	5A	DB9 Male to DB9 Male	4.5ft (1.3m)	8	In Stock	$875

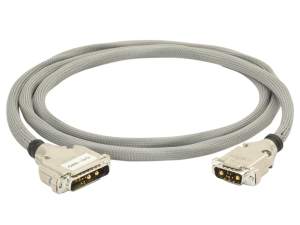

CC320Cable, Laser Driver to Mount, 40 Amp, 9W4 Male to 7W2 Male	UNIVERSAL	Laser Driver to Mount Cable	40A	9W4 Male to 7W2 Male	6ft (1.8m)	1	In Stock	$310

Show All

Resources

Technical Notes

Voltage Drop Across High Current Interconnect Cables(162.3 kB, PDF)
