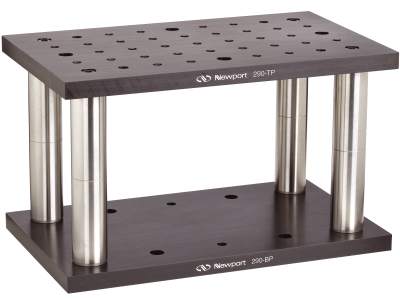

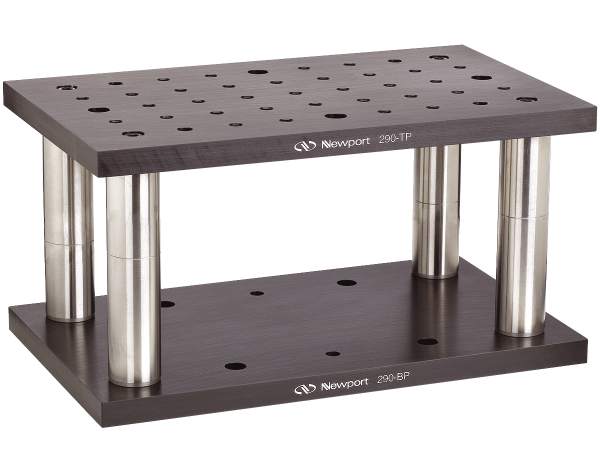

290 Series Platforms provide stable, fixed-height mounting for large components and assemblies. The 6 x 10 in. (152.4 x 254 mm) platforms are comprised of thick anodized aluminum plates mounted atop four rigid 1 in. (25.4 mm) diameter stainless steel posts.
Stable, fixed height platform for large components
Rigid stainless steel posts
4 in. (100.4 mm), 6 in. (150.4 mm), or 8 in. (200.4 mm) heights
Additional CAD file downloads are not available for this product.
fixed-height-optical-platforms - Drawings
Additional drawings are not available for this product.
Specifications
Type
Platform Assembly
Thread Type
1/4-20, M6
Material
Aluminum
Features
Stable Fixed Height Mounting Platform
290 Series platforms use 1.0 inch (25.4 mm) diameter pedestal pillars and 0.5 inch (12.7 mm) thick solid aluminum breadboard plates to create very stable mounting platforms at a fixed 4 in. (100.4 mm), 6 in. (150.4 mm), or 8 in. (200.4 mm) height. They are available with metric or Imperial threads.
Versatile Top Mounting Plate

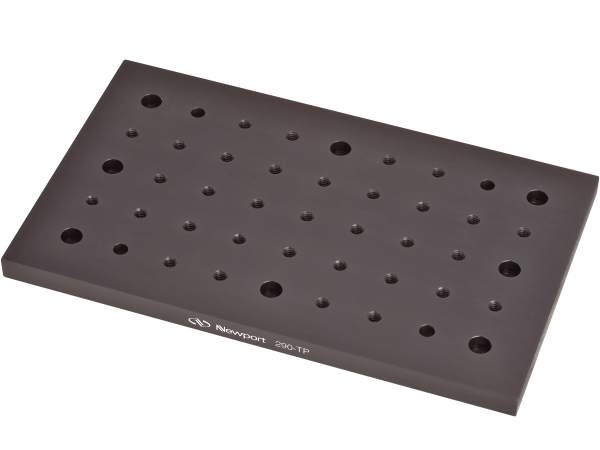

The top plate has an array of tapped and clearance mounting holes for attaching components. The bottom plate has two rows of clearance holes for tie-down to tables or magnetic bases. Both plates are included with the assembly and can be also ordered independently.
Accessories

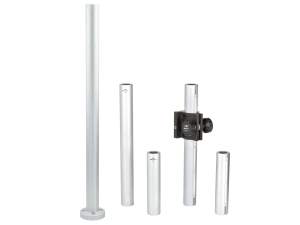

Platform Pillars
Compare
Description
Compatibility
Drawings, CAD & Specs
Avail.
Price
P-3Optical Post, 3 in. Height, 1 in. Diameter, 1/4-20, 290 Series Platform
IMPERIAL
In Stock
$36.00
P-5Optical Post, 5 in. Height, 1 in. Diameter, 1/4-20, 290 Series Platform
IMPERIAL
In Stock
$49.00
P-7Optical Post, 7 in. Height, 1 in. Diameter, 1/4-20, 290 Series Platform
IMPERIAL
In Stock
$68.00
M-P-3Optical Post, 75 mm Height, 25.4 mm Diameter, M6, 290 Series Platform
METRIC
In Stock
$36.00
M-P-5Optical Post, 125 mm Height, 25.4 mm Diameter, M6, 290 Series Platform
METRIC
In Stock
$49.00
M-P-7Optical Post, 175 mm Height, 25.4 mm Diameter, M6, 290 Series Platform
