Top Plate, Fixed Height Platform, 6 x 10 in., 1/4-20 Thread, (12) 1/4-20 CLR.

Top Plate, Fixed Height Platform, 6 x 10 in., 1/4-20 Thread, (12) 1/4-20 CLR.

Model: 290-TP

$165

In Stock

Compare

Add to List

Product Series Overview

Mounting Plates and Platforms

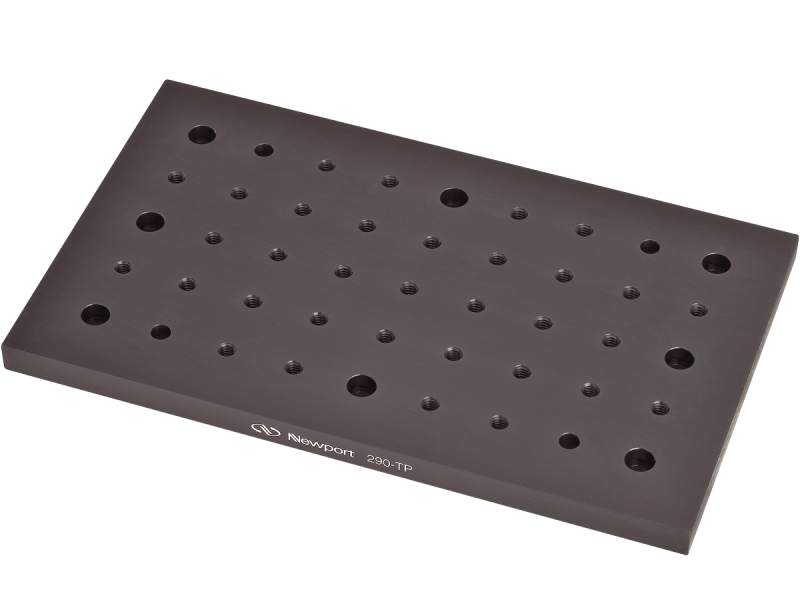

The 290-TP Top Plate is 6.0 x 10.0 in. and has (12) 1/4-20 CLR holes, and (33) 1/4-20 thread holes. It is part of the 290 Series Fixed Height Platform Assemblies.

Specifications

Technical Specs

Type

Top Plate
Height

12.7 mm
Length

254 mm
Width

152.4 mm

Thread Type

1/4-20
Material

Aluminum

Type

Top Plate
Height

12.7 mm
Length

254 mm
Width

152.4 mm

Thread Type

1/4-20
Material

Aluminum

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

290-TP-DWG-S.pdf (90.1 kB, PDF)

Other

RoHS Certificate (684.5 kB, PDF)
