Overview

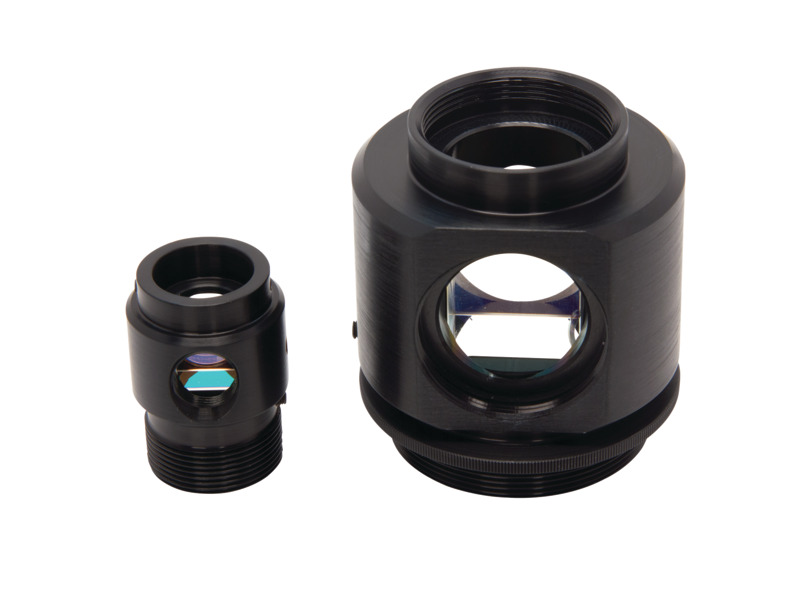

These cube beam splitter adaptors can be used as stand-alone fixed mounts, but are designed to work with LP-Series Lens Mounts. Their modular design allows optics that are commonly used with beamsplitters, such as wave plates, polarizers, filters, lenses, and mirrors to be quickly attached to create variable attenuators, optical isolators or T-splitters.

Adapt optical cubes to Newport's lens and rotation mounts
Integrate cube beamsplitters & round optics into a single unit
Post-mountable for simple fixed Cube mounting

See All Features

Products

Compare	Model	Compatibility	rankScore	Mounting	Availability	Price	Brand
BSP025 Cube Beamsplitter Holder, 0.25 in. Cube, 1.035-40 Threaded Mounts $49 In Stock	BSP025 Cube Beamsplitter Holder, 0.25 in. Cube, 1.035-40 Threaded Mounts	UNIVERSAL	1.0	1.035-40	In Stock	$49	Newport
BSP05 Cube Beamsplitter Holder, 0.5 in. Cube, 1.035-40 Threaded Mounts $49 In Stock	BSP05 Cube Beamsplitter Holder, 0.5 in. Cube, 1.035-40 Threaded Mounts	UNIVERSAL	1.0	1.035-40	In Stock	$49	Newport

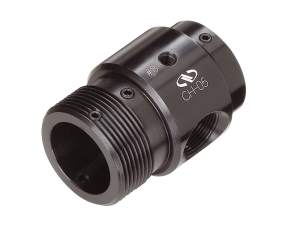

CH-0.5 Cube Beamsplitter Holder, 0.5 in. Cubes, 1.063-20 Threaded Mounts $161 In Stock	CH-0.5 Cube Beamsplitter Holder, 0.5 in. Cubes, 1.063-20 Threaded Mounts	UNIVERSAL	1.0	1.063-20	In Stock	$161	Newport
CH-1 Cube Beamsplitter Holder, 1.0 in. Cubes, 2.063-20 Threaded Mounts $288 In Stock	CH-1 Cube Beamsplitter Holder, 1.0 in. Cubes, 2.063-20 Threaded Mounts	UNIVERSAL	1.0	2.063-20	In Stock	$288	Newport

Show All

Features

Quarter and Half Inch Cube Beamsplitter Holders

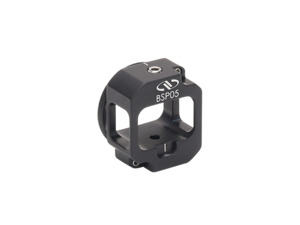

The BSP025 and BSP05 Cube Beamsplitter Holder are designed to mount a 0.25 or 0.5 in. cube beamsplitter to an optomechanical component with SM1 (1.035"-40) thread. They are compatible with LP Series compact multi-axis lens positioners and LT Series lens tube system.

LP6X-1H with BSP05

Build Useful Optical Assemblies

The modular design of the CH Series cube mounts allows additional optics that are commonly used with beamsplitters, such as wave plates, polarizers, filters, lenses, and mirrors to be quickly attached to create variable attenuators, optical isolators, or T-splitters.

These cube beam splitter adaptors are also compatible with LP-A Series precision multi-axis lens positioners and a variety of rotation stages with matching threads, which include high-performance 481-A, RSP, and low-profile RS65 Series.

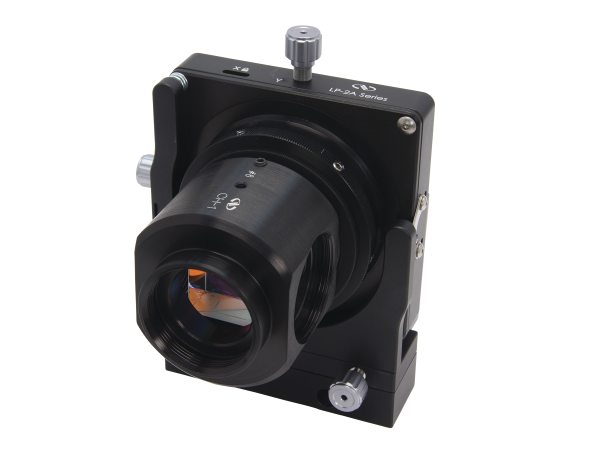

LP-2A with CH-1

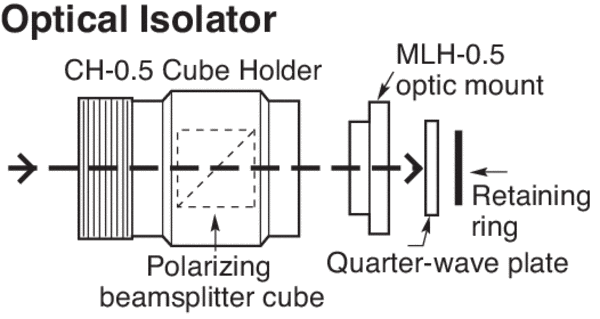

Optical Isolator Application

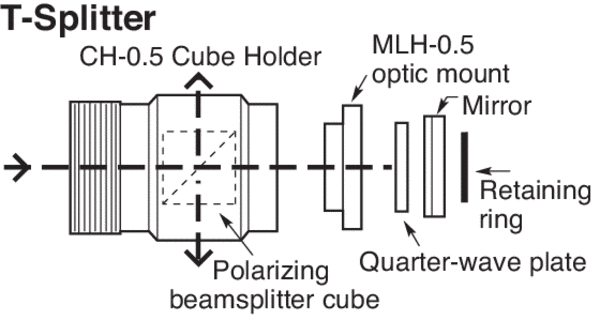

T-Splitter Application

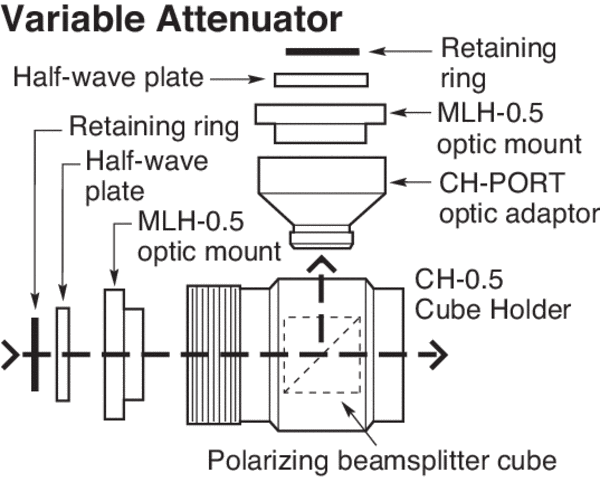

Variable Attenuator Application

Lens Tube System Application

Integrate Standard Optics with Ease

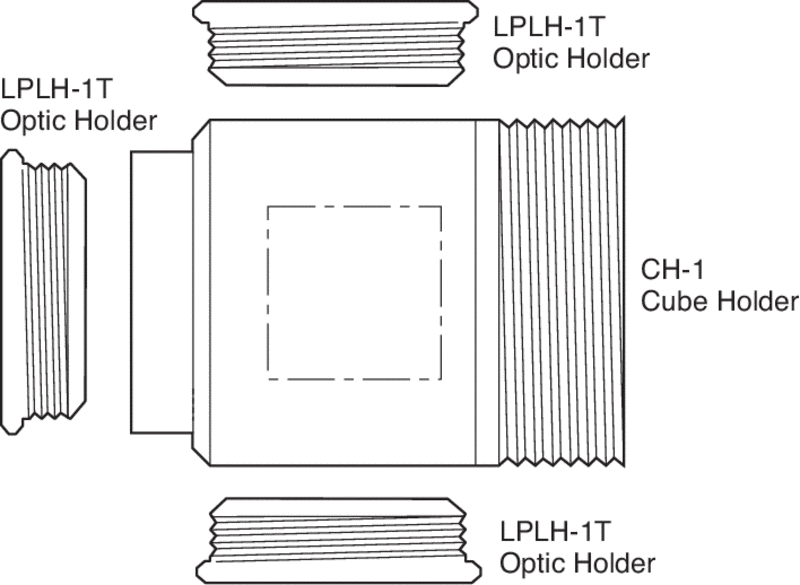

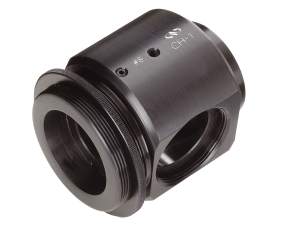

The CH-1 Beamsplitter Cube Holder’s aluminum housing contains an internal 25.4 mm beamsplitter holder (beamsplitter not included). Ports allow optics to be positioned in beam entry and exit paths. Standard 1 in. (25.4 mm) optics may be quickly attached to Cube Holder ports using Newport LPLH-1T optic holders, which attach to the side ports.
