Compare Model Drawings, CAD & Specs Availability Price

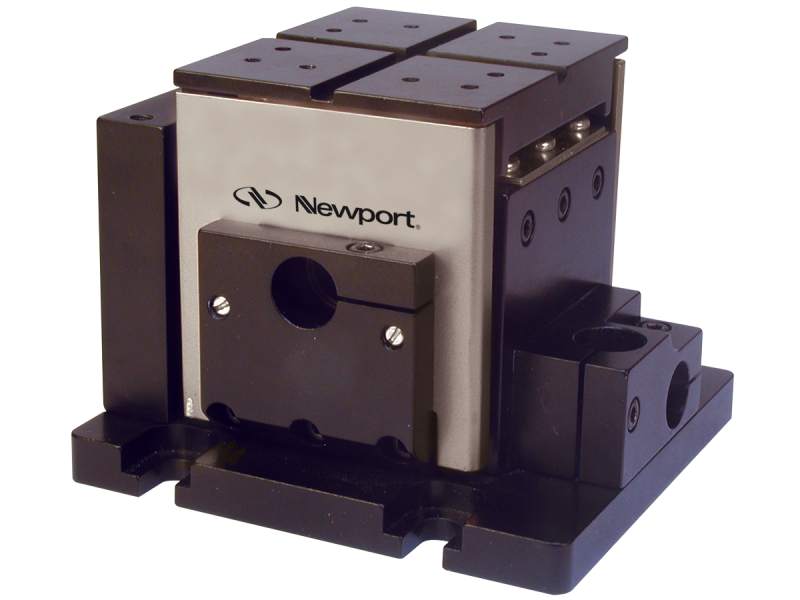

466A
Fiber Alignment Stage, Right-Handed, Flexure, 2 mm XYZ Travel, 6-32
$1,301
In Stock
 466A Fiber Alignment Stage, Right-Handed, Flexure, 2 mm XYZ Travel, 6-32
In Stock
 $1,301
466A-LH
Fiber Alignment Stage, Left-handed, Flexure, 2 mm XYZ Travel, 6-32
$1,301
In Stock
 466A-LH Fiber Alignment Stage, Left-handed, Flexure, 2 mm XYZ Travel, 6-32
In Stock
 $1,301
M-466A
Fiber Alignment Stage, Right-Handed, Flexure, 2 mm XYZ Travel, M3
$1,301
In Stock
 M-466A Fiber Alignment Stage, Right-Handed, Flexure, 2 mm XYZ Travel, M3
In Stock
 $1,301

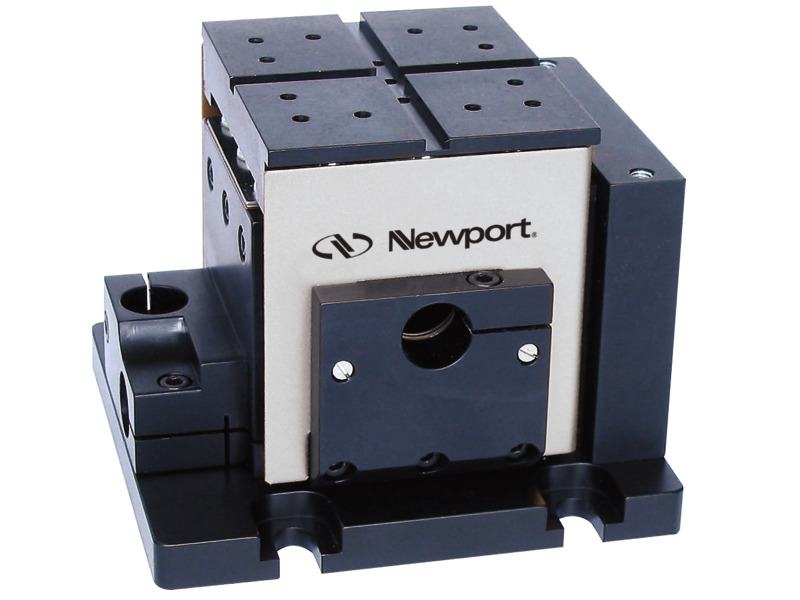

M-466A-LH
Fiber Alignment Stage, Left-Handed, Flexure, 2 mm XYZ Travel, M3
$1,301
In Stock
 M-466A-LH Fiber Alignment Stage, Left-Handed, Flexure, 2 mm XYZ Travel, M3
In Stock
 $1,301
Notes:

Three actuators are required and are not included. Please see specifications for recommended actuators.

Specifications

Features

Stictionless, Continuous Motion in a Compact Stage

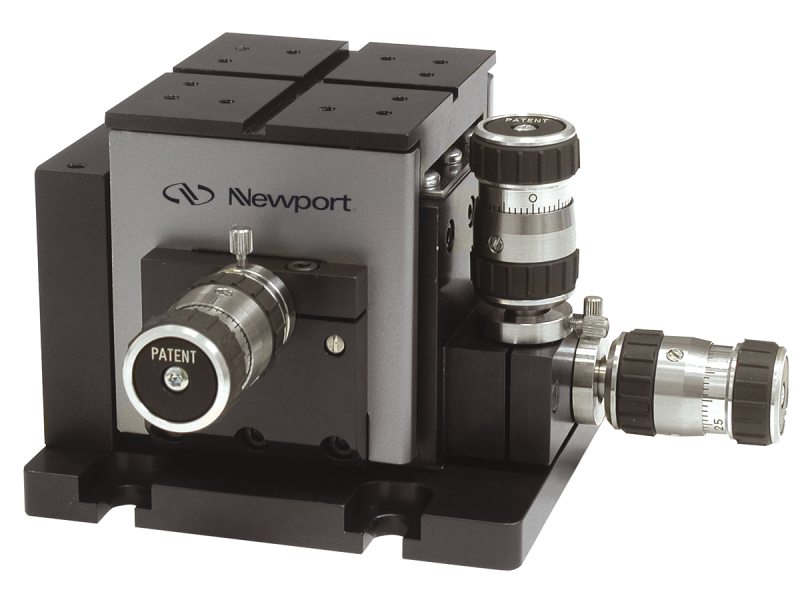

The 466A Series XYZ Flexure Stage is developed directly from the original flexure design, patented by Martock Design (now a subsidiary of Elliot Scientific). Flexure stages do not rely on bearing a mechanism and have the advantage of providing stictionless motion which makes them ideal for high precision device manipulation. The innate arcuate displacement (vertical displacement due to longitudinal flexure motion) is up to 4 times better than competing products, with a maximum of 20 µm at full displacement in the x axis. For the Y and Z axes, this value is 14 µm.

Compatible With Manual and Motorized Actuators

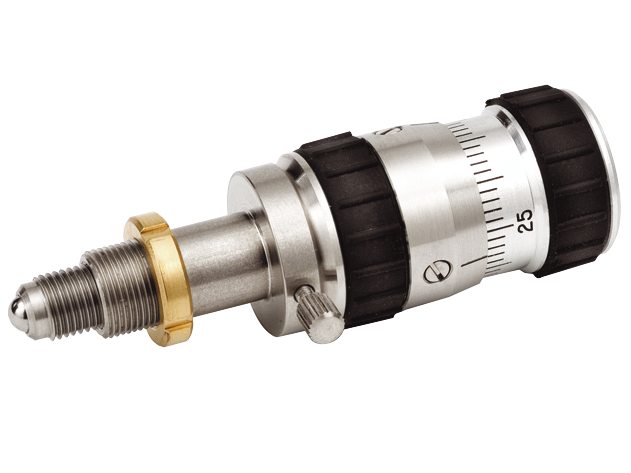

Each axis of the 466A Series Flexure Stage is compatible with a number of both manual and motorized actuators for positioning control, providing customization for individual resolution or cost requirements. The most frequently selected actuator for this stage is the DS-4F due to its exceptionally precise sub-micron sensitivity. Please note that actuators are not included with these stages.

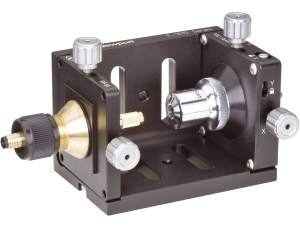

Specially Designed Accessories Mount Securely with Guiding Grooves

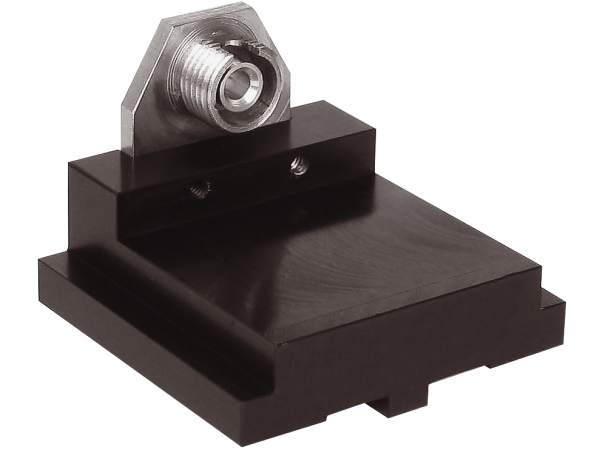

The mounting surface of this alignment stage features an array of 6-32 (M3) threaded holes and orthogonal, bisecting grooves which guide a wide variety of specially designed flexure alignment stage accessories for precise and secure mounting.
