MTN Series High Load Capacity Steel Brushless DC Motor Linear Translation Stages

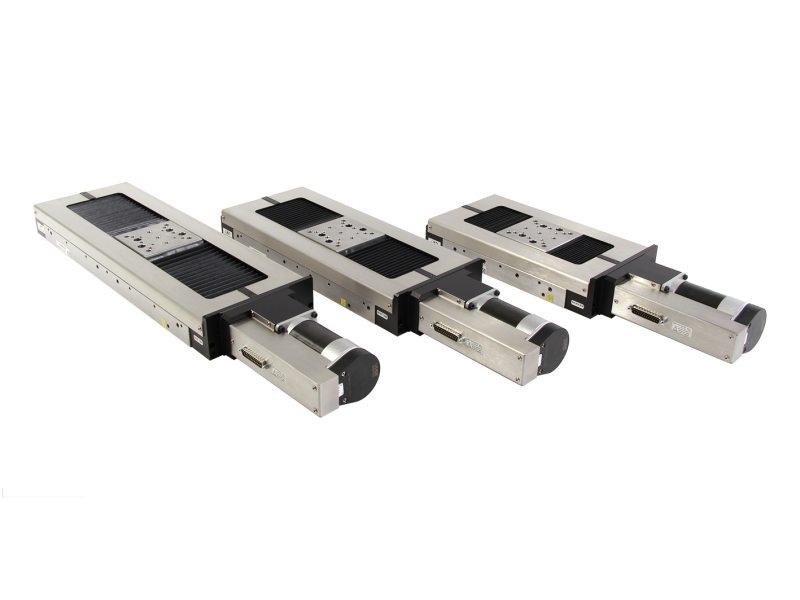

MTN brushless DC motor linear stages are durable, all-steel construction positioners with exceptional load capacity, stiffness and thermal stability. They are designed for applicatons that require moving heavy loads with high speed and repeatbility over 100-, 200- or 300-mm travel ranges.

100 kg centered and 100 N axial high load capacity
All steel construction offers high stiffness and thermal stability
Ball screw design for equal axial load capacity in both directions

See All Features

Description	Compatibility	Travel Range	Avail.	Price

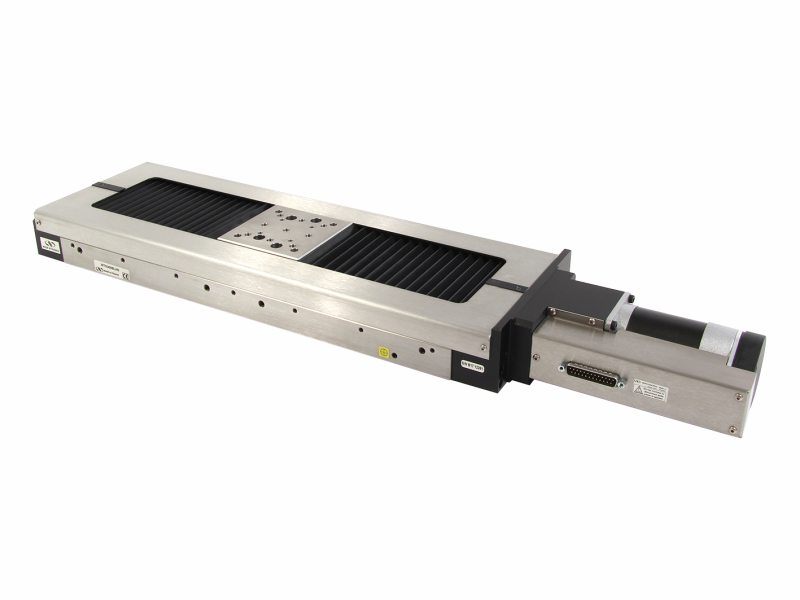

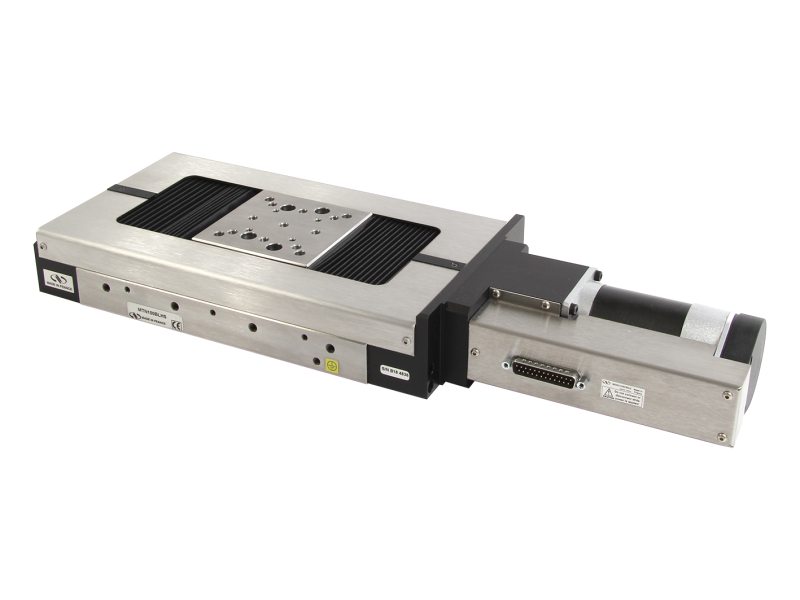

MTN100BLHSMotorized Linear Stage, Steel, Brushless DC Motor, 100 mm Travel, M4 and M6	UNIVERSAL	100 mm	In Stock	$12,358

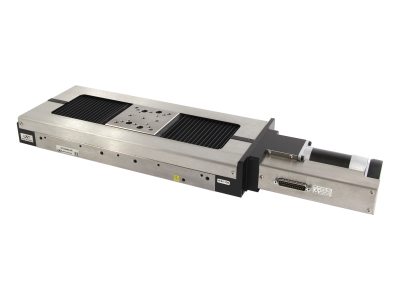

MTN200BLHSMotorized Linear Stage, Steel, Brushless DC Motor, 200 mm Travel, M4 and M6	UNIVERSAL	200 mm	8 Weeks	$12,761
MTN300BLHSMotorized Linear Stage, Steel, Brushless DC Motor, 300 mm Travel, M4 and M6	UNIVERSAL	300 mm	3 Weeks	$13,509

Notes:

Closed-loop DC Motor and Stepper Motor versions are also available.

Compatible Controllers

Compatible motion controllers for the MTN-BLHS brushless DC motor-driven stages are:

XPS-RLD Motion Controller ( or Axis): Requires an High-Power Amplifier.
XPS-D Motion Controller (, , or Axis): Requires an High-Power Amplifier.

Specifications

Models
Travel Range	100 mm	200 mm	300 mm
Maximum Speed	250 mm/s	250 mm/s	250 mm/s
Minimum Incremental Motion	300 nm	300 nm	300 nm
Centered Load Capacity	1000 N	1000 N	1000 N
Axial Load Capacity (+Cx)	200 N	200 N	200 N
Inverse Axial Load Capacity (-Cx)	200 N	200 N	200 N
Holding Force at Power Off	100 N	100 N	100 N
Accuracy, Typical	±2.0 µm	±2.0 µm	±2.0 µm
Accuracy, Guaranteed	±4.0 µm	±4.0 µm	±4.0 µm
Uni-directional Repeatability, Typical	±0.2 µm	±0.2 µm	±0.2 µm
Uni-directional Repeatability, Guaranteed	±0.3 µm	±0.3 µm	±0.3 µm
Bi-directional Repeatability, Typical	±0.3 µm	±0.3 µm	±0.3 µm
Bi-directional Repeatability, Guaranteed	±0.5 µm	±0.5 µm	±0.5 µm
Pitch, Typical	±10 µrad	±20 µrad	±30 µrad
Pitch, Guaranteed	±20 µrad	±40 µrad	±60 µrad
Yaw, Typical	±10 µrad	±17 µrad	±30 µrad
Yaw, Guaranteed	±17 µrad	±35 µrad	±53 µrad
Compliance in Pitch	6 µrad/Nm	6 µrad/Nm	6 µrad/Nm
Compliance in Yaw	5 µrad/Nm	5 µrad/Nm	5 µrad/Nm
Compliance in Roll	4 µrad/Nm	4 µrad/Nm	4 µrad/Nm
Cable Length	3 m	3 m	3 m
Weight	10.5 kg	12.9 kg	15.4 kg
MTBF	20,000 h (25% load, 30% duty cycle)	20,000 h (25% load, 30% duty cycle)	20,000 h (25% load, 30% duty cycle)

Features

Brushless DC Motor Drive

For even faster speed and finer repeatability, Newport offers a brushless DC motor version of the MTN. Its centered load capacity of 1000 N is the same as the other types of MTN stages - Stepper and DC versions. To provide the high power required to drive the brushless DC motor, an XPS controller with driver card must be used to control this stage. (Note: the brushless DC motor is not ESP-compatible.)

All Steel Stage Body

The all steel construction allows for extreme stiffness and thermal stability. Because the entire body is made from steel, bi-metallic bending effects and errors are eliminated. Among the all steel linear stages, the MTN boasts the highest load capacity at 100 kg.

Non-migrating Ball Cage Design

The non-migrating ball cage design eliminates cage drift, particularly in vertical applications, to enhance reliability.

Multi-Axis Stage Stacks and Table Mounting

For XY configurations of MTN stages, use the captive screws. The same screws can also be used for bolting MTN stages directly to custom mounting surfaces via thru-holes at the carriage. For mounting MTN stages to optical tables, please use the base plate.

MTN Stage Load Characteristics

Individual Stage Metrology Report is Included

Newport guarantees specification values which are measured and recorded following ASME B5.57 and ISO 230-2 standards. The typical performance values are two times better than the guaranteed specifications.

MTN Motor Options

MTN Series stages are available with Stepper, DC, or Brushless DC motors.

Stepper Motor (MTN-PP): Stepper Motors are a lower cost alternative to DC motor systems for less demanding applications. Micro-stepping is used to improve resolution and smoothness of motion.
DC Motor (MTN-CC): DC Motors are best characterized by their high speeds, smooth motion, good efficiency and a high power/weight ratio. They are preferable to stepper motor stages for applications requiring high dynamic speed and tight repeatability.
Brushless DC Motor (MTN-BLHS): Brushless DC Motors offer faster speed and finer repeatability than standard DC motors. They are designed for applications that require moving heavy loads with high speed and repeatability

	MTN-PP (Stepper Motor)	MTN-CC (DC Motor)	MTN-BLHS (Brushless DC Motor)
Travel Range (mm)	100 / 200 / 300	100 / 200 / 300	100 / 200 / 300
Maximum Speed (mm/s)	40	100	250
Minimum Incremental Motion (nm)	100	600	300
Uni-directional Repeatability, Guaranteed (µm)	±0.75	±0.75	±0.3
Bi-directional Repeatability, Typical (Guaranteed) (µm)	±1.75 (±2.75)	±0.75 (±1.5)	±0.3 (±0.5)
Accuracy, Typical (Guaranteed) (µm)	±1.5 (±2.5) / ±2.0 (±2.5) / ±2.5 (±3.0)	±1.5 (±2.5) / ±2.0 (±2.5) / ±2.5 (±3.0)	±2.0 (±4.0)

Ball Screw Design

Ball screw ensures better dynamics and lifetime, as well as equal axial load capacity in both directions.

Accessories

MTN Stage Mounting Accessories

Description	Compatibility	Avail.	Price
MTN-TPTop Plate, MTN Series Linear Stages	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$395
MTN-BPBase Plate, MTN Series Linear Stages	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$546
EQ160Right-Angle Bracket, MTN Series linear Stages	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,242
M-CAP-M61Captive Screws, MTN XY Mounting	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$77

Accessories-Cables

Description	Compatibility	Avail.	Price
MCAB-1-BCable, 1 m, DB25 Male to DB25 Female, Brushless DC	UNIVERSAL	Contact Us	$280
MCAB-3-BCable, 3 m, DB25 Male to DB25 Female, Brushless DC	UNIVERSAL	In Stock	$341
MCAB-5-BCable, 5 m, DB25 Male to DB25 Female, Brushless DC	UNIVERSAL	Contact Us	$421
MCAB-10-BCable, 10 m, DB25 Male to DB25 Female, Brushless DC	UNIVERSAL	Contact Us	$669
