Motorized Linear Stage, Steel, Brushless DC Motor, 300 mm Travel, M4 and M6
Motorized Linear Stage, Steel, Brushless DC Motor, 300 mm Travel, M4 and M6
Model: MTN300BLHS
3 Weeks
Product Series Overview

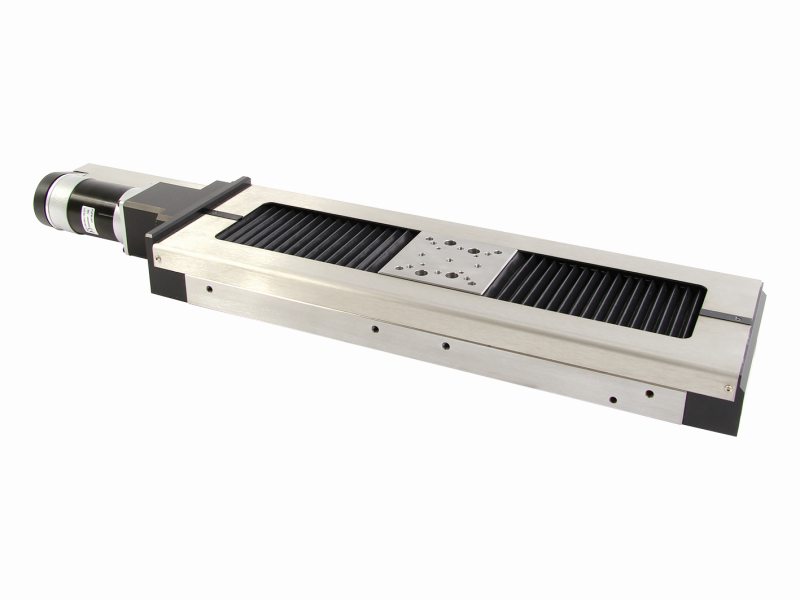

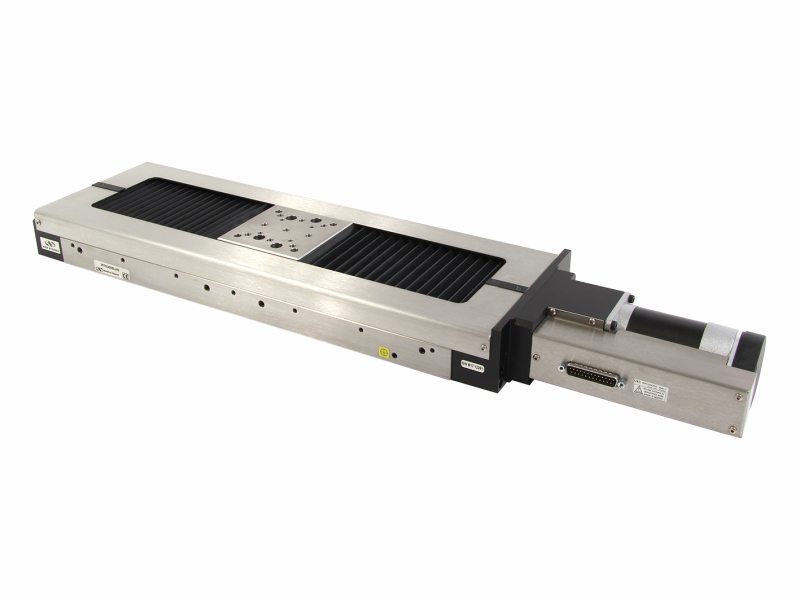

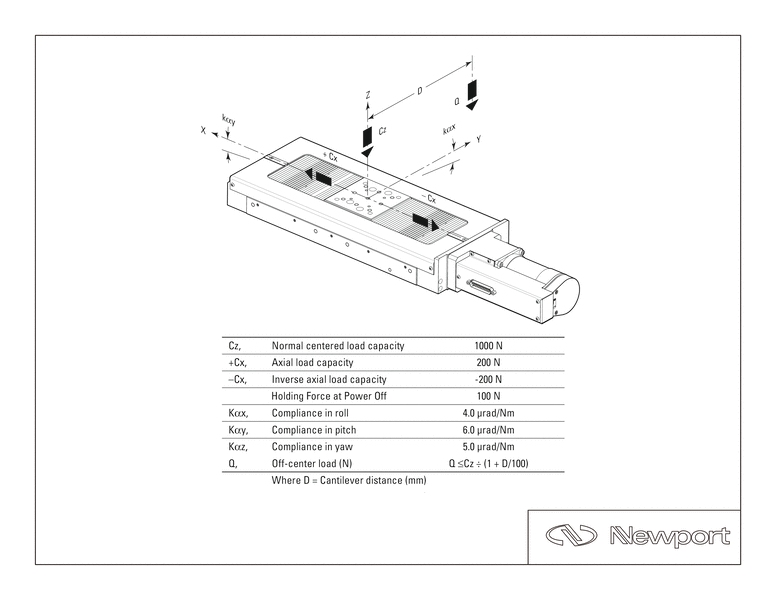

MTN High Load Steel BLDC Motor Linear StagesThe MTN300BLHS is 300 mm travel reliable, all-steel construction stage with excellent stiffness, load capacity and thermal stability. It can bear up to 100 kg centered load, when mounted horizontally and 200 N axial load capacity in both directions. The MTN300BLHS is equipped with linear guides for smooth and accurate motion trajectory ,brushless motor for 250mm/sec max speed and non-migrating ball cage design for no drift. Ideal for applications that require moving heavy loads at high-speeds with very fine repeatability.
All MTN-BLHS stages are delivered with a MCAB-3-B cable, 3-meter cable with a SUB-D25M connector for direct connection to Newport Controllers.
Resources & Downloads
Manuals
MTN-BLHS Linear Stages User's Manual(1.2 MB, PDF)
Related Products
Compatible Controllers
Based on axis required, choose a specific XPS-D or XPS-RLD controller to pair with the stage. Along with the controller, a driver module is required.
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | xps-d-universal-motion-controller1XPS-D Universal High-Performance 1-8 Axis Motion Controller and Driver | |||||
 | xps-rl-universal-high-performance-motion-controller2XPS-RLD Universal High-Performance 1-4 Axis Motion Controller and Driver |
Notes:
- Requires XPS-DRV11BL driver module
- Requires XPS-DRV11BL driver module
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | M-CAP-M61Captive Screws, MTN XY Mounting | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | MTN-BPBase Plate, MTN Series Linear Stages | 2 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | MTN-TPTop Plate, MTN Series Linear Stages | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Accessories-Cables
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | MCAB-1-BCable, 1 m, DB25 Male to DB25 Female, Brushless DC | |||||
| MCAB-3-BCable, 3 m, DB25 Male to DB25 Female, Brushless DC | In Stock | ||||
| MCAB-5-BCable, 5 m, DB25 Male to DB25 Female, Brushless DC | |||||
| MCAB-10-BCable, 10 m, DB25 Male to DB25 Female, Brushless DC |
