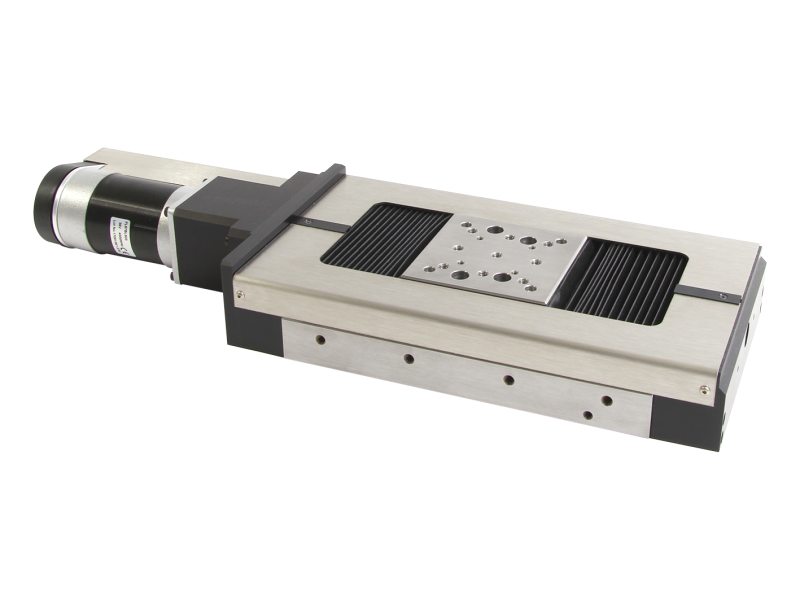

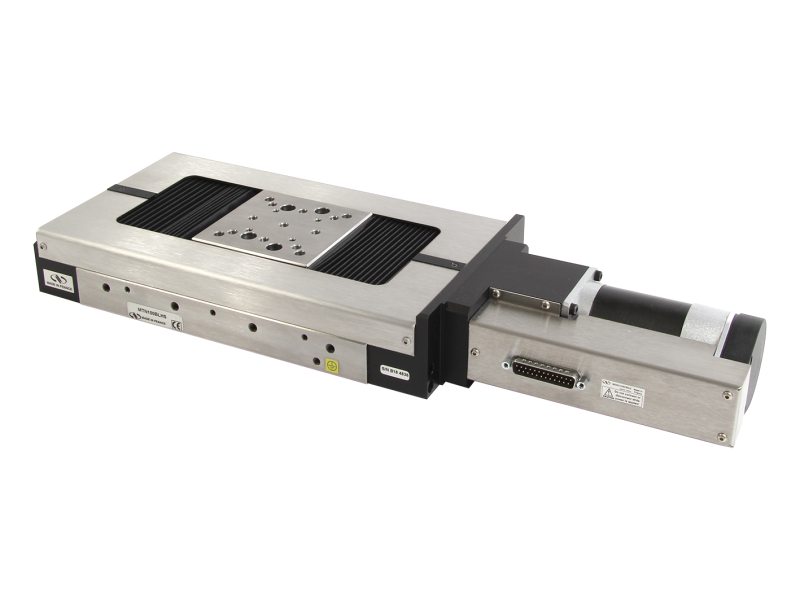

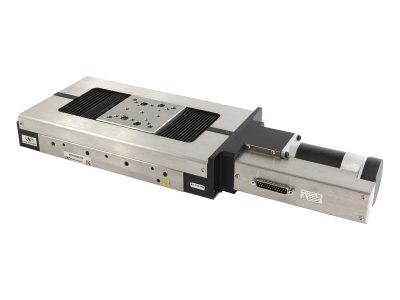

NEW! Mid-Travel Steel Linear Stage, 100 mm, Brushless Motor

Model: MTN100BLHS

NEW! Mid-Travel Steel Linear Stage, 100 mm, Brushless Motor

Model: MTN100BLHS

Technical Specs

  • Travel Range
    100 mm
  • Maximum Speed
    250 mm/sec
  • Minimum Incremental Motion
    0.30 µm
  • Centered Load Capacity
    1000 N
  • Axial Load Capacity (+Cx)
    100 N
  • Inverse Axial Load Capacity (-Cx)
    100 N
  • Accuracy, Typical
    ±2.0 µm
  • Accuracy, Guaranteed
    ±4.0 µm
  • Uni-directional Repeatability, Typical
    ±0.2 µm
  • Uni-directional Repeatability, Guaranteed
    ±0.3 µm
  • Bi-directional Repeatability, Typical
    ±0.3 µm
  • Bi-directional Repeatability, Guaranteed
    ±0.5 µm
  • Pitch, Typical
    ±10 µrad
  • Pitch, Guaranteed
    ±20 µrad
  • Compliance in Pitch
    6 µrad/Nm
  • Yaw, Typical
    ±10 µrad
  • Yaw, Guaranteed
    ±17 µrad
  • Compliance in Yaw
    5 µrad/Nm
  • Compliance in Roll
    4 µrad/Nm
  • Cable Length
    3 m
  • Weight
    10.5 kg
  • MTBF
    20,000 h (25% load, 30% duty cycle)
  • Maximum Power Consumption
    170 W
  • Compatible XPS-RL Driver Module
    No
  • Compatible XPS-D Driver Module
    XPS-DRV11BL
  • XPS-EDBL Compatibility
    No
  • ESP301 Compatibility
    No
  • SMC100 Compatibility
    No
