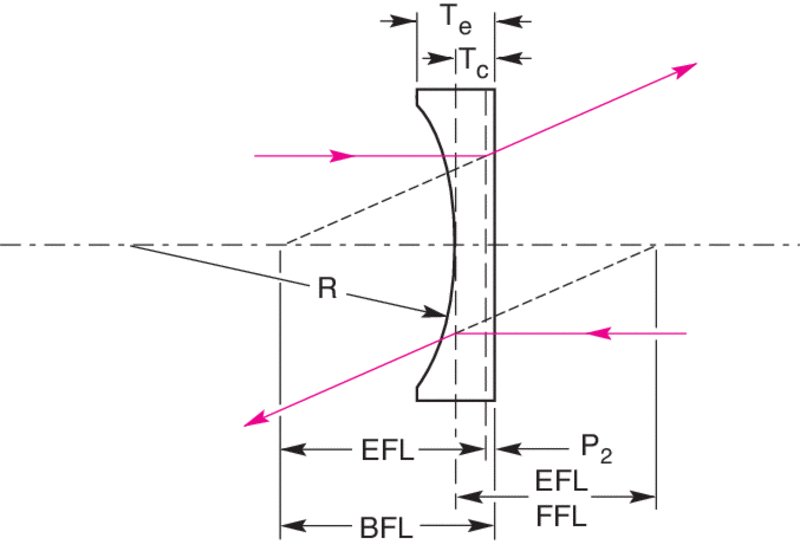

Compare Model Drawings, CAD & Specs Availability Price
KPC010AR.33
Plano-Concave Lens, N-BK7, 6.35 mm Diameter, -25 mm EFL, 1064 nm
$76
In Stock
 KPC010AR.33 Plano-Concave Lens, N-BK7, 6.35 mm Diameter, -25 mm EFL, 1064 nm
In Stock
 $76
KPC013AR.33
Plano-Concave Lens, N-BK7, 6.35 mm Diameter, -12.5 mm EFL, 1064 nm
$76
In Stock
 KPC013AR.33 Plano-Concave Lens, N-BK7, 6.35 mm Diameter, -12.5 mm EFL, 1064 nm
In Stock
 $76
KPC016AR.33
Plano-Concave Lens, N-BK7, 12.7 mm Diameter, -100 mm EFL, 1064 nm
$84
In Stock
 KPC016AR.33 Plano-Concave Lens, N-BK7, 12.7 mm Diameter, -100 mm EFL, 1064 nm
In Stock
 $84
KPC019AR.33
Plano-Concave Lens, N-BK7, 12.7 mm Diameter, -75 mm EFL, 1064 nm
$76
In Stock
 KPC019AR.33 Plano-Concave Lens, N-BK7, 12.7 mm Diameter, -75 mm EFL, 1064 nm
In Stock
 $76
KPC022AR.33
Plano-Concave Lens, N-BK7, 12.7 mm Diameter, -50 mm EFL, 1064 nm
$76
In Stock
 KPC022AR.33 Plano-Concave Lens, N-BK7, 12.7 mm Diameter, -50 mm EFL, 1064 nm
In Stock
 $76
KPC025AR.33
Plano-Concave Lens, N-BK7, 12.7 mm Diameter, -25 mm EFL, 1064 nm
$76
In Stock
 KPC025AR.33 Plano-Concave Lens, N-BK7, 12.7 mm Diameter, -25 mm EFL, 1064 nm
In Stock
 $76
KPC028AR.33
Plano-Concave Lens, N-BK7, 25.4 mm Diameter, -200 mm EFL, 1064 nm
$83
In Stock
 KPC028AR.33 Plano-Concave Lens, N-BK7, 25.4 mm Diameter, -200 mm EFL, 1064 nm
In Stock
 $83
KPC031AR.33
Plano-Concave Lens, N-BK7, 25.4 mm Diameter, -150 mm EFL, 1064 nm
$83
In Stock
 KPC031AR.33 Plano-Concave Lens, N-BK7, 25.4 mm Diameter, -150 mm EFL, 1064 nm
In Stock
 $83
KPC034AR.33
Plano-Concave Lens, N-BK7, 25.4 mm Diameter, -100 mm EFL, 1064 nm
$83
In Stock
 KPC034AR.33 Plano-Concave Lens, N-BK7, 25.4 mm Diameter, -100 mm EFL, 1064 nm
In Stock
 $83
KPC037AR.33
Plano-Concave Lens, N-BK7, 25.4 mm Diameter, -75 mm EFL, 1064 nm
$83
In Stock
 KPC037AR.33 Plano-Concave Lens, N-BK7, 25.4 mm Diameter, -75 mm EFL, 1064 nm
In Stock
 $83
KPC040AR.33
Plano-Concave Lens, N-BK7, 25.4 mm Diameter, -50 mm EFL, 1064 nm
$83
In Stock
 KPC040AR.33 Plano-Concave Lens, N-BK7, 25.4 mm Diameter, -50 mm EFL, 1064 nm
In Stock
 $83
KPC043AR.33
Plano-Concave Lens, N-BK7, 25.4 mm Diameter, -25 mm EFL, 1064 nm
$83
In Stock
 KPC043AR.33 Plano-Concave Lens, N-BK7, 25.4 mm Diameter, -25 mm EFL, 1064 nm
In Stock
 $83
KPC064AR.33
Plano-Concave Lens, N-BK7, 50.8 mm Diameter, -500 mm EFL, 1064 nm
$125
In Stock
 KPC064AR.33 Plano-Concave Lens, N-BK7, 50.8 mm Diameter, -500 mm EFL, 1064 nm
In Stock
 $125
KPC067AR.33
Plano-Concave Lens, N-BK7, 50.8 mm Diameter, -250 mm EFL, 1064 nm
$125
In Stock
 KPC067AR.33 Plano-Concave Lens, N-BK7, 50.8 mm Diameter, -250 mm EFL, 1064 nm
In Stock
 $125
KPC070AR.33
Plano-Concave Lens, N-BK7, 50.8 mm Diameter, -200 mm EFL, 1064 nm
$125
In Stock
 KPC070AR.33 Plano-Concave Lens, N-BK7, 50.8 mm Diameter, -200 mm EFL, 1064 nm
In Stock
 $125
KPC073AR.33
Plano-Concave Lens, N-BK7, 50.8 mm Diameter, -150 mm EFL, 1064 nm
$125
In Stock
 KPC073AR.33 Plano-Concave Lens, N-BK7, 50.8 mm Diameter, -150 mm EFL, 1064 nm
In Stock
 $125
KPC076AR.33
Plano-Concave Lens, N-BK7, 50.8 mm Diameter, -100 mm EFL, 1064 nm
$125
In Stock
 KPC076AR.33 Plano-Concave Lens, N-BK7, 50.8 mm Diameter, -100 mm EFL, 1064 nm
In Stock
 $125
KPC079AR.33
Plano-Concave Lens, N-BK7, 50.8 mm Diameter, -75 mm EFL, 1064 nm
$125
In Stock
 KPC079AR.33 Plano-Concave Lens, N-BK7, 50.8 mm Diameter, -75 mm EFL, 1064 nm
In Stock
 $125

Specifications

  • Lens Shape
    Plano-Concave
  • Lens Material
    N-BK7
  • Antireflection Coating
    1064 nm
  • Coating Type
    Laser Line V-Coat Multilayer
  • Coating Code
    AR.33
  • Damage Threshold
    12 J/cm2, 10 ns pulses, 10 Hz at 1064 nm
  • Surface Quality
    40-20 scratch-dig
  • Surface Accuracy, Irregularity
    λ/4
  • Surface Accuracy, Power
    1.5 λ
  • Chamfers
    0–0.8 mm face width
  • Chamfers Angle/Tolerance
    45° ±15°, typical
  • Focal Length Tolerance
    ±1 %
  • Diameter Tolerance
    +0/-0.1 mm
  • Clear Aperture
    ≥central 90% of diameter
  • Cleaning
    See How to Clean Optics

Features

N-BK7 Substrates for VIS and NIR Applications

N-BK7 is an excellent lens material for most visible and near infrared applications. It is the most common borosilicate crown optical glass, and it provides great performance at a good value. Its high homogeneity, low bubble and inclusion content, and straightforward manufacturability make it a good choice for transmissive optics. N-BK7 is also relatively hard and shows good scratch resistance. The transmission range for BK 7 is 380 to 2100 nm. It is not recommended for temperature sensitive applications, such as precision mirrors. For more information, refer to our optical materials technical note.

High Quality Precision Plano-Concave Lens Surfaces

Our precision plano-concave lenses are polished to tight tolerances minimizing wavefront distortion. Tight surface quality tolerances minimize scatter and unwanted diffraction effects. These lenses have a 40-20 scratch-dig surface quality, and a 1.5 λ surface power accuracy. For more information, refer to the optical surfaces technical note.

1064 nm Laser Line Antireflection V-Coating

Our AR.33 laser line V-coating offers the lowest reflectance at 1064 nm for maximum transmission while maintaining high durability and high damage resistance. Valuable laser energy is efficiently transmitted through the plano-convex lens rather than lost to surface reflection and scattering. The trade off to its superior performance is the minimal laser line wavelength range.

Standardized Plano-Concave Focal Lengths

Standard effective focal lengths on our plano-concave lenses provide a systematic approach allowing for lenses of different sizes and materials to be interchanged without requiring other changes to your optical system.

Mounted Version - with Lens Tubes

The lenses can be mounted in LT series lens tube for constructing a complex optical system or quickly connecting to other threaded lens mounts: A-Line™ series fixed lens mount, or adjustable lens positioner (with thread adapter). Use LT-WR series spanner wrench for easy lens installation.

Expanding a Laser Beam with a Plano-Concave Lens

As an application example, consider a Newport R-31005 HeNe Laser with beam diameter 0.63 mm and a divergence of 1.3 mrad. Note that these are beam diameter and full divergence, so in the notation of our figure, y1 = 0.315 mm and θ1= 0.65 mrad. To expand this beam ten times while reducing the divergence by a factor of ten, we could select a plano-concave lens KPC043 with f1 = -25 mm and a plano-convex lens KPX109 with f2 = 250 mm. Since real lenses differ in some degree from thin lenses, the spacing between the pair of lenses is actually the sum of the back focal lengths BFL1 + BFL2 = -26.64 mm + 247.61 mm = 220.97 mm.

The expanded beam diameter is: 2y3 = 2y1f2/|-f1| = 2(0.315 mm)(250 mm)/|-25 mm|= 6.3 mm.

The divergence angle is: θ3 = θ1|-f1|/f2 = (0.65 mrad)|-25 mm|/250 mm = 0.065 mrad.

For minimal aberrations, it is best to use a plano-concave lens for the negative lens and a plano-convex lens for the positive lens with the plano surfaces facing each other. To further reduce aberrations, only the central portion of the lens should be illuminated, so choosing oversized lenses is often a good idea. This style of beam expander is called Galilean.

Mounting Options

We offer a full range of optical lens mounts to meet various experimental requirements. Below lists the recommended mounts for spherical lenses of standard sizes. Please see our Lens Mount Guide for additional information.

Note: besides the diameter, please check the Edge Thickness (Te) specification of the lens and the lens mount to ensure compatibility before purchasing.

Lens Diameter LH-A-GRP
A-Line™ Lens Mounts		 LT_Series_group_update
LT Series Lens Tubes		 OM-multi_axis_lens_pos-S
LP Series Lens Positioners		 optics-cage-plus-S
Optics Cage Plus Series
76.2 mm (M-) LH-3A N/A N/A N/A
50.8 mm (M-) LH-2A
LH-2N		 LT20-05
LT20-10
LT20-20
LT20-30		 LP-2A
LP-2A-XY
LP-2A-XYZ		 N/A
38.1 mm (M-) LH-1.5A LT20 lens tube with
LH-2R1.5 adapter		 LP-2 lens positioner with
LPLH-1.5T adapter		 N/A
25.4 mm (M-) LH-1A
LH-1N
LH-1XY
LH-1TZ-A
LH-1TZ		 LT10-05
LT10-10
LT10-20
LT10-30		 LP-1A
LP-1A-XY
LP-1A-XYZ		 OC1-LH1-S
OC1-LH1
OC1-LH1-TZ
OC1-LH1-XY
OC1-LH1-XYA
OC1-LH1-XYC
OC1-LH1-XYZ
12.7 mm (M-) LH-0.5A
LH-05N		 LT05-05
LT05-10		 LP-05A
LP-05A-XY
LP-05A-XYZ		 N/A
6.35 mm LH-05DB with
LH-50R25 adapter		 LT05 lens tube with
LH-50R25 adapter		 LP-05 lens positioner with
LPLH-25T adapter		 N/A

For non-standard sizes not listed above, check out our variable size lens mounts.
