Compare Model Drawings, CAD & Specs Type Length Height Thread Type Availability Price
9032
$38
In Stock

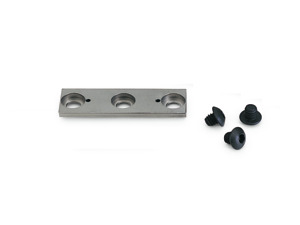

 9032 Optical Rail 39.4 mm 4.6 mm 1-4-20 (M6) C-Bore
In Stock
 $38
9022NF
$40
In Stock
 9022NF Optical Rail 63.5 mm 4.6 mm 1-4-20 (M6) C-Bore
In Stock
 $40
9023NF
$72
In Stock

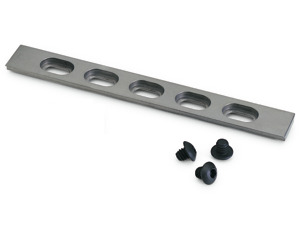

 9023NF Optical Rail 152.4 mm 4.6 mm 1-4-20 (M6) C-Bore
In Stock
 $72
9020NF
$114
In Stock

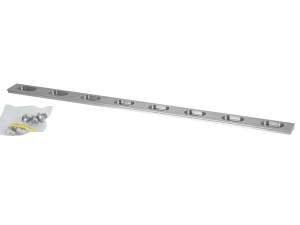

 9020NF Optical Rail 304.8 mm 4.6 mm 1-4-20 (M6) C-Bore
In Stock
 $114
9025NF
$35
In Stock

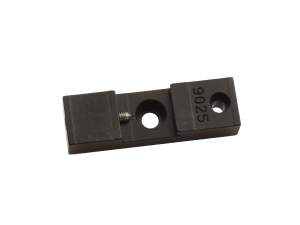

 9025NF Post Carrier 19.05 mm 12.7 mm 8-32 and 1/4-20 Thru
In Stock
 $35
9035
$40
In Stock
 9035 Post Carrier 19.05 mm 12.7 mm 1/4-20 (M6) CLR
In Stock
 $40
9036
$81
In Stock
 9036 Riser Carrier, Pint-Sized 39.4 mm 12.7 mm 8-32 and 1/4-20
In Stock
 $81
9036-M
$81
In Stock
 9036-M Riser Carrier, Pint-Sized 39.4 mm 12.7 mm M4 and M6
In Stock
 $81
9026
$87
In Stock
 9026 Riser Carrier 63.5 mm 12.7 mm 8-32 and 1/4-20
In Stock
 $87
9026-M
$87
In Stock
 9026-M Riser Carrier 63.5 mm 12.7 mm M4 and M6
In Stock
 $87
9027
$100
In Stock
 9027 Riser Carrier 63.5 mm 25.4 mm 8-32 and 1/4-20
In Stock
 $100
9027-M
$100
In Stock
 9027-M Riser Carrier 63.5 mm 25.4 mm M4 and M6
In Stock
 $100
9039
$129
In Stock
 9039 90° Carrier, Pint-Sized 39.4 mm 45.7 mm 8-32 and 1/4-20
In Stock
 $129
9039-M
$129
In Stock
 9039-M 90° Carrier, Pint-Sized 39.4 mm 45.7 mm M4 and M6
In Stock
 $129
9029
$129
In Stock
 9029 90° Carrier 63.5 mm 69.9 mm 8-32 and 1/4-20
In Stock
 $129
9029-M
$129
In Stock
 9029-M 90° Carrier 63.5 mm 69.9 mm M4 and M6
In Stock
 $129

Features

Low Profile Rail System Mounting

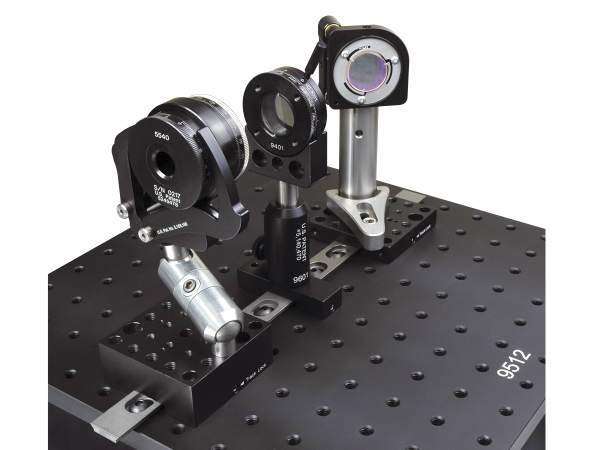

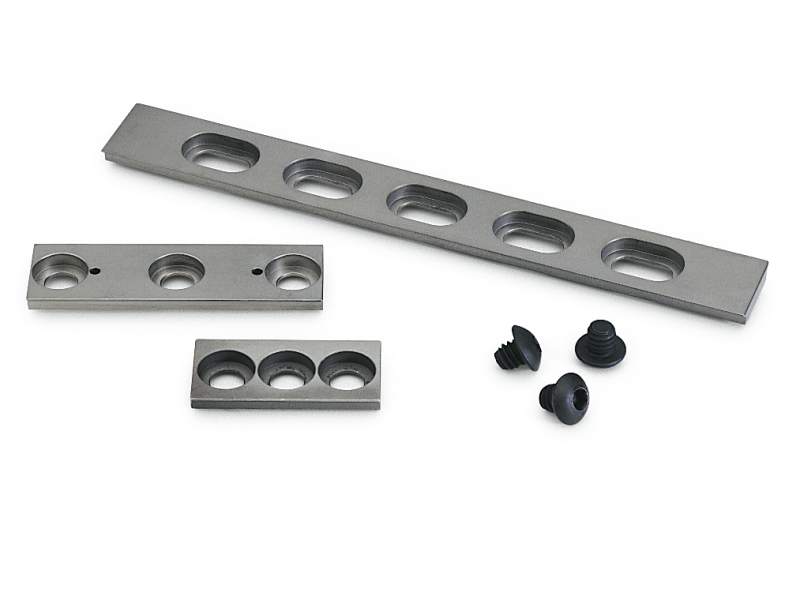

The e•z•Trac™ Optical Rail System is the lowest profile optical rail system. The rails themselves sit just 0.18 in. (4.6 mm) high and mount to optical tables or breadboards by a surface-mount design. Carriers sit flush with the same surface where the rail is attached letting the mounting surface profile sit at only 0.5 in. (12.7 mm) high. The dovetail design ensures carriers clamp down with exceptional stability Each e•z•Trac rail ships with both 1/4-20 and M6 button-head screws.

Compatible with Triple Divide Translation Stages

The e•z•Trac™ rails provide the linear translation to our standard and pint-sized Triple-Divide translation stages, making them fully compatible with both. Precision alignment holes guarantee orthogonality when used with the translation stages.
