10 MHz Adjustable Optical Receivers

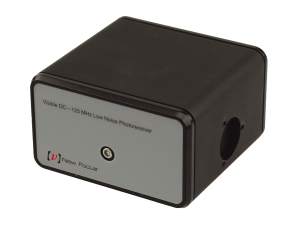

Just like their lower-frequency counterparts, these 10 MHz optical receivers are the ideal free space optical front ends for systems requiring low-noise input. They have been engineered to eliminate most common sources of noise and drift, and have enough gain to pick up even very weak signals.

10 MHz versions of our popular 20x1 optical receivers
Adjustable high-pass and low-pass ﬁlters
3 dB bandwidths of 10 MHz, 5 MHz and 150 kHz
Variable-gain transimpedance ampliﬁer
Silicon or InGaAs versions

See All Features

Description	Compatibility	Wavelength Range	Maximum Conversion Gain	Peak Responsivity	NEP	Thread Type	Avail.	Price
2051-FSAdjustable Optical Receiver, 300-1050 nm Silicon Detector, 10 MHz, 8-32.	IMPERIAL	300-1050 nm	9.2x10⁶ V/W	0.5 A/W	0.68 pW/√Hz	8-32	In Stock	$1,510
2051-FS-MAdjustable Optical Receiver, 300-1050 nm Silicon Detector, 10 MHz, M4	METRIC	300-1050 nm	9.2x10⁶ V/W	0.5 A/W	0.68 pW/√Hz	M4	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,460
2053-FSAdjustable Optical Receiver, 900-1700 nm InGaAs Detector, 10 MHz, 8-32.	IMPERIAL	900-1700 nm	18.4 x 10⁶ V/W	1.0 A/W	0.34 pW/√Hz	8-32	In Stock	$1,510
2053-FS-MAdjustable Optical Receiver, 900-1700 nm InGaAs Detector, 10 MHz, M4	METRIC	900-1700 nm	18.4 x 10⁶ V/W	1.0 A/W	0.34 pW/√Hz	M4	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,450

Specifications

Detector Diameter
2051: 0.9 mm
2053: 0.3 mm
3 dB Bandwidth
10 MHz, 5 MHz, 150 kHz
(measured at low-, medium-, and high-gain settings)
Detector Material
2051: Silicon
2053: InGaAs
Detector Type
PIN
Maximum Transimpedance Gain
18.4x10⁶ V/A
Rise Time
80 ns

Saturation Power
2051: 10 mW @ 850 nm
2053: 10 mW @ 1600 nm
Damage Threshold
10 mW
Output Connector
SMA
Output Impedance
16 Ω
Power Requirements
±15 VDC or 9-V Battery

Features

Silicon or InGaAs Versions

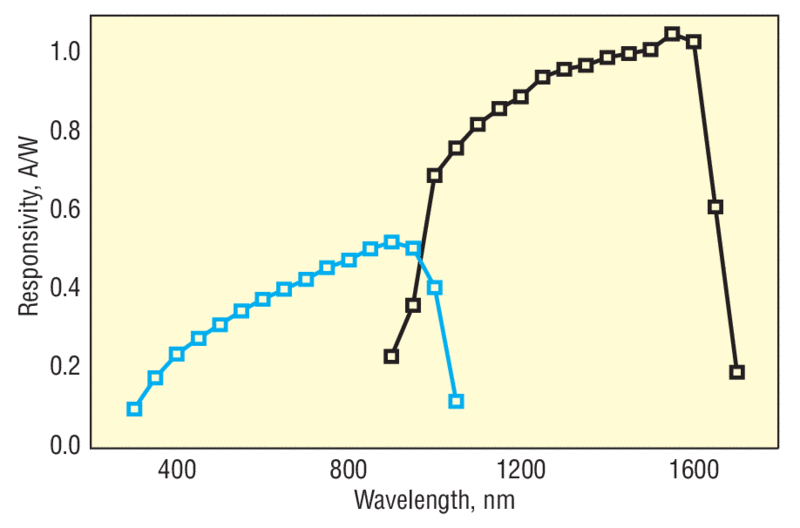

Typical responsivity of the photodetector in Models 2051 (blue) and 2053 (black)

The silicon models (2051) provide wavelength coverage from 300-1050 nm, and InGaAs models (2053) provide coverage from 900-1700 nm. These detectors are available in the free space design as well as the fiber receptable design.

10 MHz Versions of our Popular 200 kHz Photoreceivers

In response to customer requests, we’ve extended the bandwidth of our popular 200 kHz photoreceivers to 10 MHz to provide faster photodetection for our customers.

Variable-gain Transimpedance Ampliﬁer

Variable gain of up to 90 dB in 10-dB steps gives you a useful input range from 1 pW to 10 mW. For small signals requiring 80-dB or greater gain, the maximum bandwidth is reduced from 10 MHz to 1 MHz.

Adjustable High and Low Pass Filters

The DC÷30 setting prevents your signal from going off-scale due to DC amplitude ﬂuctuations, without attenuating fast signals. The high-pass filter can be adjusted to eliminate residual 60-Hz noise, and the independent low-pass filter can be set to dampen noisy signals.

Flexibility for a Wide Range of Applications

The ﬂexibility and high performance of these photoreceivers means that they can be used in a wide range of applications. Use them as low-noise DC-coupled photoreceivers/preamplifiers in servo-control systems requiring near-zero phase shifts. Or use them in lock-in amplifier systems to take advantage of their shot-noise-limited performance and 90-dB maximum gain.

Accessories

Optional Accessories

Description	Compatibility	Avail.	Price

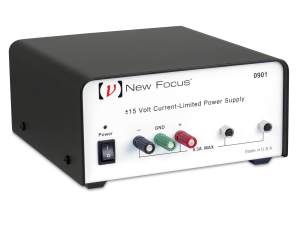

0901Lab Power Supply, ±15 VDC	UNIVERSAL	In Stock	$570
