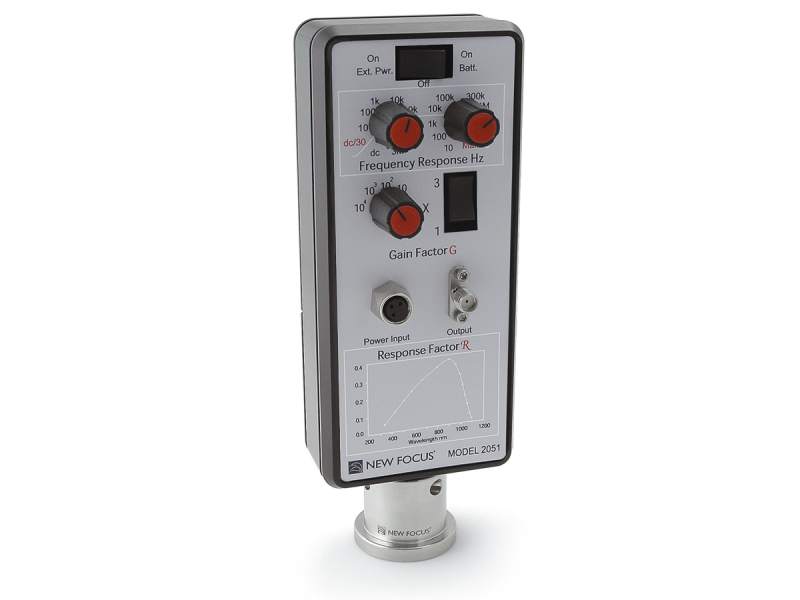

Adjustable Optical Receiver, 300-1050 nm Silicon Detector, 10 MHz, M4

Technical Specs

  • Detector Diameter
    0.9 mm
  • 3 dB Bandwidth
    10 MHz, 5 MHz, 150 kHz
  • Wavelength Range
    300-1050 nm
  • Optical Input
    Free Space
  • Detector Material
    Silicon
  • Detector Type
    PIN
  • Maximum Conversion Gain
    9.2x106 V/W
  • Maximum Transimpedance Gain
    18.4x106 V/A
  • NEP
    0.68 pW/√Hz
  • Rise Time
    80 ns
  • Saturation Power
    10 mW @ 850 nm

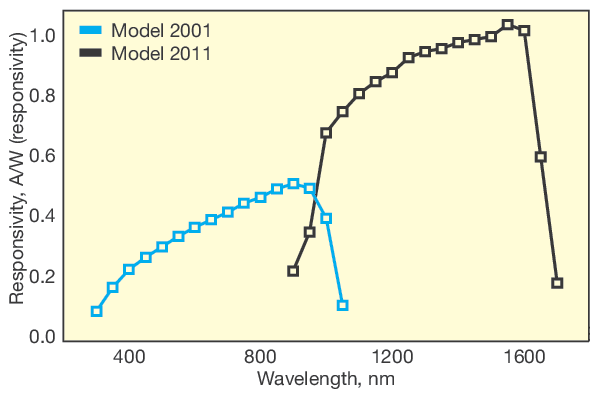

  • Peak Responsivity
    0.5 A/W
  • Damage Threshold
    10 mW
  • Output Connector
    SMA
  • Output Impedance
    16 Ω
  • Power Requirements
    ±15 VDC or 9-V Battery
  • Thread Type
    M4
