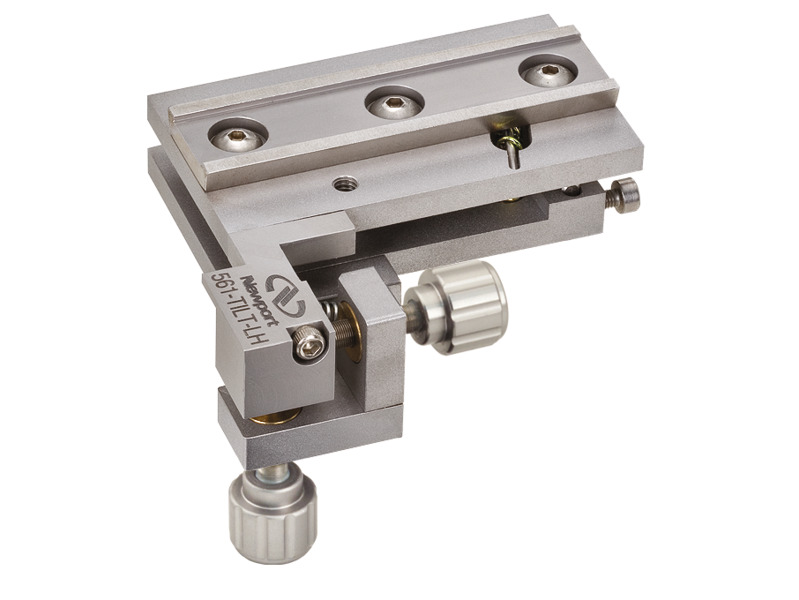

Tilt Platform, Two Axis, Left-Handed, M-561 Series

Model: M-561-TILT-LH

$705

In Stock

Compare

Add to List

Product Series Overview

ULTRAlign Precision Fiber Tilt and Rotation Positioners

The M-561-TILT-LH metric Tilt Platform provides two-axis (θ_Yθ_Z) angular alignment of the fiber with minimal translation. The tilt platform mounts on top of an XYZ stage for five degrees of freedom. Fiber and device holders mount to a rail on top of the tip/tilt platform. The M-561-TILT-LH stage utilizes precision 100 TPI adjustment screws and is a left-hand configuration.

Specifications

Technical Specs

Stage Type

Left-Handed
Axes of Travel

θ_Yθ_Z
Angular Range

±5°
Sensitivity

5 arc sec
Thread Type

Metric

Load Capacity

22 N
Material

Stainless Steel
Optical Axis Height

79.4 mm

Stage Type

Left-Handed
Axes of Travel

θ_Yθ_Z
Angular Range

±5°
Sensitivity

5 arc sec
Thread Type

Metric

Load Capacity

22 N
Material

Stainless Steel
Optical Axis Height

79.4 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

561-TILT-S (146 kB, PDF)

Other

M-561-TILT-LH RoHS Certificate (282.4 kB, PDF)
