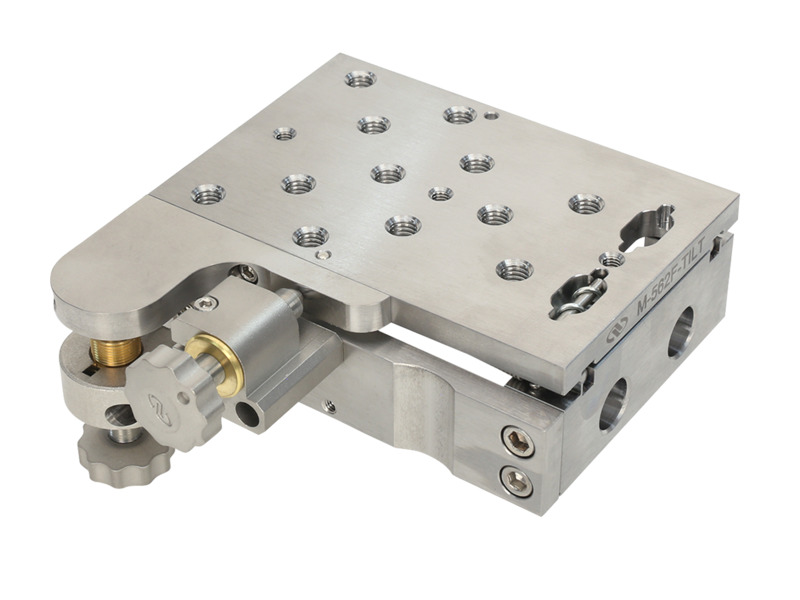

Tilt Platform, Two Axis, Left-Handed, M-562 Series

Model: M-562F-TILT-LH

$711

In Stock

Compare

Add to List

Product Series Overview

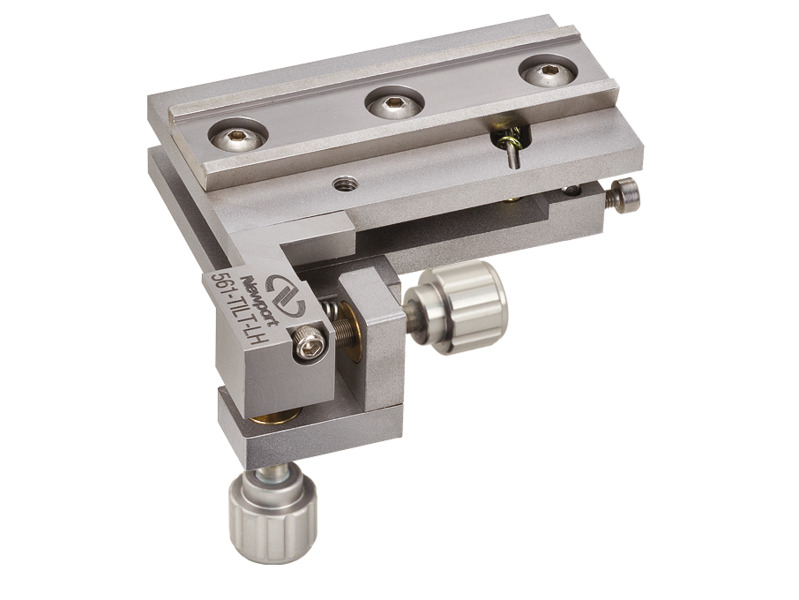

ULTRAlign Precision Fiber Tilt and Rotation Positioners

The M-562F-TILT-LH Metric Tilt Platform provides two-axis (θ_Yθ_Z) angular alignment of the fiber with minimal translation. The tilt platform mounts on top of an XYZ stage for five degrees of freedom. It offers +2/-1.5° θ_Y, +10/-7° θ_Z angular range. Fiber and device holders mount to a rail on top of the tip/tilt platform. The M-562F-TILT-LH stage utilizes precision 100 TPI adjustment screws and is a left-hand configuration.

Specifications

Technical Specs

Stage Type

Left-Handed
Axes of Travel

θ_Yθ_Z
Angular Range

+2/-1.5° θ_Y, +10/-7° θ_Z
Sensitivity

2 arc sec θ_Y, 5 arc sec θ_Z
Thread Type

Metric

Load Capacity

4.4 N
Material

Stainless Steel
Optical Axis Height

108 mm

Stage Type

Left-Handed
Axes of Travel

θ_Yθ_Z
Angular Range

+2/-1.5° θ_Y, +10/-7° θ_Z
Sensitivity

2 arc sec θ_Y, 5 arc sec θ_Z
Thread Type

Metric

Load Capacity

4.4 N
Material

Stainless Steel
Optical Axis Height

108 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

562F-TILT-S (130.9 kB, PDF)

Other

M-562F-TILT-LH_RoHS2021.pdf (687.3 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
M-SK-A Socket Head Cap Screw Kit, Stainless Steel, M4 & M6, Qty 805	UNIVERSAL	In Stock	$128
AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	In Stock	$19.40
TA-M6Q20-10 Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10	UNIVERSAL	In Stock	$41
BB-L Optical Beam Block, Tool Holder, Magnetic-Base, Large	UNIVERSAL	In Stock	$42
M-BDK-1 Ball Driver Tool Set, Includes: 1.5, 2, 2.5, 3, 4 & 5 mm Wrenches	METRIC	In Stock	$38

Similar

Description	Compatibility	Avail.	Price
561-GM Gimbal Fiber Chuck Positioner, 561 Series, 3 Rotation Axis	UNIVERSAL	In Stock	$705
M-561-TILT-LH Tilt Platform, Two Axis, Left-Handed, M-561 Series	METRIC	In Stock	$705
561-GON Goniometer, 561 Series	UNIVERSAL	In Stock	$1,036
M-562F-TILT Tilt Platform, Two Axis, Right-Handed, M-562 Series	METRIC	In Stock	$711
M-561-GB Mounting Bracket, Goniometer, Metric	METRIC	In Stock	$222

Compatible

Description	Compatibility	Avail.	Price
AJS100-0.5K Adjustment Screw, 100 TPI, 12.7 mm Travel, Large Knob, Side Lock	UNIVERSAL	3 Weeks	$38
SM-13 Vernier Micrometer, 13 mm Travel, 9 lb. Load Capacity, 50.8 TPI	UNIVERSAL	In Stock	$100
DM-13 Differential Micrometer Head, 13.0 mm Coarse, 0.2 mm Fine, 5 lb. Load	UNIVERSAL	In Stock	$660
HR-13 Micrometer Head, High Resolution, 0.5 µm Sensitivity, 13 mm Travel	UNIVERSAL	4 Weeks	$222
M-562F-XYZ-LH Fiber Alignment Stage, ULTRAlign, Left-Handed, 13 mm XYZ, M4 and M6	METRIC	In Stock	$2,890
