561-PCH Mounting Kit

Mounting Kit, Photonic Crystal Fiber, 561 Series

Model: 561-PCH

$333

In Stock

Compare

Add to List

Product Series Overview

ULTRAlign Fiber Alignment Accessories

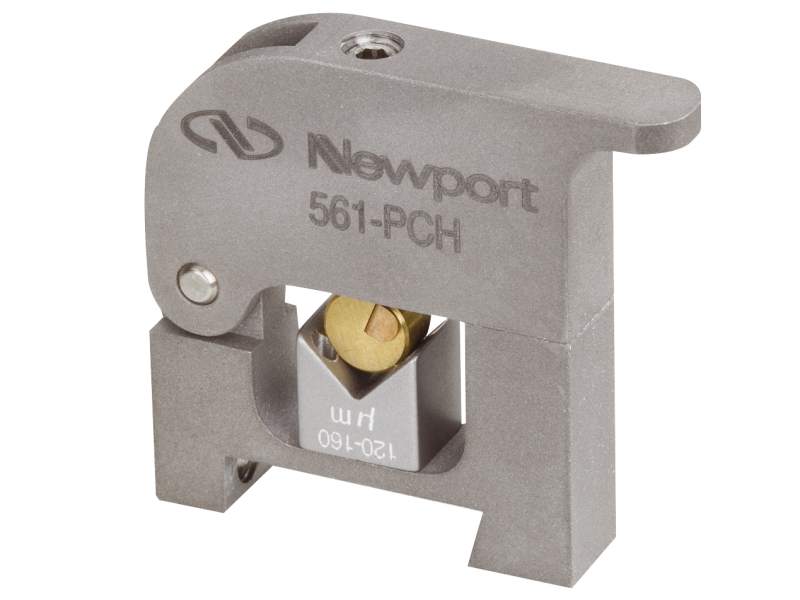

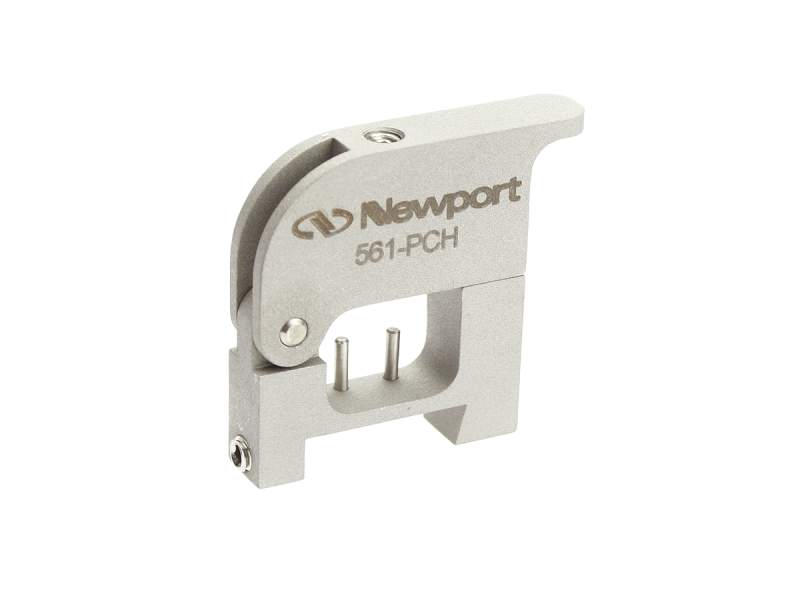

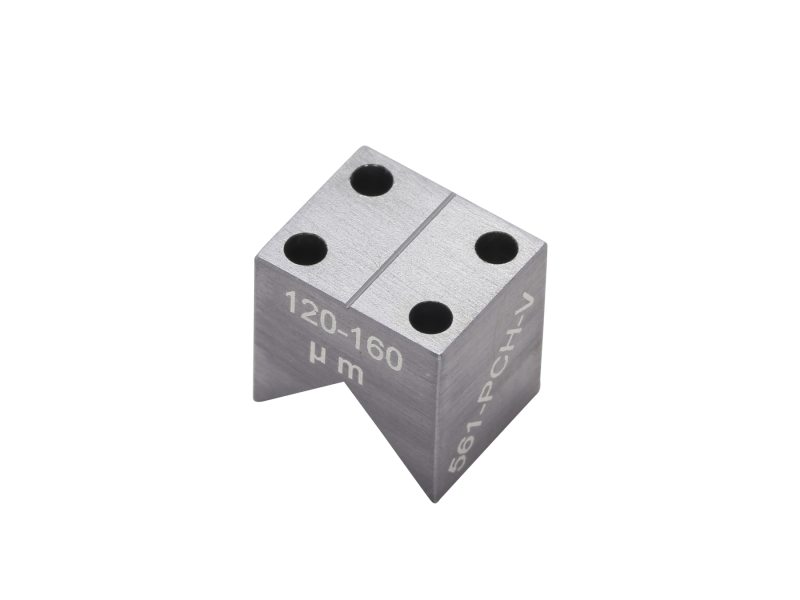

The 561-PCH Photonic Crystal Fiber Mount Kit is designed to attach short lengths of Photonic Crystal Fiber to a 561 Series stage. It includes 561-PCH-M Photonic Crystal Fiber Mount, 561-PCH-V V-groove Block and FPH-S-.175 Fiber Chuck.

Specifications

Technical Specs

Material

Steel

Material

Steel

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

561-PCH (184.4 kB, PDF)

Other

561-PCH RoHS Certificate (282.4 kB, PDF)
