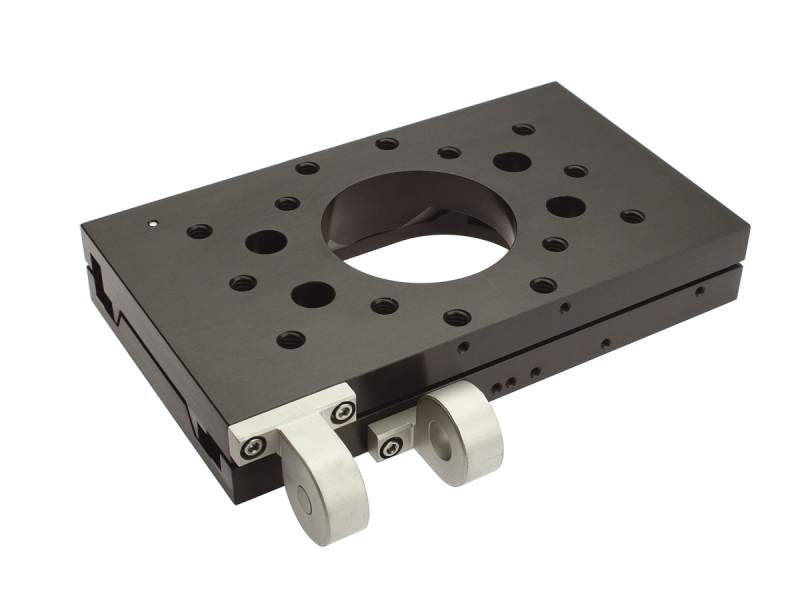

Manual Linear Stage, Crossed-Roller Bearings, Aperture, 50.8 mm, M6

  • Axes of Travel
    X
  • Maximum Stage Travel
    50 mm
  • Centered Normal Load Capacity
    556 N
  • Vertical Axial Load Capacity
    67 N
  • Angular Deviation
    <150 µrad
  • Material
    Aluminum
  • Bearings
    Crossed-Roller Bearings
  • Drive Location
    Side drive
  • Platform Size
    88.9 x 152.4 mm
  • Aperture Diameter
    50.8 mm
  • Height
    25.4 mm
  • Weight
    2.200 lbs
  • Thread Type
    M6
  • Recommended Adjustment Screw
  • Recommended Vernier Micrometer
  • Recommended LTA Motorized Actuator1
Notes:

  1. A 1.6 mm thick washer is required to center the travel range when used with a 436 stage.
