Motorized Half Gimbal System, URS Series Rotation Stage

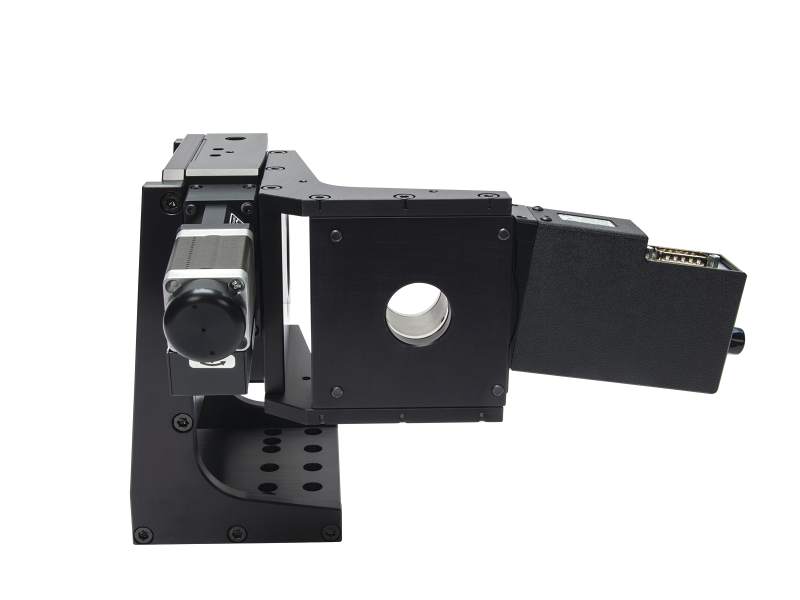

URS Stage Based Half Gimbal Systems

The HG-URS is a quite flexible gimbal that can use two of the four URS standard product sizes (50, 75, 100 and 150) as the loading condition and application requires. Available in stepper and DC motor versions. This general purpose and economical gimbal solution is compatible with SMC100, ESP301 and XPS series controllers.

Contact Inside Sales Support team to discuss application requirements and get a quote.

Specifications

Technical Specs

Travel Range
±180° (system)
Accuracy, Typical
±6.0 mdeg
Accuracy, Guaranteed
±11.5 mdeg
Bi-directional Repeatability, Typical
±1.4 mdeg
Bi-directional Repeatability, Guaranteed
±3.0 mdeg
Resolution
0.0005° (Az)
0.00016°(El)

Minimum Incremental Motion
2.0 mdeg
Maximum Speed
80°/sec (Az)
20°/sec (El)
Load Capacity
20 N (system)

Travel Range
±180° (system)
Accuracy, Typical
±6.0 mdeg
Accuracy, Guaranteed
±11.5 mdeg
Bi-directional Repeatability, Typical
±1.4 mdeg
Bi-directional Repeatability, Guaranteed
±3.0 mdeg
Resolution
0.0005° (Az)
0.00016°(El)

Minimum Incremental Motion
2.0 mdeg
Maximum Speed
80°/sec (Az)
20°/sec (El)
Load Capacity
20 N (system)

Resources & Downloads

Manuals

URS Rotation Stages User's Manual(2.6 MB, PDF)

Literature

Gimbal Brochure(3.2 MB, PDF)

2D Product Drawings

HG-URS(98.4 kB, PDF)

Need help?

Contact an Applications Specialist by sending us an email
