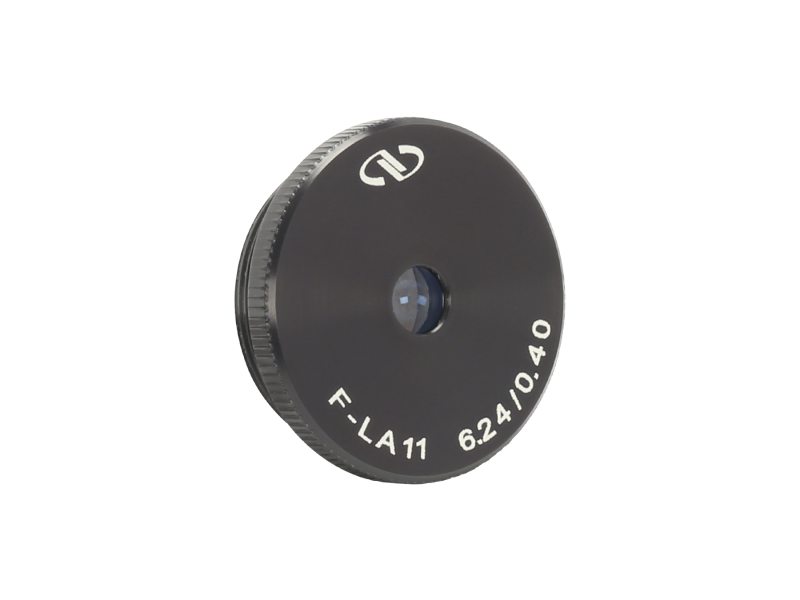

The F-LA11 Laser Diode Aspheric Objective Lens has been specially designed for collimating and focusing laser diodes as well as fiber coupling. This version has a 0.40 Numerical Aperture (NA) and a 6.24 mm focal length with 5 mm clear aperture lenses. These lenses have all been corrected for the standard laser diode cover glass. Our aspheric lenses are diffraction-limited molded glass lenses with typical wavefront quality better than λ/20 rms. Each is antireflection coated with MgF2 centered at 780 nm for maximum transmission. These lenses offer an economical solution without sacrificing performance. These objectives are packaged in a microscope objective housing with standard RMS thread. They are compatible with our F-Series fiber coupling devices and ULTRAlign™ fiber positioners
VB-0.5Cylindrical Device Mount, V-Block, 0.5 in. Length
UNIVERSAL
In Stock
$68.00
LCM-1Lens Mount, Self-Centering, 0.125-1.063 in. Diameter Lenses
IMPERIAL
1 Week
$282.00
VLH-1AV-Groove Lens Holder, 0.25 to 1.25 in. Diameter Lenses
UNIVERSAL
In Stock
$161.00
AC-1AVariable Size Lens Mount, 5.0-46.2 mm, Thumbscrew Support Arms
UNIVERSAL
In Stock
$58.00
F-LA11 - Drawings & CAD
Additional CAD file downloads are not available for this product.
F-LA11 - Drawings
Additional drawings are not available for this product.
