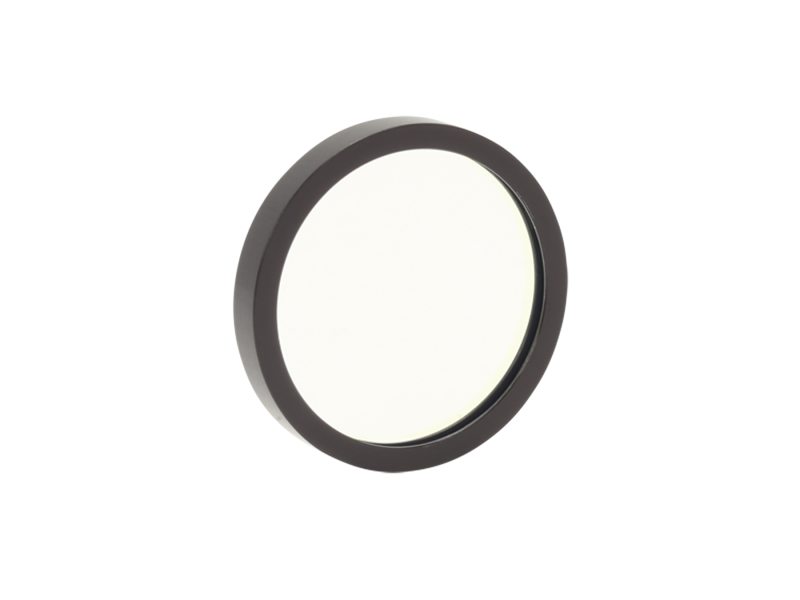

Laser Beam Combiner, Dichroic, 25mm, 372-415 nm Refl, 439-647 nm Trans

Technical Specs

  • Type
    Dichroic Laser Beam Combiner
  • Optic Size
    Ø25.0 mm
  • Cut-on Wavelength
    427 nm

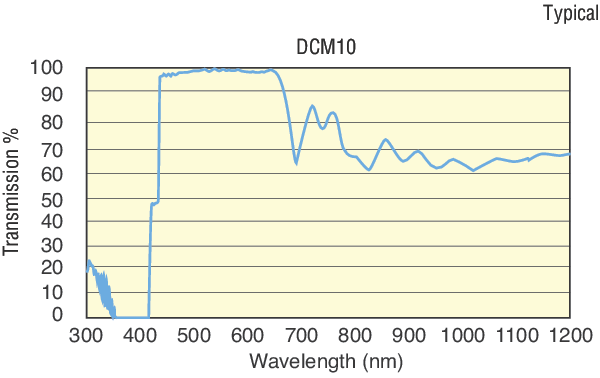

  • Transmittance Range
    439.0-647.1 nm
  • Reflectance Band
    372 - 415 nm
  • Reflectance p Polarized Beam
    > 99%
  • Reflectance s Polarized Beam
    > 96%
  • Angle of Incidence
    45°
  • Coating Type
    Hard Ion Beam Sputtered
  • Thickness
    3.5 mm
  • Thickness Tolerance
    +0.0/-0.1 mm
  • Size Tolerance
    +0.0/-0.1 mm
  • Clear Aperture
    22.0 mm
  • Transmitted Beam Deviation
    < 30 arc sec
