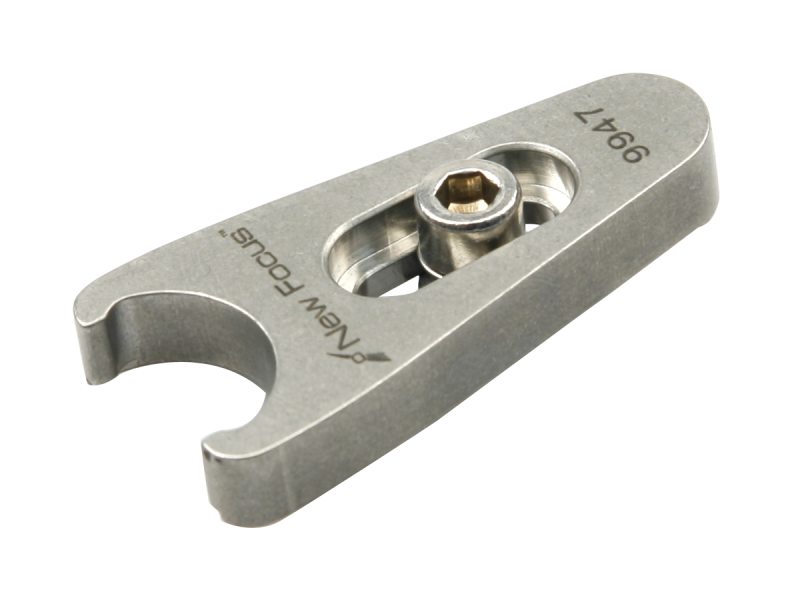

Clamping Fork, Small Pedestal, Captive M6 Screw

Model: 9947-M

$31

In Stock

Compare

Add to List

Product Series Overview

0.7 in. Pedestal Base Clamping Forks

The 9947-M Small Pedestal Base Clamping Fork allows you to mount Small Optical Pedestals anywhere on an optical table. The M6 socket head screw is held captive to the fork which means you will never lose it. The thick stainless steel construction gives a stiff connection to the optical table, providing a stable yet compact support.

Specifications

Technical Specs

Type

Pedestal Clamping Fork w/ screw
Thread Type

M6
Material

Stainless Steel

Inside Diameter

18.0 mm

Type

Pedestal Clamping Fork w/ screw
Thread Type

M6
Material

Stainless Steel

Inside Diameter

18.0 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9947RC (212.1 kB, PDF)
