Optical Pedestal, 50.8 mm Height, 0.7 in. Diameter, M4 Thread
Optical Pedestal, 50.8 mm Height, 0.7 in. Diameter, M4 Thread
Model: 9946-M
In Stock
Product Series Overview

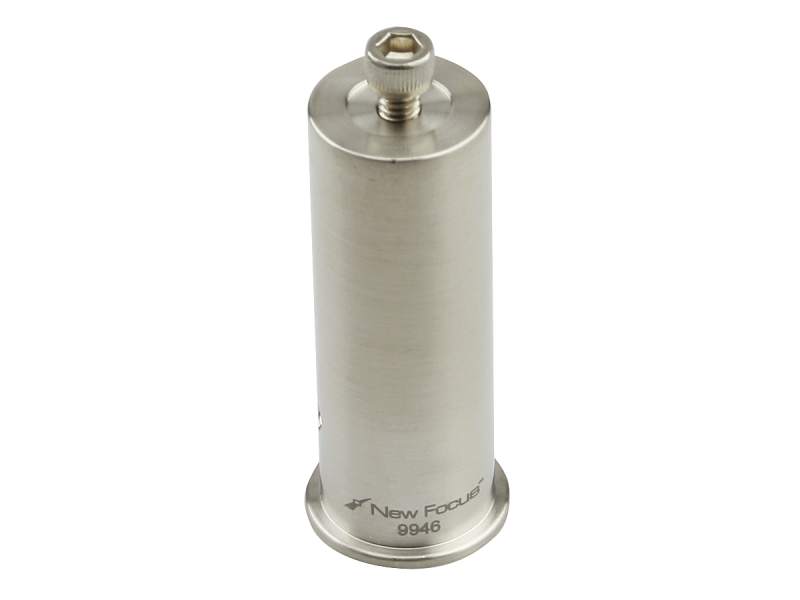

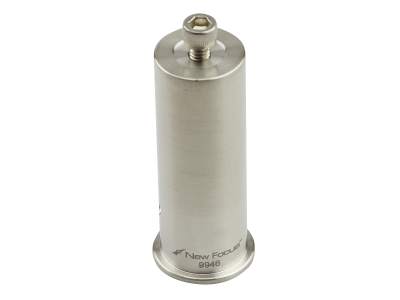

0.7 in. Optical PedestalsThe 9946-M Small Optical Pedestal allows you to mount our tiny mirror mounts to a full sized optical table. The thick stainless steel construction gives a stiff connection to the optical table, providing a stable yet compact support. The 9946 is 50.8 mm tall and is used to bring a tiny mount to a standard 12.7 mm increment beam height. Every pedestal has an M4 threaded hole on each end.
Resources & Downloads
2D Product Drawings
9944-45-46-RC(215.2 kB, PDF)
