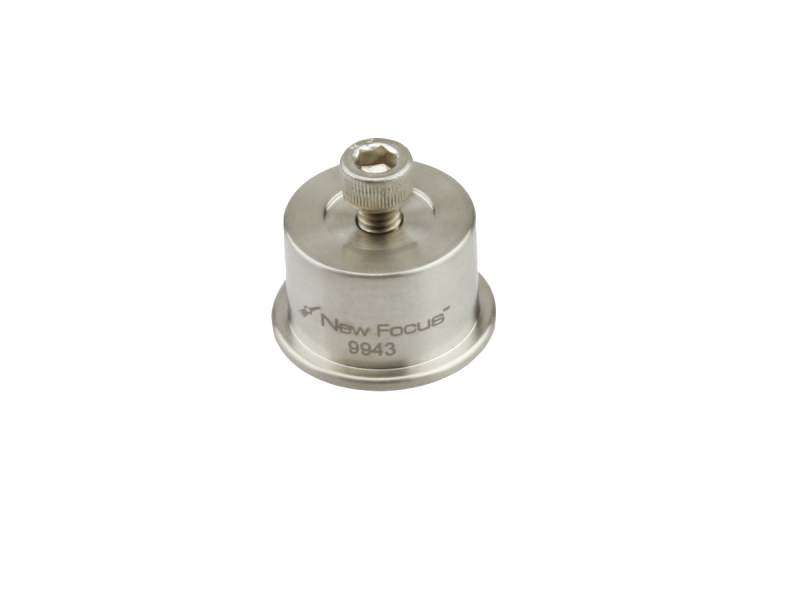

Optical Pedestal, 12.7 mm Height, 0.7 in. Diameter, M4 Thread

Model: 9943-M

$35

In Stock

Compare

Add to List

Product Series Overview

0.7 in. Optical Pedestals

The 9943-M Small Optical Pedestal allows you to mount our tiny mirror mounts to a full sized optical table. The thick stainless steel construction gives a stiff connection to the optical table, providing a stable yet compact support. The 9943 is 12.7 mm tall and is used to bring a tiny mount to a standard 12.7 mm increment beam height. Every pedestal has an M4 threaded hole on each end.

Specifications

Technical Specs

Type

Optical Pedestal
Height

12.7 mm
Thread Type

M4

Material

Stainless Steel
Diameter

17.8 mm

Type

Optical Pedestal
Height

12.7 mm
Thread Type

M4

Material

Stainless Steel
Diameter

17.8 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9944-45-46-RC (215.2 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
M-BR42 Mounting Bridle,M-UTR80S to M-MVN80, M-TGN80 or M-UMR8, 5.6 mm Height, Qty 4	METRIC	In Stock	$56
SK-A Socket Head Cap Screw Kit, Stainless Steel, 8-32 & 1/4-20, Qty 805	UNIVERSAL	3 Weeks	$128
9947 Clamping Fork, Small Pedestal, Captive 1/4-20 Screw	IMPERIAL	In Stock	$30
BB-L Optical Beam Block, Tool Holder, Magnetic-Base, Large	UNIVERSAL	In Stock	$42
BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	In Stock	$38

Similar

Description	Compatibility	Avail.	Price
9944 Optical Pedestal, 1.0 in. Height, 0.7 in. Diameter, 8-32 Thread	IMPERIAL	In Stock	$35
9946 Optical Pedestal, 2.0 in. Height, 0.7 in. Diameter, 8-32 Thread	IMPERIAL	In Stock	$39
9945 Optical Pedestal, 1.5 in. Height, 0.7 in. Diameter, 8-32 Thread	IMPERIAL	In Stock	$39
9942 Optical Pedestal, 3/8 in. Height, 0.7 in. Diameter, 2-56 Thread	IMPERIAL	In Stock	$35

Compatible

Description	Compatibility	Avail.	Price
VPH-2 Optical Post Holder, No Slip, 2.0 in. Height, 0.5 in. Posts, 1/4-20	IMPERIAL	In Stock	$17
PS-2 Optical Pedestal, 2.0 in. Height, 1.0 in. Diameter, 8-32 Thread	IMPERIAL	In Stock	$30
SP-6 Optical Post, 6 in. Height, 0.5 in. Diameter, 8-32 and 1/4-20 Thread	IMPERIAL	In Stock	$8
PS-1T Table Mount Adaptor, 1.0 in. Diameter Pedestals, 8-32 to 1/4-20	IMPERIAL	In Stock	$22
SP-2 Optical Post, 2.0 in. Height, 0.5 in. Diameter, 8-32 and 1/4-20 Thread	IMPERIAL	In Stock	$6
