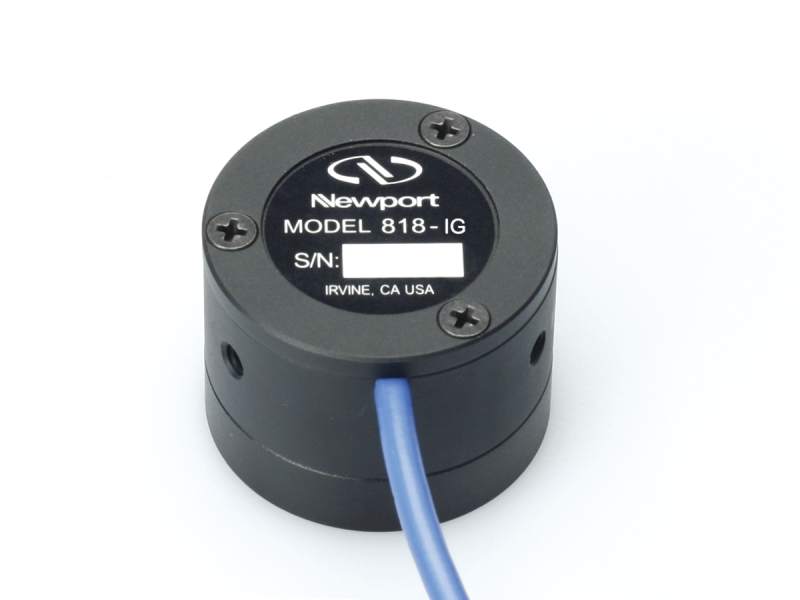

  7. 818-IG-L-FC/DB

Fiber Optic Detector, InGaAs, 800-1650 nm, 10 mW, DB15

low cost photodiode-based fiber optic detector model 818-SL-L-FC-DB
  • Detector Type
    Post Mounted
  • Detector Input
    Fiber-Optic
  • Fiber-Optic Connector
    FC/PC, interchangeable
  • Detector Material
    Indium Gallium Arsenide
  • Spectral Range
    800 - 1650 nm
  • Sensor Size
    Ø3 mm
  • Attenuator
    None
  • Minimum Measurable Power
    20 pW
  • Maximum Measurable Power Benchtop Meter
    10 mW
  • Maximum Measurable Power Handheld Meter
    1.3 mW
  • Maximum Power Density
    3 W/cm2
  • Maximum Pulse Energy
    5 nJ
  • Power Range
    -75 to 10 dBm
  • Calibration Module
    Removable DB15 Connector
  • Calibration Uncertainty
    2.4% (800-1430 nm)
    2.6% (1430-1600 nm)
  • Linearity
    ±0.5 %
  • Uniformity
    ±2 %
  • Rise Time
    ≤2 µs
  • Connector Type
    DB15
  • Cable Length
    1.5 m
