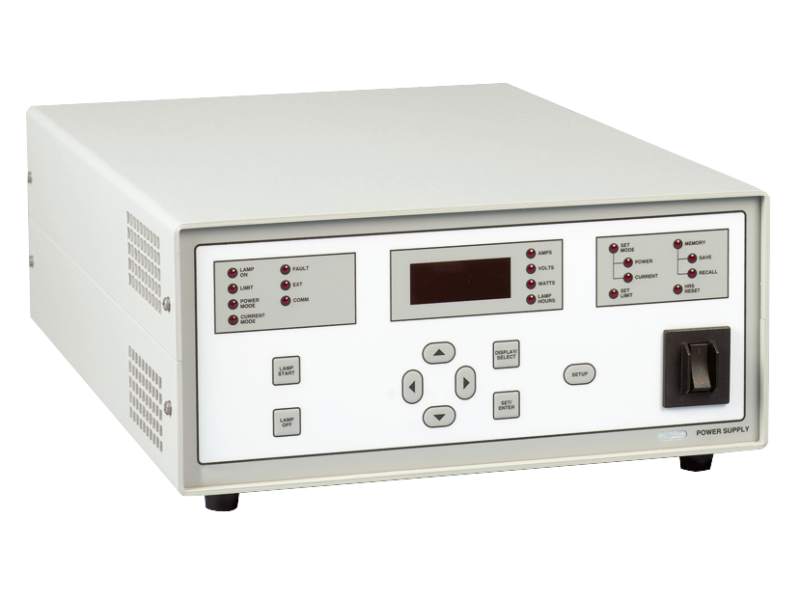

New Arc Lamp Power Supply, Mercury Lamps, 500 Watt

Technical Specs

  • Lamp Wattage
    160 - 600 W
  • Lamp Type
    Mercury Arc Lamp only
  • Operating Mode
    Constant Power or Constant Current
  • Light Ripple
    < 1%
  • Digital Meter Resolution, Current
    0.1 A
  • Digital Meter Resolution, Power
    1 W
  • Digital Meter Resolution, Voltage
    0.1 VDC
  • Accuracy
    < 0.1% (% full scale)
  • Line Regulation
    0.01%
  • Power Requirements
    95 - 264 VAC, 47 - 63 Hz
  • Operating Temperature
    10 - 40°C
  • Safety Interlock Voltage
    12 VDC/GND
  • Input Circuit Breaker
    8A, 2 Pole
  • Dimensions
    16.0 x 12.0 x 5.18 inch [406 x 305 x 131.6 mm] (L x W x H)
  • Weight
    20 lbs. [9 kg]
