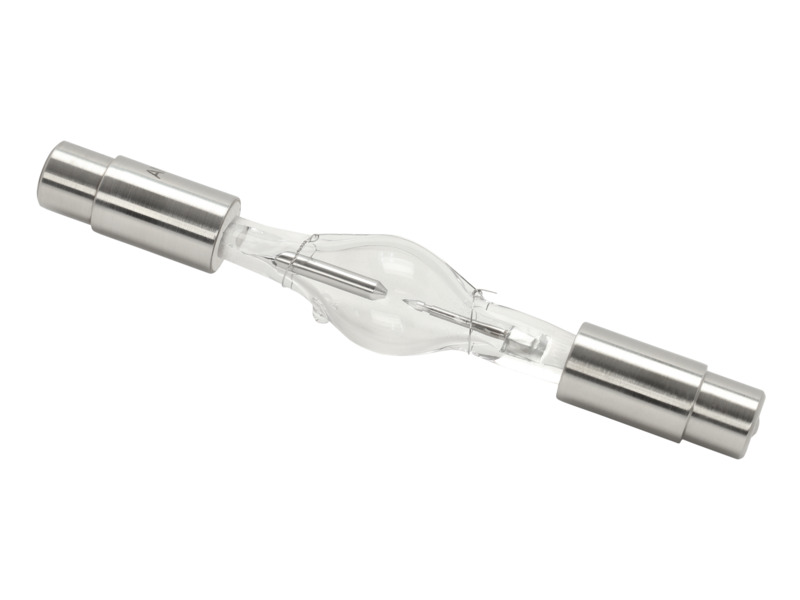

Mercury-Xenon Arc Lamp, 200 W, Ozone Free

The 6290 Ozone Free Hg(Xe) Arc Lamp is 200 Watt and has a 0.5 x 1.5 mm effective arc size. Strong mercury lines through the visible and ultraviolet dominate the output spectrum of these lamps. A continuum in the infrared persists to 2.5 μm and beyond.

Due to its intense UV spectral output profile below 400 nm, Oriel recommends wearing the necessary safety equipment such as UV protective eyewear. Safety goggles or spectacles are offered separately.

This lamp is compatible with the 66169 Socket Adapter (not included).

Specifications

Technical Specs

Type
Mercury-Xenon Lamp
Lamp Type
Hg(Xe), Ozone Free
Lamp Wattage
200 W
Average life
1000 h
Bulb Diameter
18 mm
Effective Arc Size
0.5 x 1.5 mm
Horizontal Intensity
600 cd

Approximate Brightness
222 cd mm^-2
Approximate Flux
4500 lm
Lamp Current
8 A
Lamp Voltage
20-25 V

Type
Mercury-Xenon Lamp
Lamp Type
Hg(Xe), Ozone Free
Lamp Wattage
200 W
Average life
1000 h
Bulb Diameter
18 mm
Effective Arc Size
0.5 x 1.5 mm
Horizontal Intensity
600 cd

Approximate Brightness
222 cd mm^-2
Approximate Flux
4500 lm
Lamp Current
8 A
Lamp Voltage
20-25 V

Resources & Downloads

Literature

Light Sources(1.6 MB, PDF)
