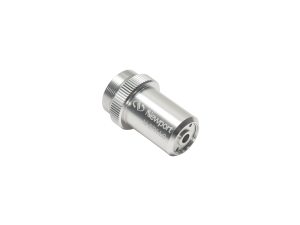

Ideal for UV Laser Applications

These objectives are ideal for use with UV lasers, such as 3rd and 4th harmonic Nd:YAG lasers. The rear conjugate of these UV fused silica objective lenses is corrected for infinity, ideal for interacting with collimated laser beams. The optical design is computer optimized to yield better than λ/5 total wavefront distortion from 350-1064 nm. The objectives feature our AR.10 UV antireflection coatings for 245-440 nm. The lenses are made with high purity UV Fused Silica glass with minimal autofluoresence and scattering, resulting in low attenuation and high damage threshold.

Typical UV transmission with AR.10 antireflection coating.

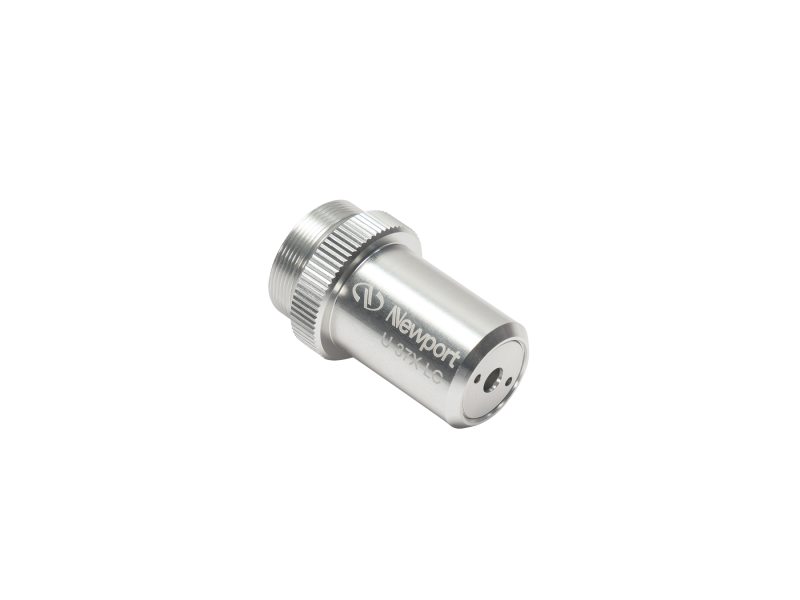

UV Grade Fused Silica Construction

The lenses are fabricated from UV grade fused silica for high power-handling capability. Damage threshold exceeds 8 J/cm2 with 12 nsec pulses at 1064 nm. The housing has a standard microscope objective thread for easy mounting.

OEM Versions

The optical design of these UV microscope objectives also can offer excellent performance in the visible and near-IR given the proper antireflection coating. The optical design is corrected for most aberrations for better than λ/5 wavefront distortion across the entire 245-1064 nm wavelength range. If your OEM application requires operation at other wavelengths, Contact Newport Sales for more information about antireflection coating options.
