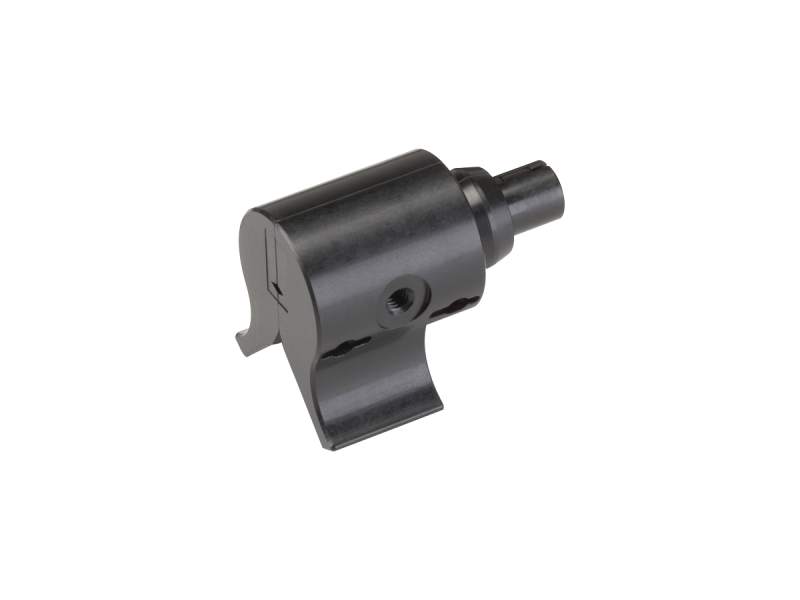

Our bare fiber holder is a cleverly designed fiber clamp that is used to hold 250 μm bare fibers without damaging the fiber. It in turn plugs into the 818-FA2 Bare Fiber Holder Mount which allows one to attach the assembly to the front end of the detector housing.
Bare fiber adapter for 918D and 818 Series photodiode sensors
Requires 818-FA2 adapter
Connects directly to 819C and 819D integrating spheres
Additional CAD file downloads are not available for this product.
sensor-bare-fiber-adapter - Drawings
Additional drawings are not available for this product.
Features
Measure Light from Optical Fibers
The FP3-FH1 Bare Fiber Holder is a cleverly designed fiber clamp that is used to hold 250 µm bare fibers without damaging it. It directly plugs into the 918D-IS series integrating sphere-based detectors. Combined with an 818-FA2 Adapter Mount, it can also be used for any 918D and 818 series photodiode power sensors.
Bare Fiber Holder for ILX Measurement Heads
The BF-820 Bare Fiber Holder is compatible with both ILX Lightwave® and Agilent adapter rings and is designed to hold and position a common telecom fiber. Inside the BF-820, opposing V-guides facilitate correct fiber positioning. Outside, textured finger grips enable single-handed maneuvering of the fiber holder into the meter. It requires CA120 for FMH series fiber optic sensors or AO120 for OMH series power and wavelength measurement heads.
