Compare Model Drawings, CAD & Specs Polarization Output Power Longitudinal Mode Beam Diameter (1/e2) Noise1 Availability Price
$8,423
In Stock
R-14309 500:1 35.0 mW 163 MHz 1.22 mm 1.0%
In Stock
$8,423
he ne laser with red 633 nm beam and helium neon power supply
$1,550
2 Weeks
R-30025 500:1 1.5 mW 714 MHz 0.64 mm 5.0%
2 Weeks
$1,550
he ne laser with red 633 nm beam and helium neon power supply
$1,536
In Stock
R-30988 Random 2.0 mW 566 MHz 0.81 mm 1.0%
In Stock
$1,536
he ne laser with red 633 nm beam and helium neon power supply
$1,550
1 Week
R-30989 500:1 2.0 mW 566 MHz 0.81 mm 1.0%
1 Week
$1,550
he ne laser with red 633 nm beam and helium neon power supply
$1,550
4 Weeks
R-30990 Random 5.0 mW 441 MHz 0.80 mm 1.0%
4 Weeks
$1,550
he ne laser with red 633 nm beam and helium neon power supply
$1,550
In Stock
R-30991 500:1 5.0 mW 441 MHz 0.80 mm 1.0%
In Stock
$1,550
he ne laser with red 633 nm beam and helium neon power supply
$1,950
In Stock
R-30992 Random 12.0 mW 316 MHz 0.88 mm 1.0%
In Stock
$1,950
he ne laser with red 633 nm beam and helium neon power supply
$2,190
In Stock
R-30993 500:1 12.0 mW 316 MHz 0.88 mm 1.0%
In Stock
$2,190
he ne laser with red 633 nm beam and helium neon power supply
$3,000
In Stock
R-30995 500:1 17.0 mW 252 MHz 0.98 mm 1.0%
In Stock
$3,000
he ne laser with red 633 nm beam and helium neon power supply
$1,418
In Stock
R-31005 Random 1.5 mW 1082 MHz 0.57 mm >5.0%
In Stock
$1,418
he ne laser with red 633 nm beam and helium neon power supply
$1,550
In Stock
R-31007 500:1 0.8 mW 1082 MHz 0.57 mm 1.0%
In Stock
$1,550
he ne laser with red 633 nm beam and helium neon power supply
$1,368
1 Week
R-31008 Random 0.5 mW 1082 MHz 0.57 mm 1.0%
1 Week
$1,368
he ne laser with red 633 nm beam and helium neon power supply
$2,975
In Stock
R-39635 Random 17.0 mW 252 MHz 0.98 mm 1.0%
In Stock
$2,975

All red HeNe lasers have a 633 nm center wavelength.

Features

633 nm Output Power from 0.5 mW to 35 mW

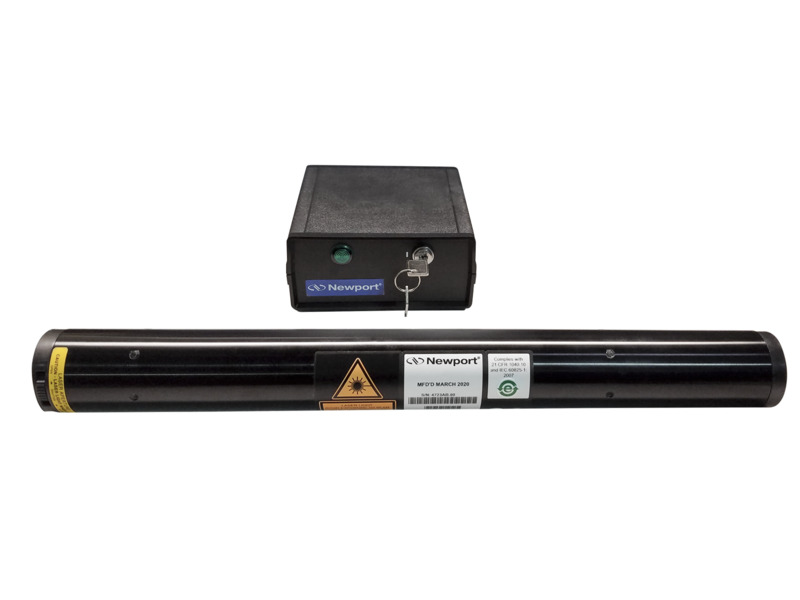

Our 35 mW Helium Neon laser is one of the most powerful commercial HeNe lasers available. We also offer a wide variety of lower power, and lower cost HeNe lasers to suit a wide variety of applications. The power supply is included with the red HeNe laser head.

HeNe Laser Mounting

ULM Series cylindrical laser mounts attach to 340-RC and 370-RC rod clamps and provide a convenient way to attach these HeNe lasers to Newport stages, tables, or breadboards.

Random or 500:1 Polarization

We have models whose outputs are either polarized or randomly polarized. Due to the random fluctuation of the polarization state of the beam, it is not recommended to use a polarizer with a random polarization laser for applications where polarized light is required.

Optimized Cavity Mirror Performance

Utilizing enhanced designs and superior optical components these lasers deliver unsurpassed operational stability and lifetimes. The mirror quality and performances are optimized to result in the highest quality HeNe lasers available in the market. These high-performance lasers are supported by a one-year warranty and are available off-the-shelf.

HeNe Laser Advantages

HeNe Lasers use a mixture of Helium and Neon gas as the gain medium excited by an electrical discharge. Helium Neon gas lasers are based on a mature and well understood technology that offers a cost effective laser source with fundamental Gaussian beam quality, and ease of use. HeNe lasers offer a stable optical output over lifetimes greater than 20,000 hours and are insensitive to optical feedback.

Applications

  • Laser Alignment
  • Metrology
  • Particle Measurement
  • Velocimetry
  • Flow Cytometry
  • Confocal microscopy
